Actuator with IC Advanced - with Feedback and End Stop Signal
I/O specifications:
Input/Output
Violet
Analogue feedback (4-20 mA):
(continued)
Configure any high/low combination between 4-20 mA
All absolute value feedbacks (0-10 V, PWM and 4-20 mA)
White
Signal GND
•
Current cut-offs should not be used as stop function! This might damage the actuator. Current cut-offs should only be used in
emergencies!
•
Current cut-off limits are not proportional with the load curves of the actuator. This means that the current cut-offs cannot be used as
load indicator.
•
There are tolerances on the spindle, nut, gear wheels etc. and these tolerances will have an influence on the current consumption for the
specific actuator.
Correct wiring of Power GND and Signal GND for IC Advanced:
Please note: This section only applies for 0-10 V, Hall and PWM feedback options.
Specification
Page 34 of 80
Comments
Tolerances +/- 0.2 mA
Transaction delay 20 ms
Linear feedback 0.5 %
Output: Source
Serial resistance:
12 V max. 300 ohm
24 V max. 900 ohm
Standby power consumption:
12 V, 60 mA
24 V, 45 mA
It is recommendable to have the actuator to activate its
limit switches on a regular basis, to ensure more
precise positioning

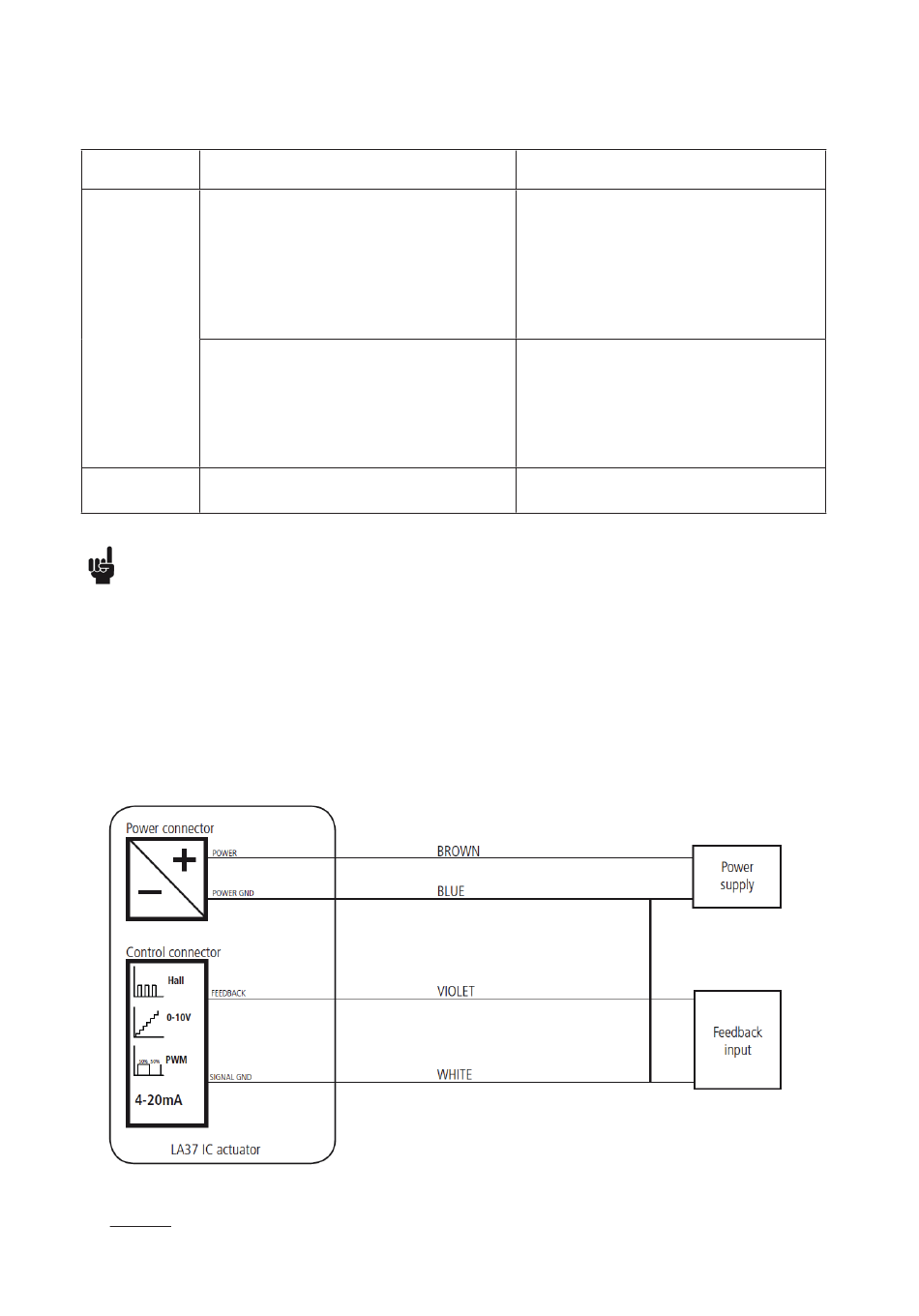

For correct wiring of Power GND and Signal GND - please
see figure below
