Actuator with End Stop Signal output

End Stop Signal output

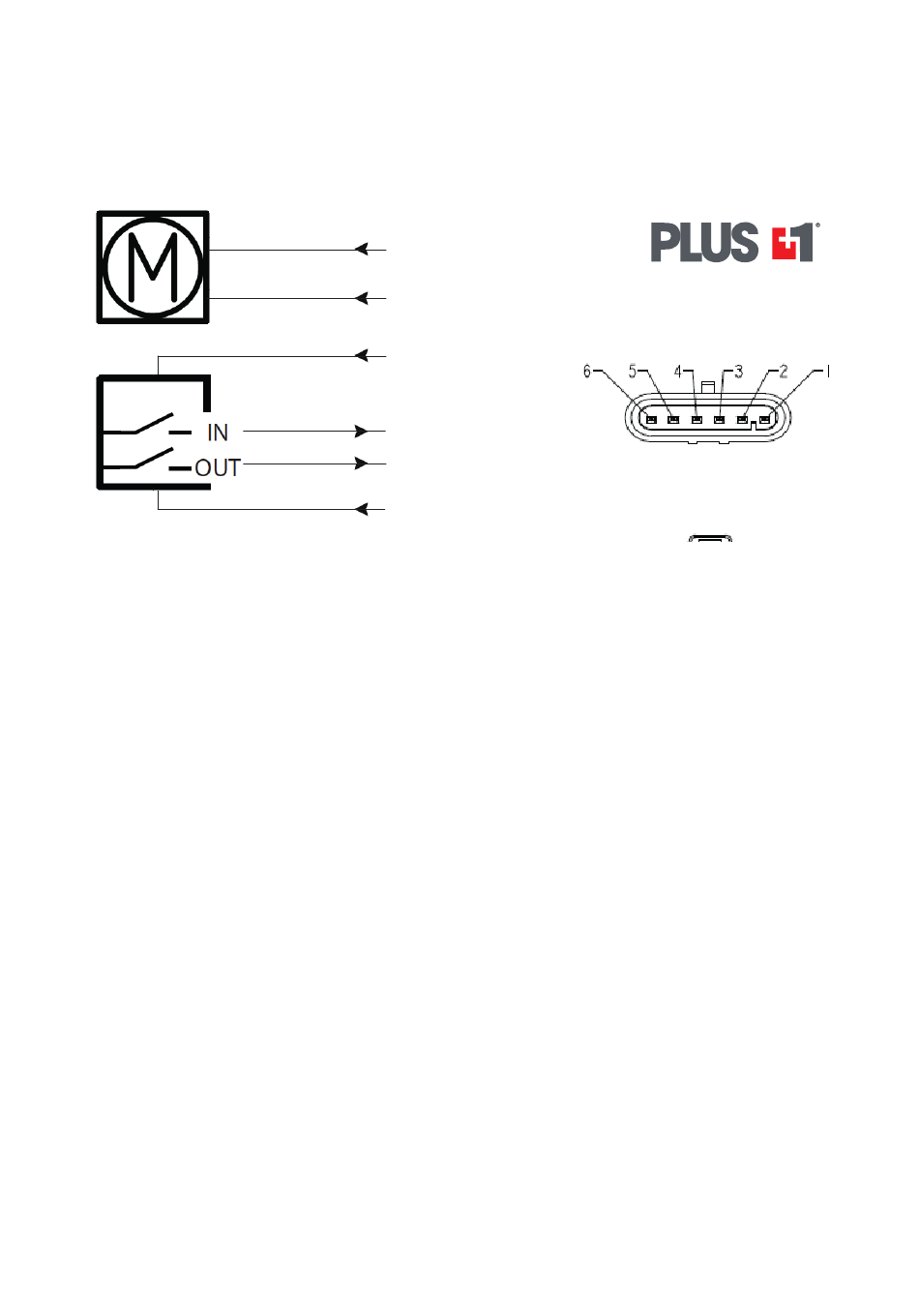

Connection diagram:
Fig. 2 : 33xxxxxxxxxxxx0x=xxxxx1xxxxxxx
33XXXXXXXXXXXX0X=XXXXX1XXXXXXX
*YELLOW/GREEN:
End Stop Signals out are NOT potential free!
If you wish to use the End Stop Signals, you will have to keep power on the brown, blue, red and black wires, other-
wise the signal will be lost.
BROWN
2
BLUE
1
+
RED 2
5
YELLOW
GREEN
6
BLACK 1
-
5
Page 13 of 80
2019 © LINAK A/S
Powered by Danfoss
AMP
Standard signal cabel
DEUTSCH
Standard signal cabel
