Actuator with End Stop Signal output

Endstop signal output

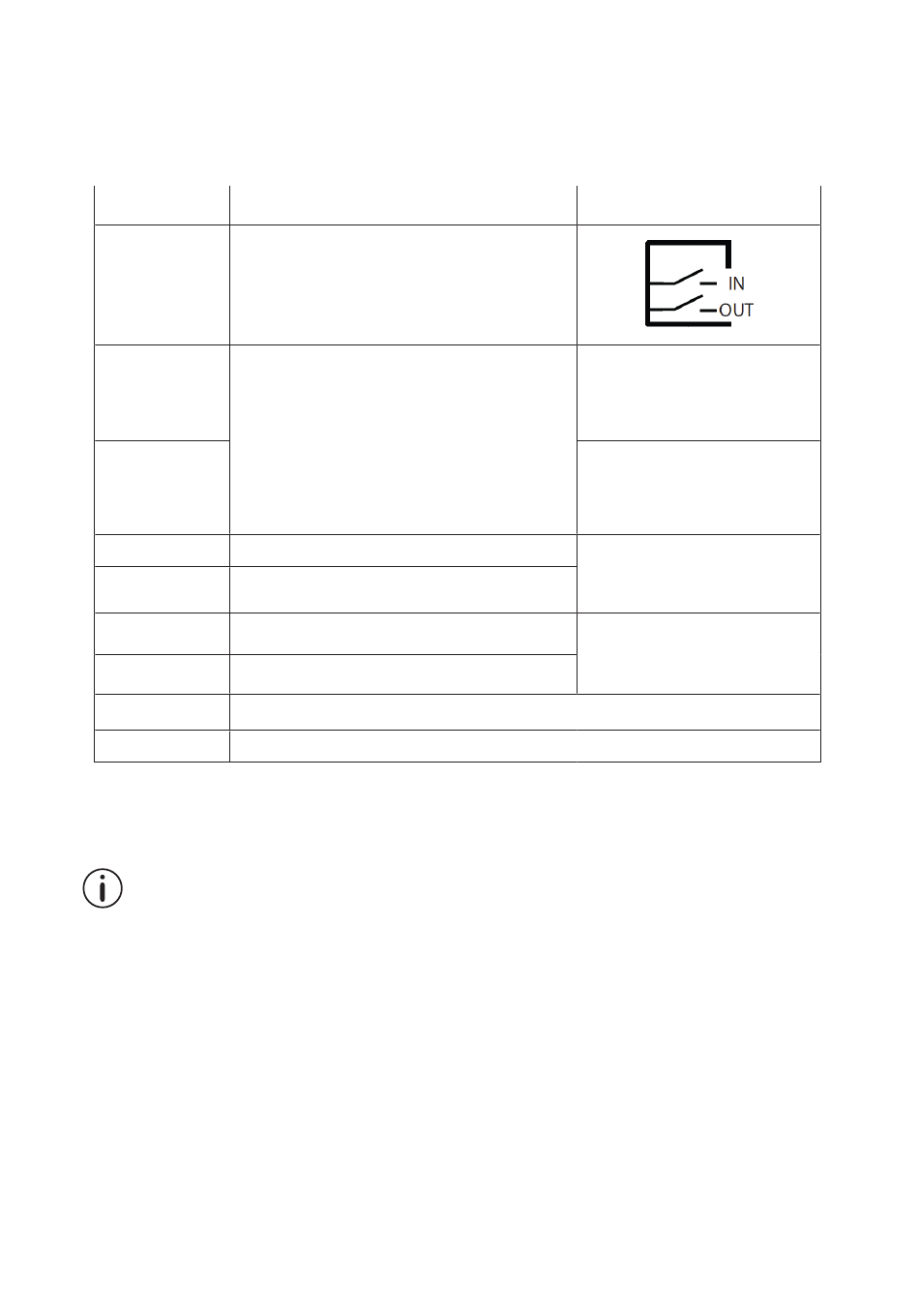

I/O specifications:
Input/Output
Description The actuator can be equipped withelectronically controlled
Endstop Signals out.
Brown 12 or 24 VDC (+/-)
12 V ± 20 %
24 V ± 10 %
Under normal conditions:
12 V, max. 13 A depending on load
Blue
24 V, max. 9 A depending on load
Red Signal power supply (+) 12-24 VDC
Black Signal power supply GND (-)
Green Endstop signal out
Yellow Endstop signal in
Violet Not to be connected
White Not to be connected
Tip: If you wish to use the endstop signals, you will have to keep power on the brown, blue, red and black wires, otherwise the
signal will be lost.
Specification
5
Page 14 of 80
2021 © LINAK A/S
Comments
To extend actuator:
Connect Brown to positive
To retract actuator:
Connect Brown to negative
To extend actuator:
Connect Blue to negative
To retract actuator:
Connect Blue to positive
Current consumption:
Max. 40 mA, also when the
actuator is not running
Output voltage min. VIN - 2 V
Source current max. 100 mA
NOT potential free
