Actuator with IC Advanced - with Feedback and End Stop Signal
I/O specifications:
Input/Output
Violet
Analogue feedback (4-20 mA):
(continued)
Configure any high/low combination between 4-20 mA
All absolute value feedbacks (0-10 V, PWM and 4-20 mA)
White
Signal GND
•
Current cut-offs should not be used as stop function! This might damage the actuator. Current cut-offs should only be used in
emergencies!
•
Current cut-off limits are not proportional with the load curves of the actuator. This means that the current cut-offs cannot be
used as load indicator.
•
There are tolerances on the spindle, nut, gear wheels etc. and these tolerances will have an infl uence on the current consump-
tion for the specifi c actuator.
Correct wiring of Power GND and Signal GND for IC Advanced:
Please note: This section only applies for 0-10 V, Hall and PWM feedback options.
Specification
16
Page 31 of 80
2021 © LINAK A/S
Comments
Tolerances +/- 0.2 mA
Transaction delay 20 ms
Linear feedback 0.5 %
Output: Source
Serial resistance:
12 V max. 300 ohm
24 V max. 900 ohm
Standby power consumption:
12 V, 60 mA
24 V, 45 mA
It is recommendable to have the actuator to activate its
limit switches on a regular basis, to ensure more
precise positioning

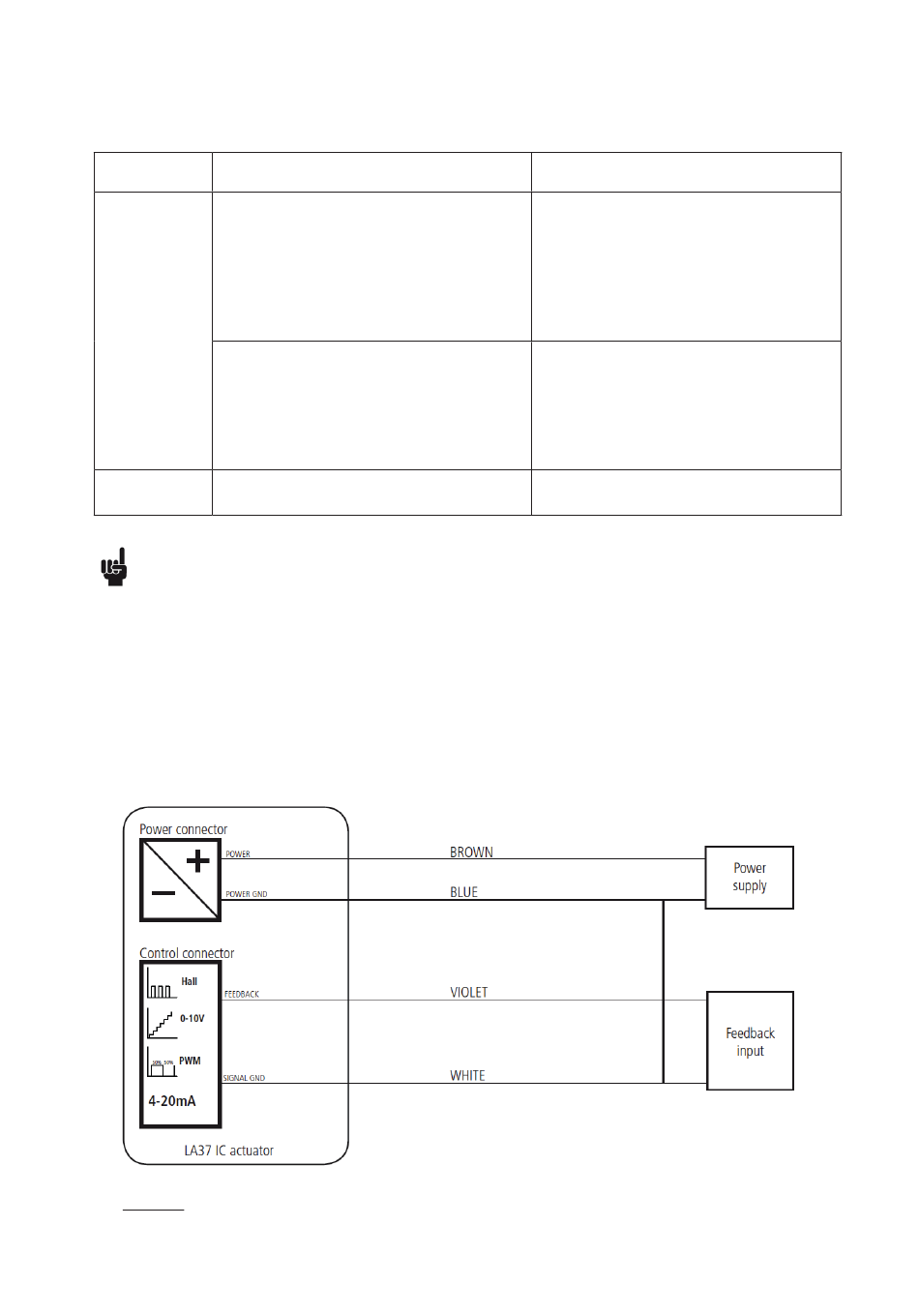

For correct wiring of Power GND and Signal GND - please
see figure below
