Linak TECHLINE LA33 User Manual page 16

Actuator with relative positioning - Single Hall
Relative positioning - Single hall
I/O specifications:
Input/Output
Description The actuator can be equipped with Single hall that gives a relative
positioning feedback signal when the actuator moves.
Brown 12 or 24 VDC (+/-)
12 V ± 20 %
24 V ± 10 %
Under normal conditions:
12 V, max. 13 A depending on load
Blue
24 V, max. 9 A depending on load
Red Signal power supply (+) 12-24 VDC
Black Signal power supply GND (-)
Green Not to be connected
Yellow Not to be connected
Violet Single Hall output (PNP)
Movement per Single Hall pulse:
33090: Actuator = 0.3 mm per count
33150: Actuator = 0.5 mm per count
33200: Actuator = 1.1 mm per count
Frequency:
Frequency is up to 125 Hz on Single Hall output depending on load and
spindle.
Overvoltage on the motor can result in shorter pulses.
Input:
White Not to be connected
Specification

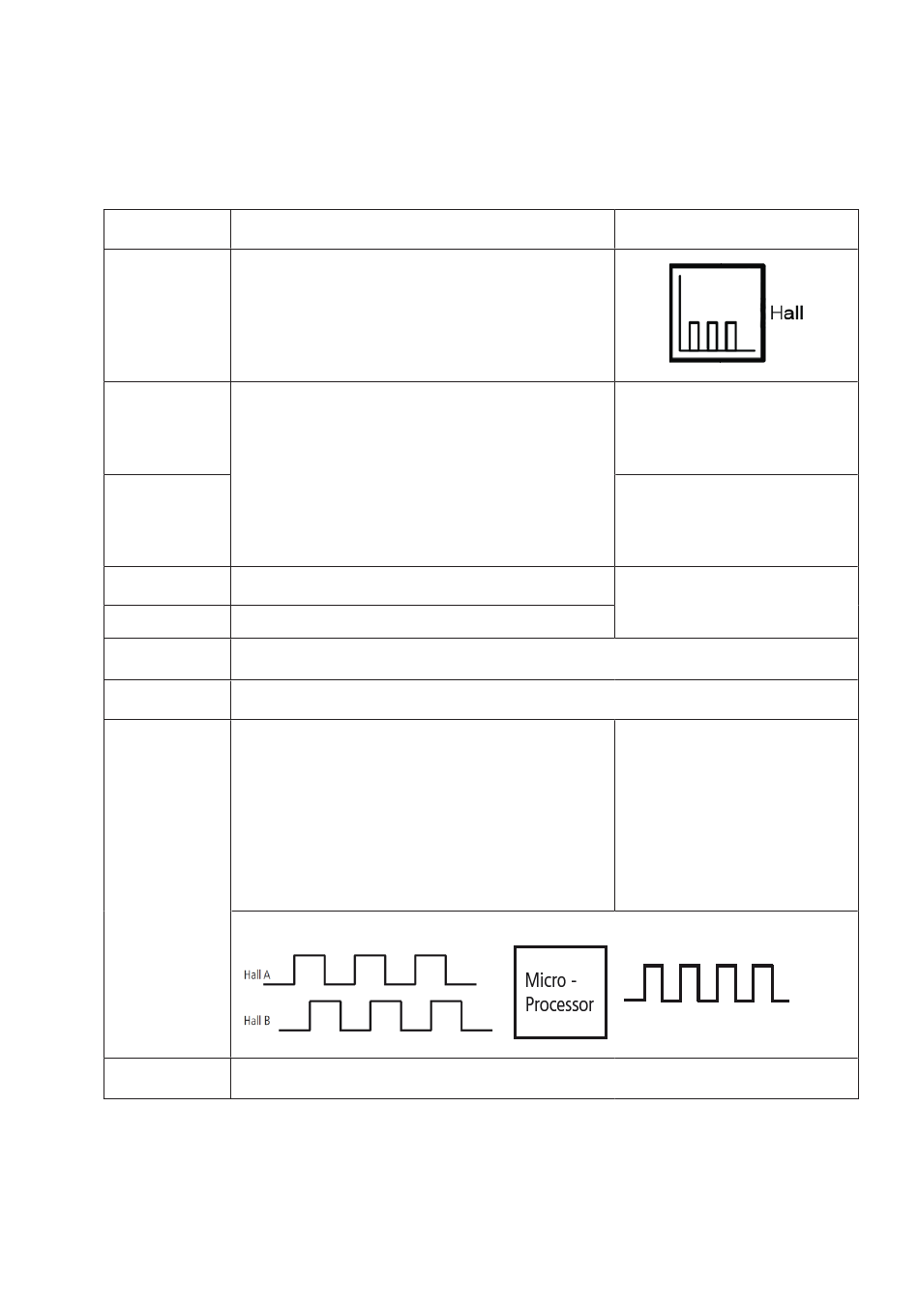

Single hall output:
8
Page 16 of 80
2021 © LINAK A/S
Comments
To extend actuator:
Connect Brown to positive
To retract actuator:
Connect Brown to negative
To extend actuator:
Connect Blue to negative
To retract actuator:
Connect Blue to positive
Current consumption:
Max. 40 mA, also when the
actuator is not running
Output voltage min. V IN - 2 V
Max. current output: 12 mA
Max. 680 nF
N.B. For more precise measurements, please
contact LINAK A/S.
Low frequency with a high load.
Higher frequency with no load.
