Actuator with IC Advanced - with Feedback and End Stop Signal
IC Advanced with Feedback and End Stop Signal
I/O specifications:
Input/Output
Description

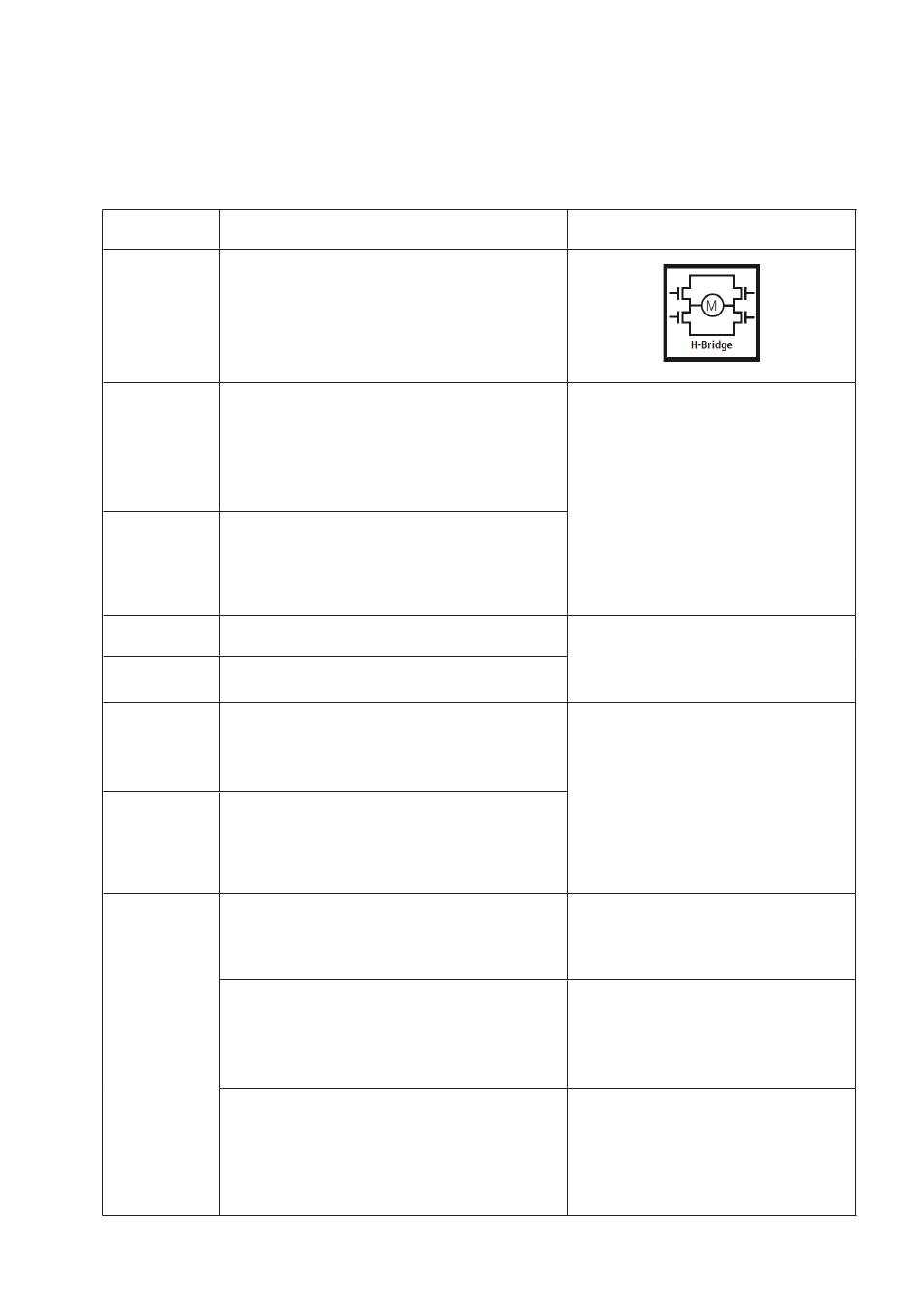

Easy to use interface with integrated power electronics (H-bridge).
The actuator can also be equipped with electronic circuit that
gives an absolute or relative feedback signal.
The version with "IC option" cannot be operated with PWM
(power supply).
Brown
12-24 VDC + (VCC)
Connect Brown to positive
12 V ± 20 %
24 V ± 10 %
12 V, max. 13 A - current cut off @ 15 A
24 V, max. 9 A - current cut off @10 A
Blue
12-24 VDC - (GND)
Connect Blue to negative
Red
Extends the actuator
Black
Retracts the actuator
Green
Endstop signal out
Yellow
Endstop signal in (Option 1)
Constantly high (Option 2)
Violet
Analogue feedback (0-10 V):
Configure any high/low combination
between 0-10 V
Single Hall output (PNP)
Movement per Single Hall pulse:
LA371C: Actuator = 0.1372 mm per count
Frequency is 14-26 Hz on Single Hall output depending on load.
Overvoltage on the motor can result in shorter pulses
Digital output feedback PWM:
Configure any high/low combination
between 0-100 %
Specification
15
Page 30 of 80
2021 © LINAK A/S
Comments
Note:
Do not change the power supply polarity on the
brown and blue wires!
Power supply GND (-) is electrically connected to the
housing
If the temperature drops below 0 °C, all current limits
will automatically increase to:
20 A for 12 V
15 A for 24 V
On/off voltages:
> 67 % of V IN = ON
< 33 % of V IN = OFF
Input current: 10 mA
Output voltage min. V IN - 2 V
Source current max. 100 mA
Endstop signals are NOT potential free.
Endstop signals can be configured with BusLink
software according to any position needed.
When configuring virtual endstop, it is not necessary
to choose the position feedback.
EOS and virtual endstop will work even when
feedback is not chosen.
Ripple max. 200 mV
Transaction delay 20 ms
Linear feedback 0.5 %
Max. current output. 1 mA
Output voltage min. V IN - 2 V Max.
current output: 12 mA
Max. 680 nF
Output voltage min. V IN - 2 V
Frequency: 75 Hz ± 10 Hz as standard, but this can
be customised.
Duty cycle: Any low/high combination between 0 and
100 percent.
Open collector source current max. 12 mA
