Actuator with CANbus J1939:

CANopen

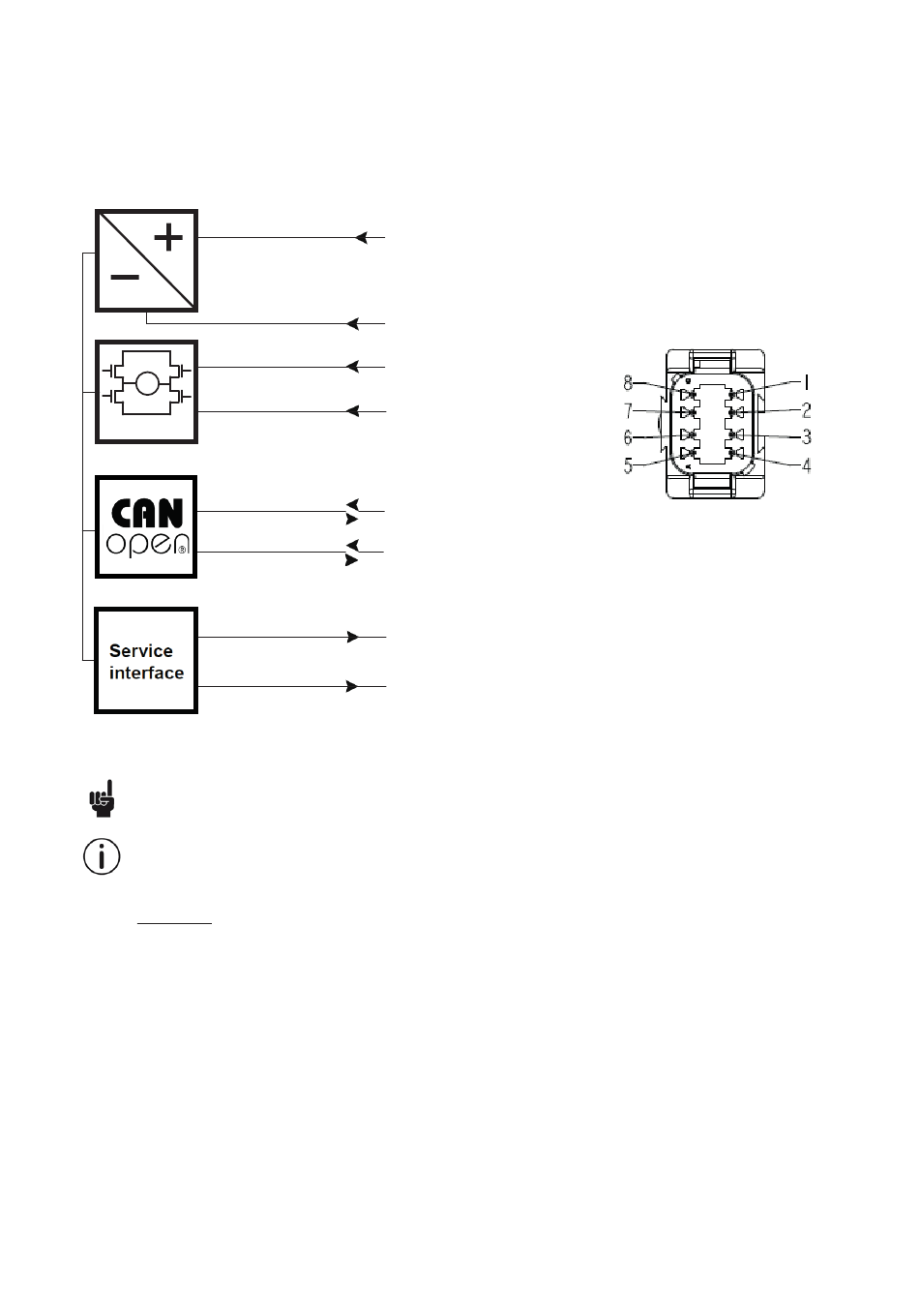

Connection diagram:
Fig. 17 : 33xxxxxxxxxx3xxx=xxxxx008xxxxx
33XXXXXXX03XXX=XXXXX008XXXXX
INWARDS
M
OUTWARDS
H-Bridge
CAN_H
CAN_L
DATA
DATA GND
Please be aware that if the power supply is not properly connected, you might damage
the actuator!
The BusLink software tool is available for CANbus actuators and can be used for:
Diagnostics, manual run and configuration
The newest version is available online at LINAK.COM/TECHLINE
Please note: The BusLink configuration cable must be purchased seperately
Item number for BusLink cable kit: 0367997 (adapter + USB2Lin)
2
BROWN
1
BLUE
BLACK 1
RED 2
YELLOW 5
GREEN 6
VIOLET 4
WHITE 3
19
Page 57 of 80
2019 © LINAK A/S
DEUTSCH
Standard signal cabel
