Electrical Connections

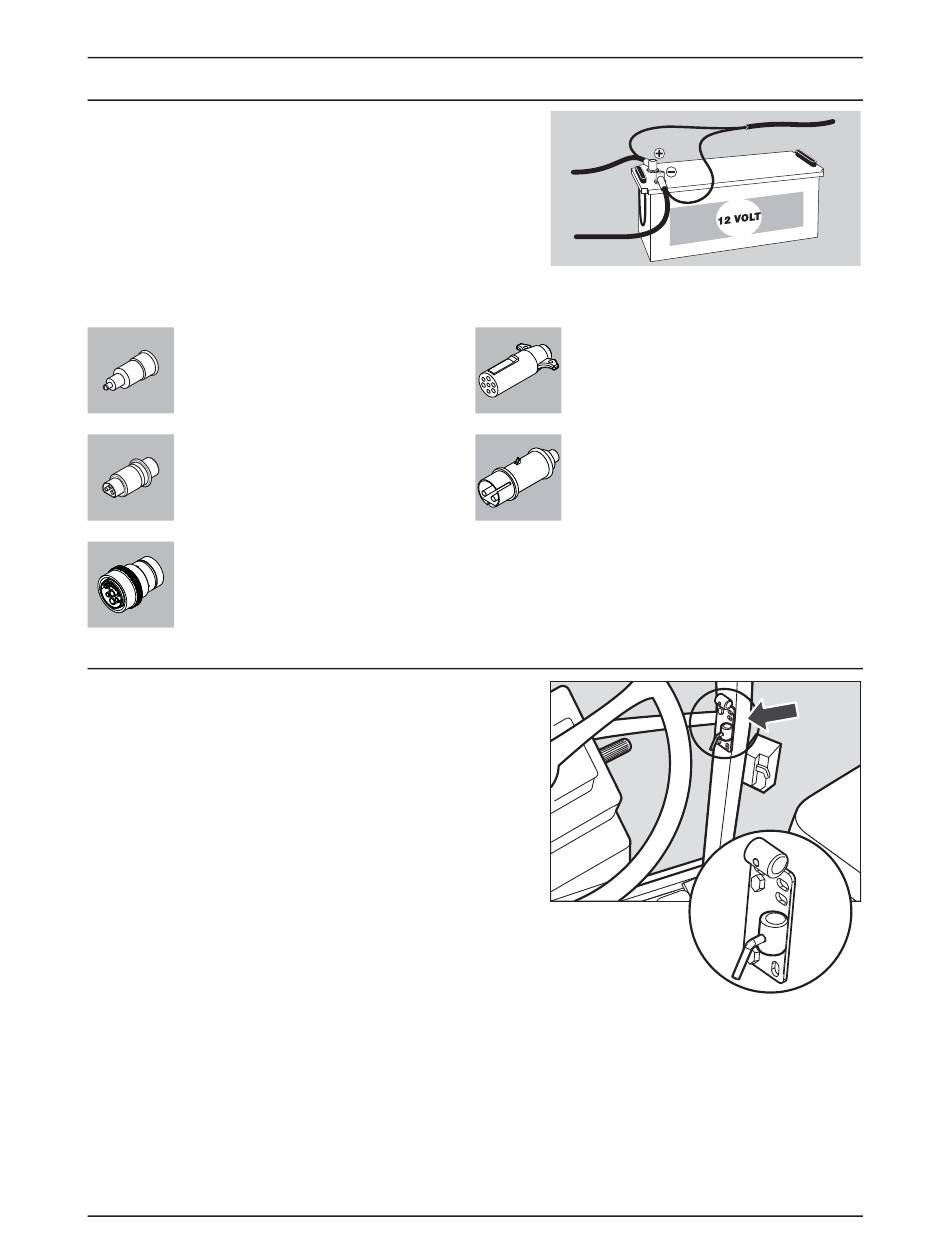

Power supply

Power requirement is 12V DC. Always note polarity! For proper function
of the electric equipment, the wires must have the following
recommended cross sectional areas and correct fuses to ensure a
sufficient power supply. The supplied power connectors follow the
standard of most newer tractors. If using a tractor with another power
connector, it is necessary to disassemble the connector and fit it to the
existing tractor connector.
The number and kind of connectors can vary on a specific sprayer,
depending on its equipment.
LIGHTER CONNECTOR
Spray control unit requires:
Wire 2.5 mm², Fuse 10 Amp
Hydraulic control unit requires:
Wire 4.0 mm², Fuse 16 Amp
JOBCOM CONNECTOR
The unit requires:
Wire 6.0 mm², Fuse 25 Amp
ISO POWER CONNECTOR

Control units

Find a suitable place in the tractor's cabin to secure the control units
from movement. Best recommended placement is to the right of the
driver seat. The supplied bracket will fit most tractors. Threaded
mounting holes may be hidden behind front corner cover.
4 - Sprayer setup
7 POLE TRAFFIC LIGHT CONNECTOR
WORKING LIGHT CONNECTOR
The unit requires:
Wire 10.0 mm², Fuse 30 Amp
43
