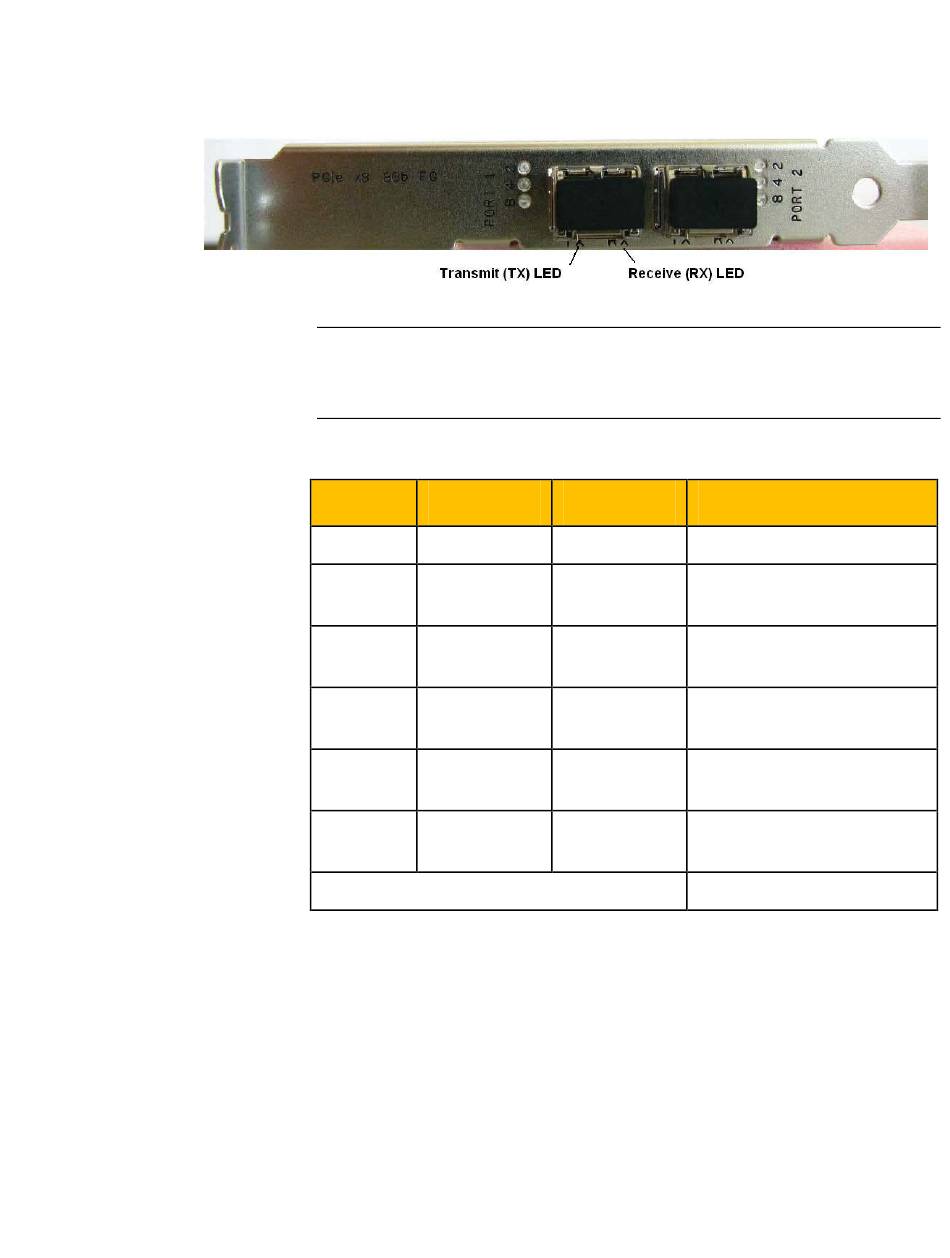

NetBackup 5220 2-port 8Gb FC HBA

2-port 8Gb FC HBA LED descriptions

4-Port GE NIC LEDs

The model of the 4-port GE (Gigabit Ethernet) NIC is Intel E1G44HT. The 4-port
GE NIC provides four GE network ports for backup or replication.
Note: Each port on the 8Gb FC HBA card shows three LEDs, labeled "8", "4"
and "2." These numbers correspond to the rate of data transfer (8Gbit/s,
4Gbit/s or 2Gbit/s).
8/Yellow 4/Green
Off Off
Off Off
Off On/Flashing
On/ Off
Flashing
On On
Flashing Flashing
Flashing alternately
2/Amber Description
Off Power off.
On/Flashing Data is being transferred at a
rate of 2 Gbit/s.
Off Data is being transferred at a
rate of 4 Gbit/s.
Off Data is being transferred at a
rate of 8 Gbit/s.
On Power on (before firmware
initialization).
Flashing Power on (after firmware
initialization).
Firmware error.
