Installing the Device
2.5 Grounding the Device
To mount the device to a DIN rail, do the following:
1.
2.
2.5
Grounding the Device
The RP110 chassis ground terminal uses a #6-32 screw. It is recommended to
terminate the ground connection with a #6 ring lug and torque it to 8.3 N·m (6
lbf·in).
IMPORTANT
The user is responsible for the operating environment of the device, including
maintaining the integrity of all protective conductor connections and checking
equipment ratings. Make sure to review all operating and installation instructions
before commissioning or performing maintenance on the device.
8
Align the slot in the bracket with the DIN rail.
1
DIN Rail
1
DIN Rail Bracket
2

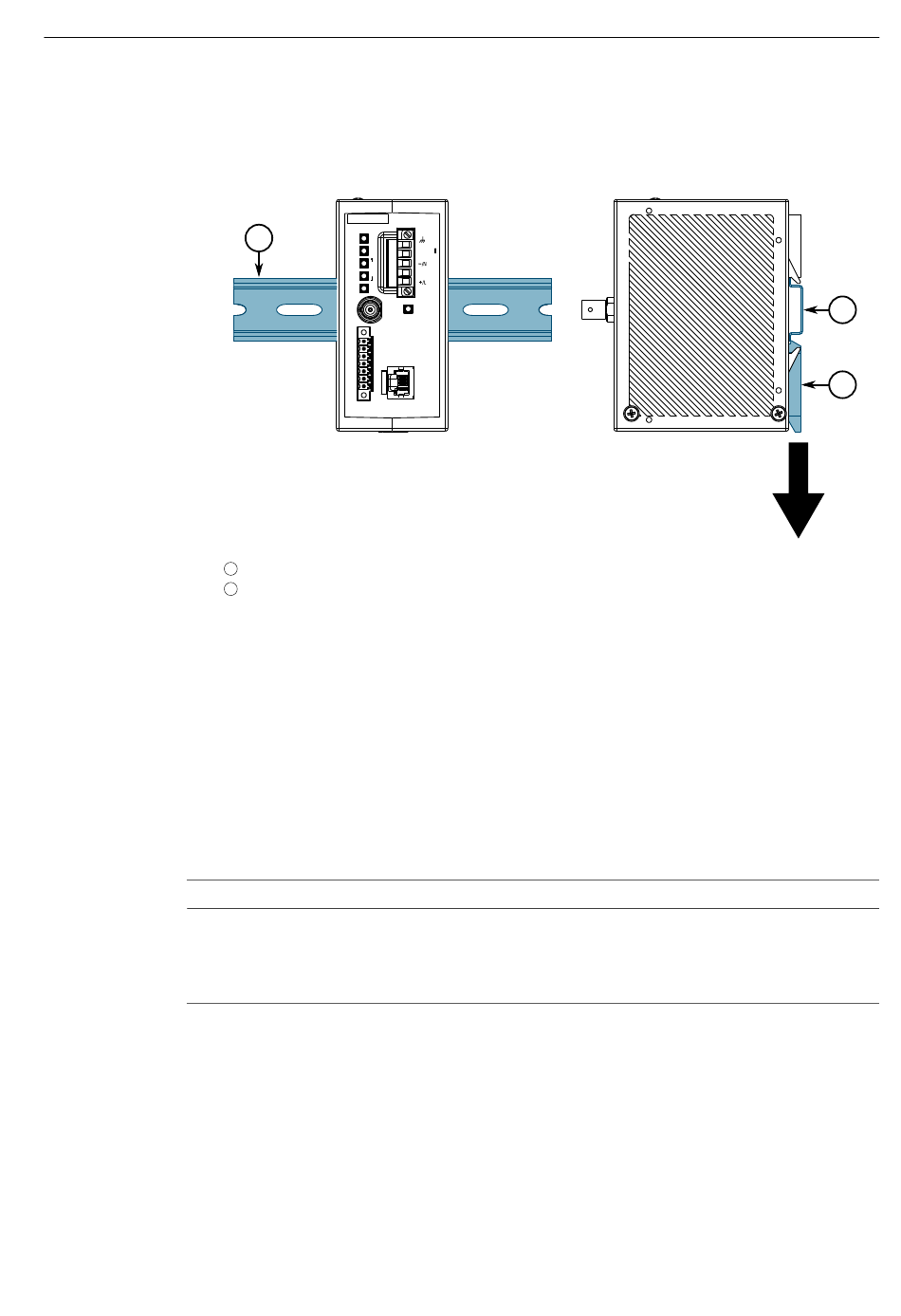

Figure 2.2
DIN Rail Mounting
Pull the release on the bracket down and slide the device onto the DIN rail. Let
go of the release to lock the device in position.
RUGGEDCOM RP110
Installation Manual, 01/2021, C79000-G8976-1012-04
