15
5.9
Optional 66 Block Connector
The 50-pin connectors on the back panel of the NetGuardian can be connected to the optional 25-pair 66 Block
Connector (part number D-PR-966-10A-00).
Note: If connecting to a 50-pair split block, all connections should be made on the two pin columns closest to the
right-hand side of the block or bridge clips should be installed.

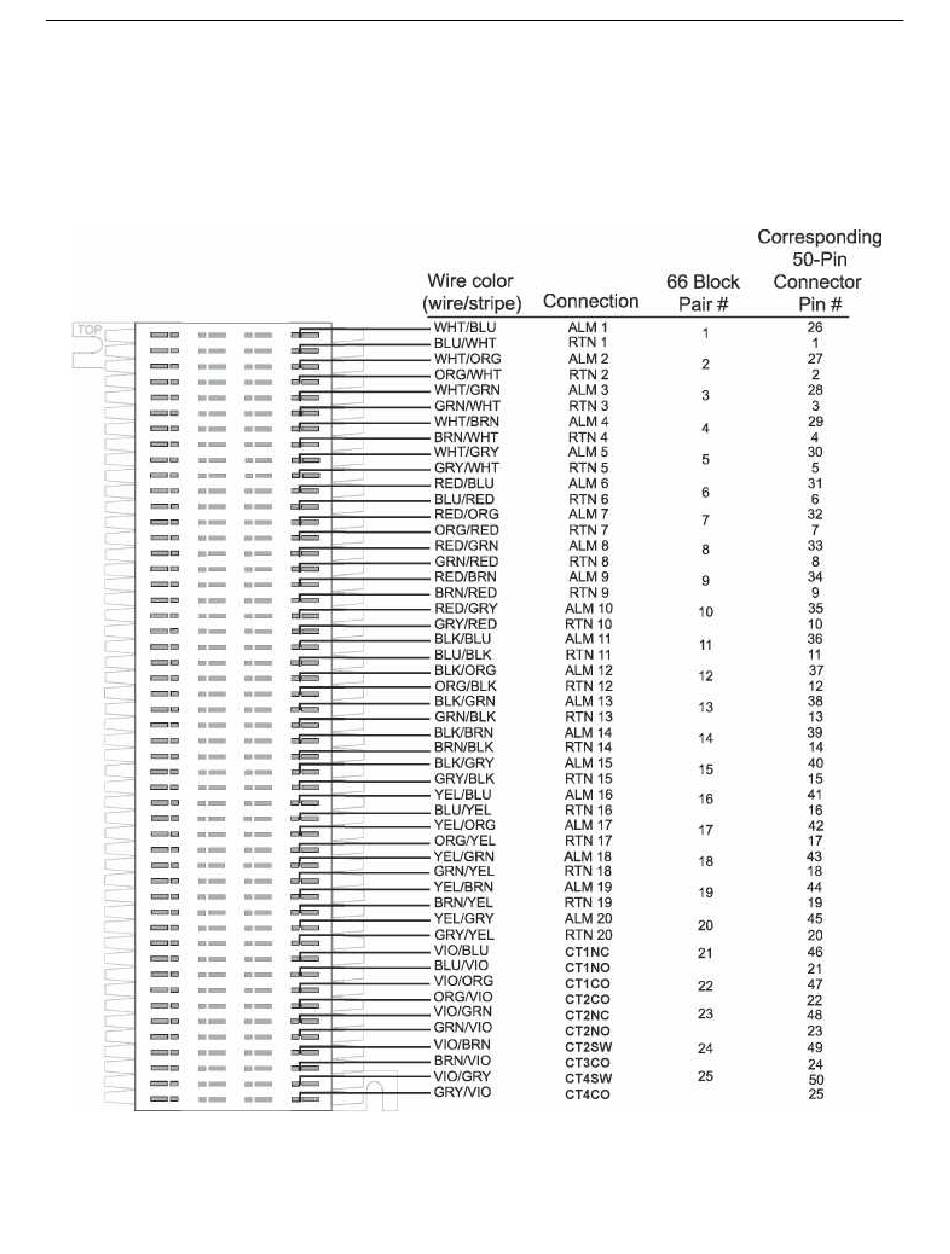

Optional 66 block pinout for Discretes 1–20
