27
6.11
Optional 66 Block Connector (832A)
Both of the 50-pin connectors on the back panel of the NetGuardian can be connected to the optional 25-pair 66
Block Connector (part number D-PR-966-10A-00). For 66 block pinout and color code information, see Figure
6.11.1 for Discretes 1–24 and Figure 6.11.2. for Analogs 1–6/Discretes 25–32/Relays 1–8.
Note: If connecting to a 50-pair split block, all connections should be made on the two pin columns closest to the
right-hand side of the block or bridge clips should be installed.

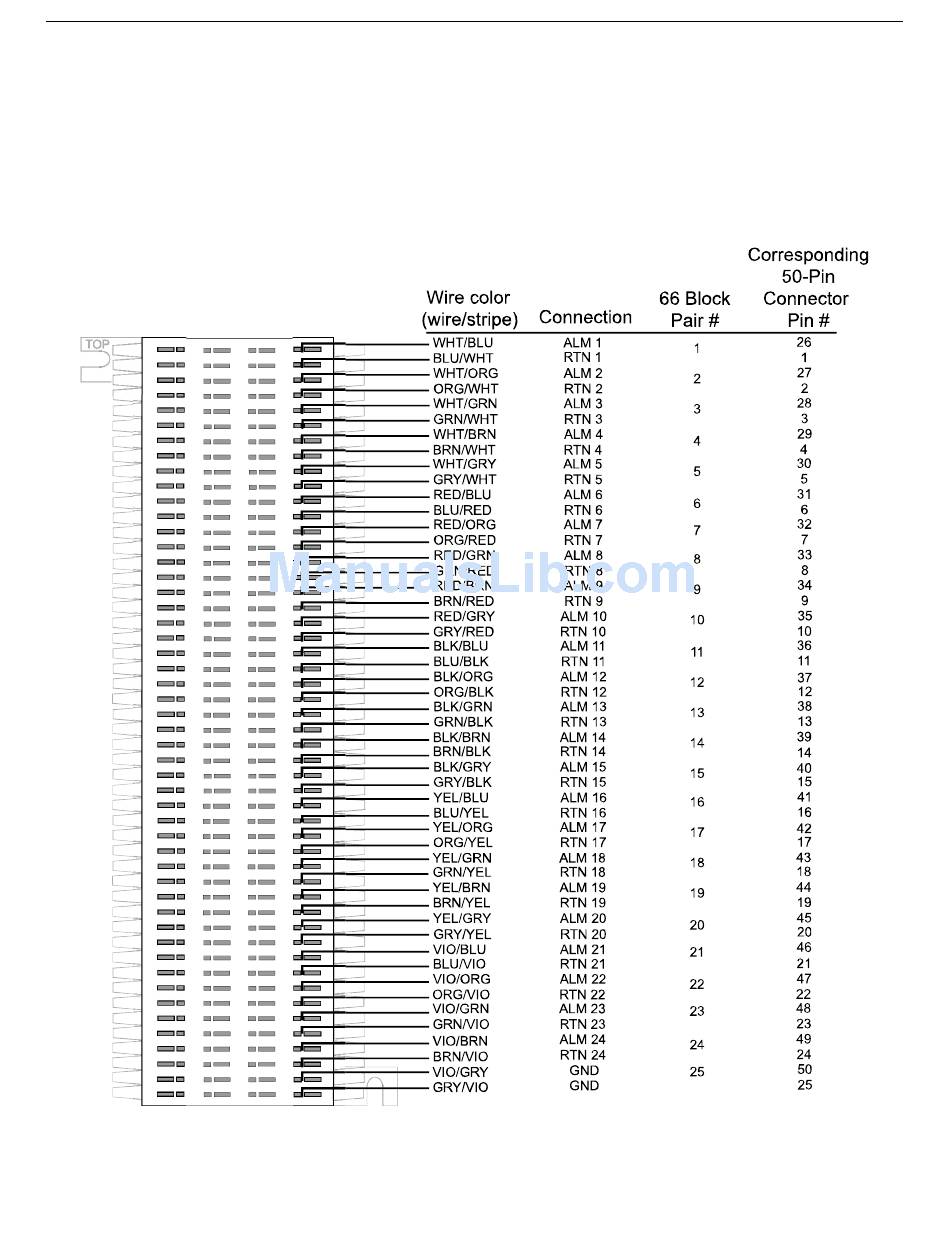

Fig 6.11.1. Optional 66 block pinout for Discretes 1–24
