13.3.12.1 Integrated Temperature and Battery Sensor (Optional)

The optional integrated temperature and battery sensor allows the user to monitor surrounding temperature as well
as the unit's current draw. This is only available if the NetGuardian was purchased with this option. If you are
using the temperature or battery sensor, you must dedicate an analog port to each one (see user manual for
connection information).
CAUTION: Ambient room temperature will be cooler than the NetGuardian integrated temperature.
Temperature Sensor
1. In the field enter a description in the analog channel you are using for the integrated temperature
Description
sensor. 7=internal and 8=external.

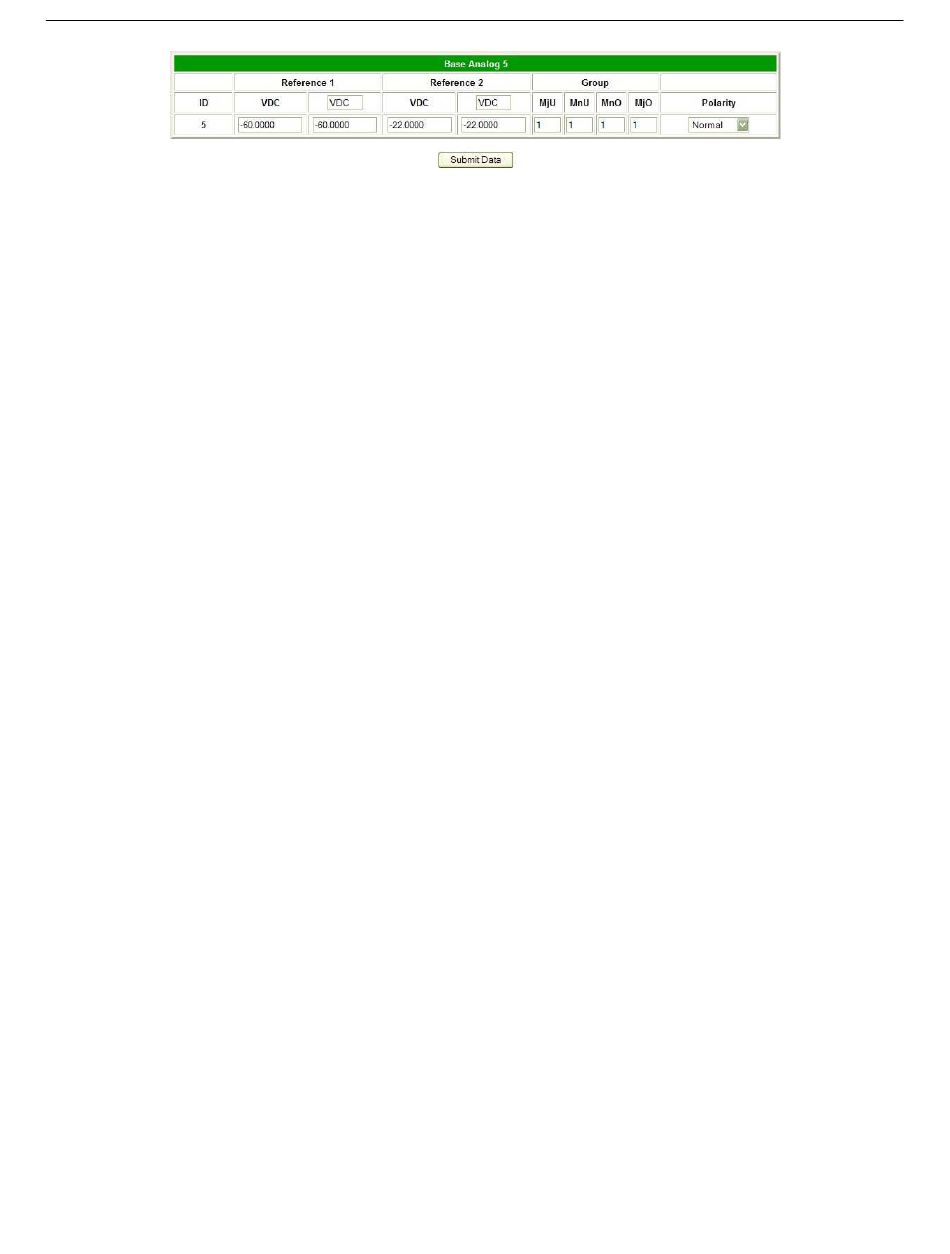

2. Under the column, click on the abbreviated units link (e.g VDC, RH, F, etc.) to convert the reference
Unit
units and the native units for that analog channel, see Figure 2.24.
3. In enter
Reference 1
already contain the abbreviation VDC), see Figure 2.24. This enables the NetGuardian's pre-configured
temperature settings. Repeat this step for
4. Set your desired thresholds.
Battery Sensor
1. In the field enter a description in the analog channel you are using for the integrated current
Description
sensor. 5= Battery A and 6= Battery B.
2. Set your desired thresholds. Be sure to set your thresholds in reference to your NetGuardian's power input
(e.g. –24 VDC, –48 VDC, or wide range).

13.3.12.2 Analog Polarity Override

: external temperature sensor in fahrenheit or iC for celsius
eF
: integrated temperature sensor in fahrenheit or iC for celsius
iF
: override polarity VDC to positive
oV+
: override polarity VDC to negative
oV-
If you have a positive powered NetGuardian, you may want to use this feature if you are using the internal battery
sensor. The Web Browser Interface will override
uncommon looking tag while in monitor mode.
Analog Accuracy:
+/- 1% of analog range.
(integrated Fahrenheit or external Fahrenheit) in the box next to
iF
Reference 2.
oV+
and tags and show VDC. So you won't have to view an
oV-
