5.6.3 Optional Wire Wrap Back Panel

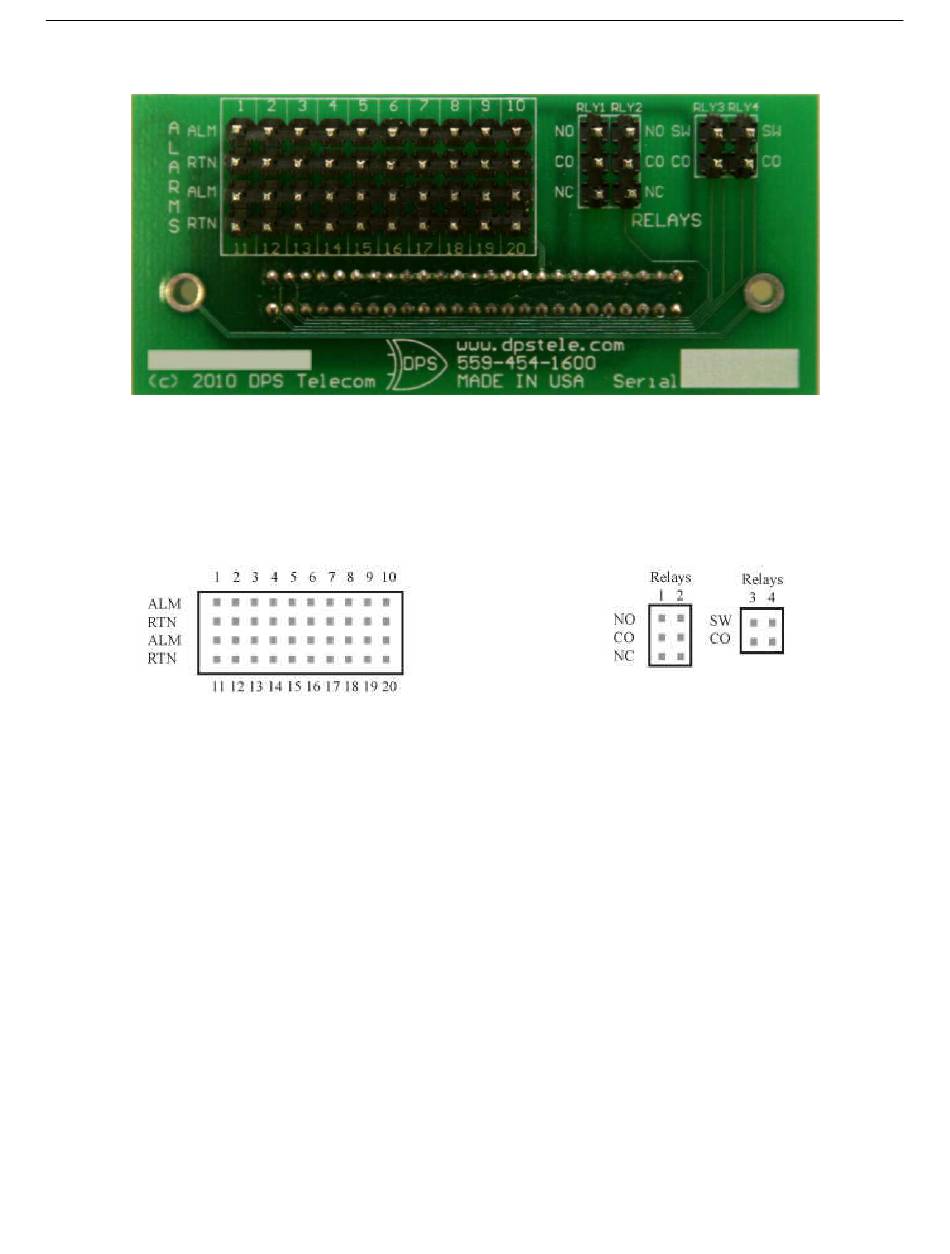

The Wire Wrap attachment for the NetGuardian 420
The optional wire wrap attachment provides wire-wrap connections for the NetGuardian 420's alarms and control
relays. To connect alarms and relays to the back panel:
1. Connect the panel directly to the unit's rear amphenol.
2. Connect discretes and control relays to the appropriate pins.
Pinout for Wire Wrap Control Relays
Pinout for the Wire Wrap Discrete Alarms
