12.2.1.2 Monitoring Ping Targets

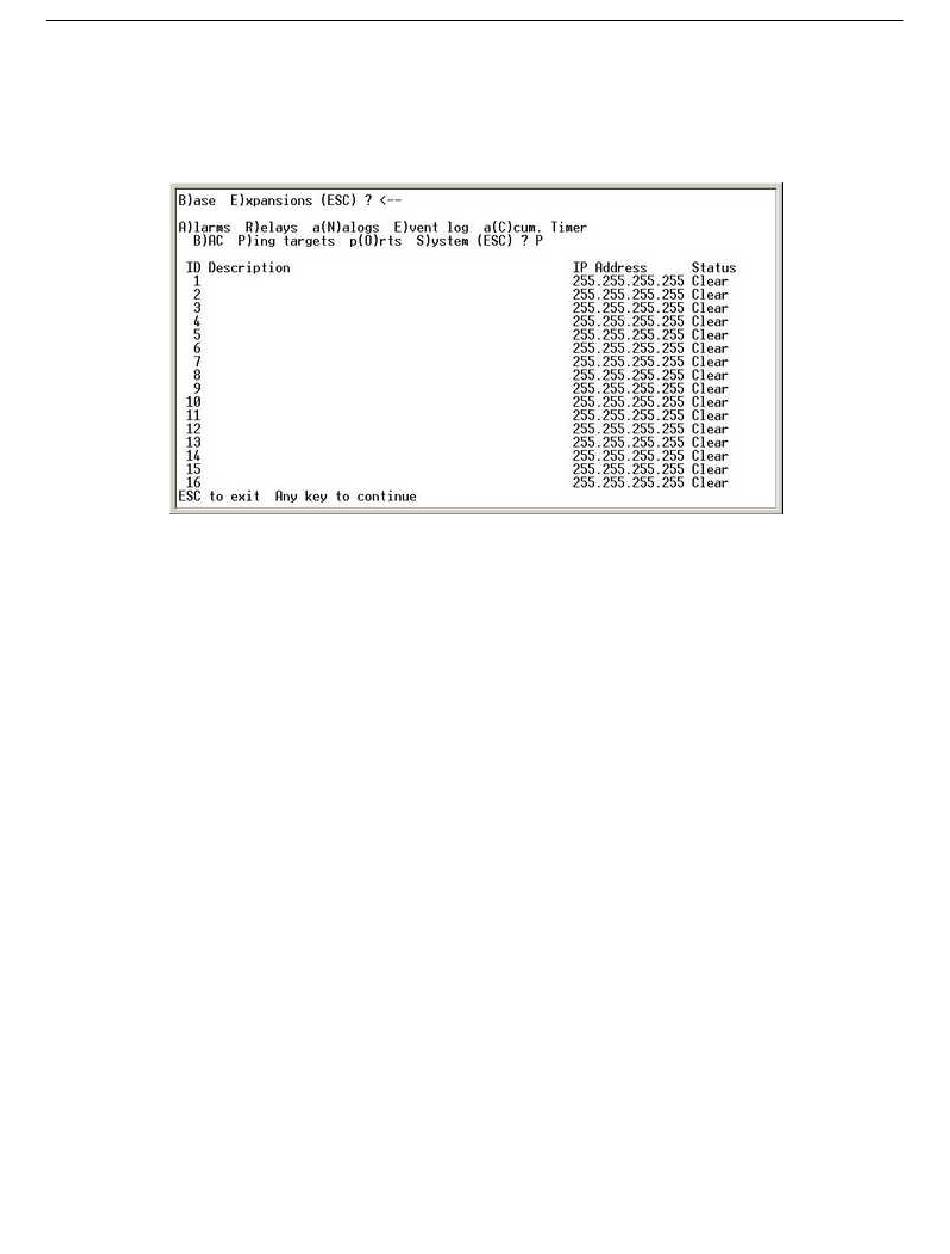

View the status of all your ping targets from the M)onitor menu > P)ing targets option. This screen displays the
ping target ID, description, and IP address. Under Status the word Alarm will appear if an alarm has been
activated and Clear will appear if an alarm condition is not present.
The Ping info submenu allows you to change ping targets

12.2.1.3 Monitoring and Operating Relays (Controls)

The NetGuardian comes equipped with 4 relays that can be used to control external devices. Monitor the status of
your relays from the M)onitor menu > R)elays option.
Relays 3 and 4 are set to normally open (N/O) as the factory default, but each or all of them can be changed to
normally closed (N/C) by changing their respective jumper.
