Event Log Field
Evt
Date
Time
St
Pref
Description

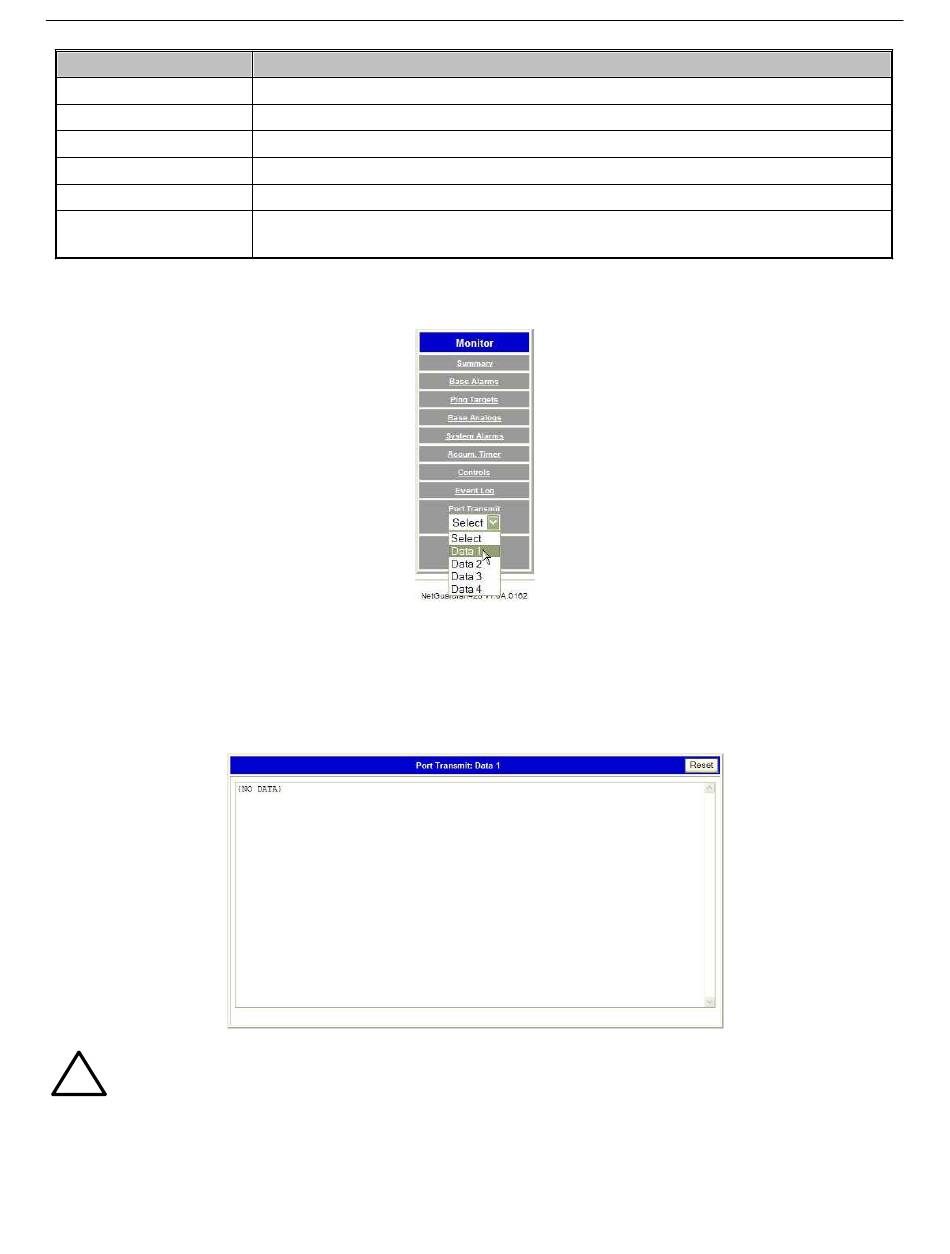

13.4.9 Monitoring Port Activity
To view the data being received by the connected equipment, select the data port number from the Monitor
The
and
Port Transmit
Port Receive
displaying transmit or receive activity in ASCII for the selected port. See "ASCII Conversion" in the Reference
Section of this manual for specific ASCII symbol conversion.
The Port Transmit screen displays activity for the selected port
!
Hot Tip!
Use the NetGuardian's CHAN feature to analyze bi-directional communication between two device in real time, see
section "Data Port Types."
Event number (1-100)
Date the event occurred
Time the event occurred
State of the event (A=alarm, C=clear)
Point reference.
User defined description of the event as entered in the alarm point and relay
description fields
Event Logging window field descriptions
menu > Port Receive drop-down menu
screens provide live status information for the NetGuardian's 4 data ports by
Description
85
