13.3.7 Defining Point Groups

Each NetGuardian Alarm point can be assigned to one of eight groups, which are identified with a user-defined
label. Once the point groups are defined, the Point Group IDs can be used to group base and system alarms, see
section "Configuring Base Discrete Alarms."
Use the following steps to define alarm messages for alarm point groups:
1. To define the point groups, select
2. Then enter the appropriate descriptions in the
group.
3. Click
Submit Data

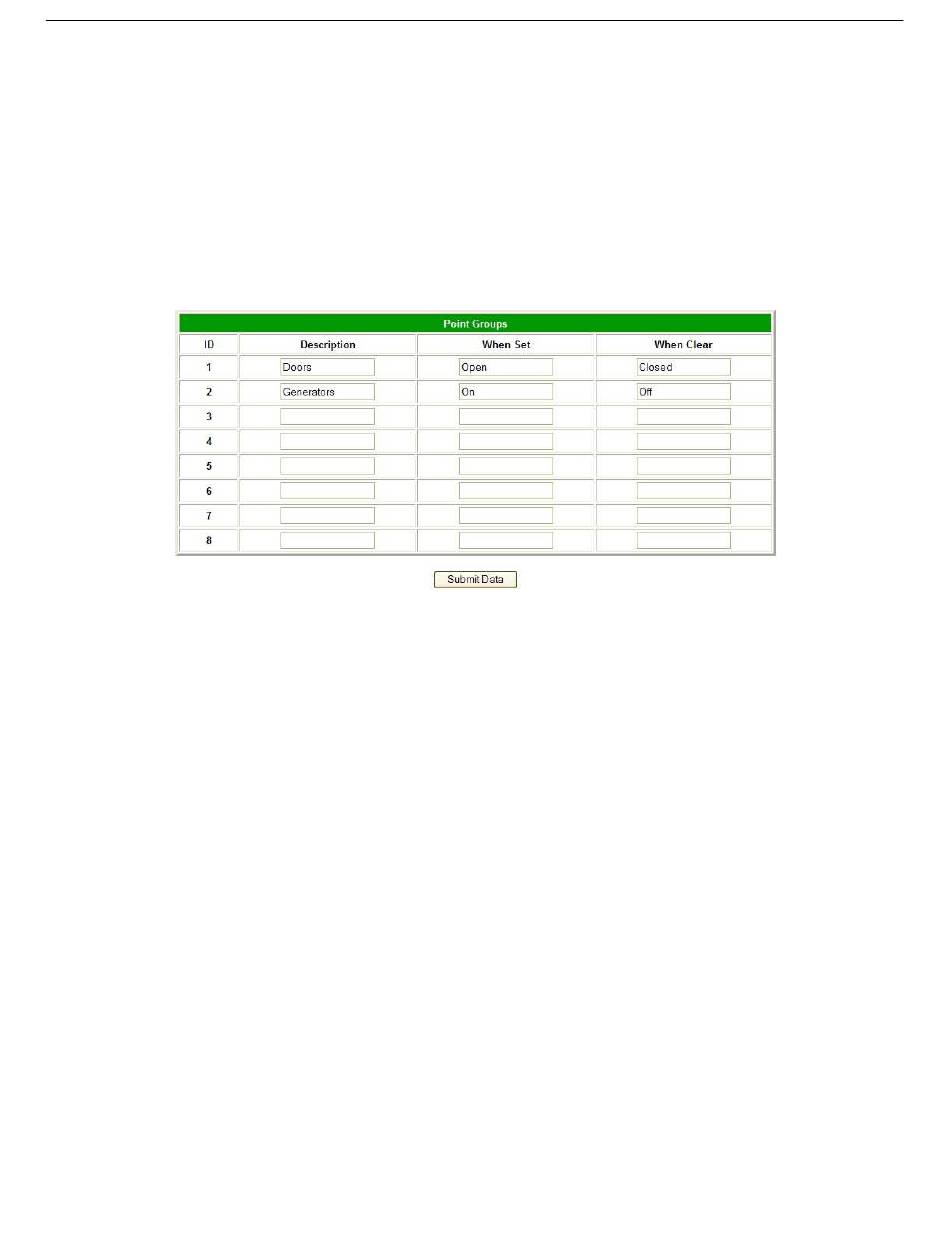

Define the Alarm and Clear messages for up to eight different point groups
Point Group
to save the point group settings.
from the menu.
Edit
,
Description When Set
and fields for each point
When Clear
65
