3.4.3 GENH/RM Rack Mounting outline drawings:

3.5 LOCATION, MOUNTING AND COOLING

This power supply is fan cooled. The air intake is at the front panel and the exhaust is at the rear
panel. Upon installation allow cooling air to reach the front panel ventilation inlets. Allow minimum
10cm (4 Inch) of unrestricted air space at the front and the rear of the unit.
The power supply should be used in an area that the ambient temperature does not exceed +50

3.6 AC SOURCE REQUIREMENTS

The GenesysTM series can be operated from a nominal 100V to 240V, single phase, 47~63Hz. The
input voltage range and current required for each model is specified in Chapter 2. Ensure that under
heavy load, the AC voltage supplied to the power supply does not fall below the specifications
described in Chapter 2.

3.7 AC INPUT POWER CONNECTION

CAUTION
Connection of this power supply to an AC power
source should be made by an electrician or other
qualified personnel.
The power supply shall be connected to the AC source via protective device (circuit breaker,
fuses, ...etc.) rated 20A max.
WARNING
There is a potential shock hazard if the power supply
chassis (with cover in place) is not connected to an
electrical safety ground via the safety ground in the
AC input connector.
495.0 1.0
482.0 1.0
467.5 1.0
497.5 1.0
510.5 1.0

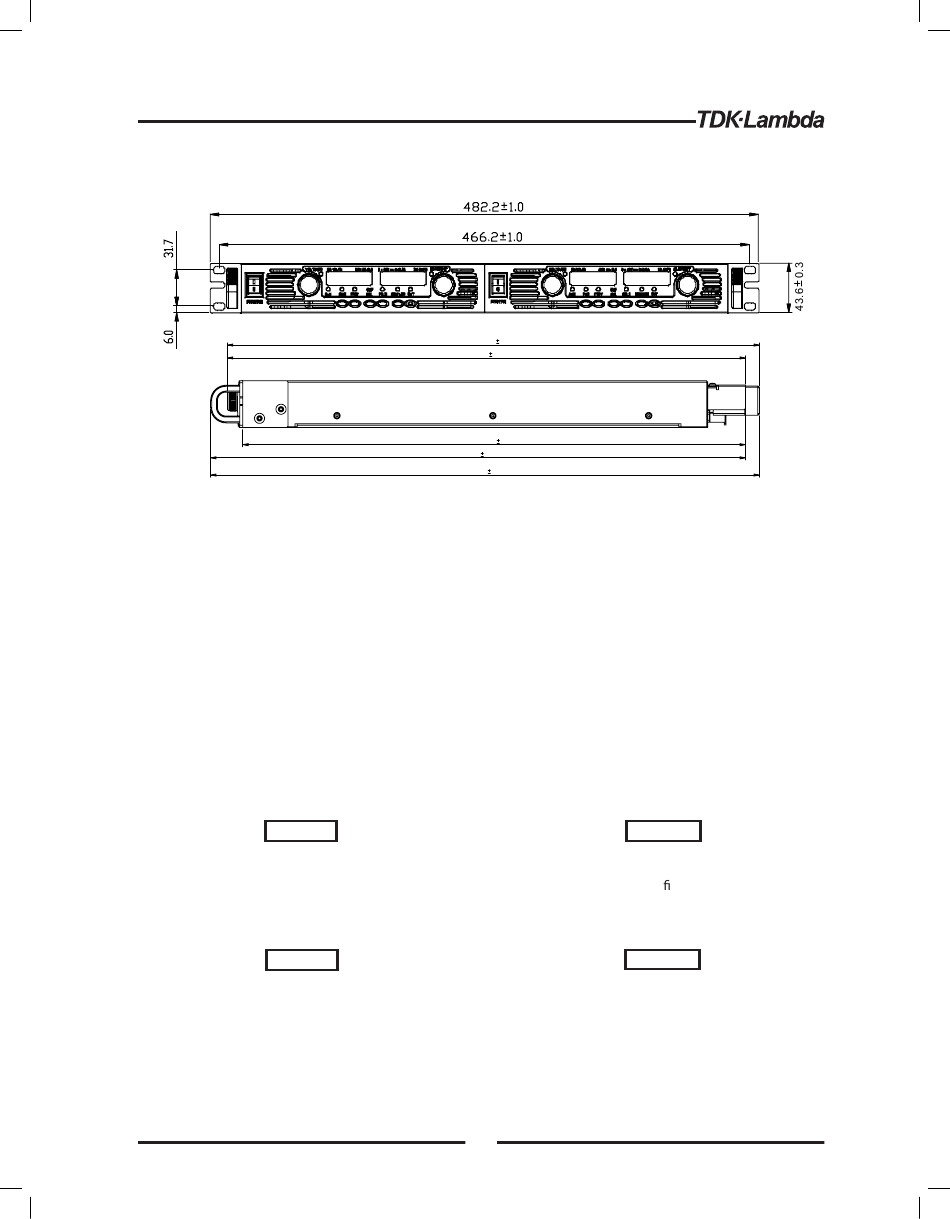

Fig.3-3 GENH/RM Rack Mounting outline
D e r A n s c h l u s s d i e s e s G e r t e s a n e i n AC -
Versorgungsnetz sollte durch einen Elektriker oder
anderes entsprechend quali ziertes Personal erfolgen.
Es besteht die Gefahr eines elektrischen Schlags, wenn
das Geh use des Netzteils (mitsamt Abdeckung) nicht
über den PE-Leiter des Netzkabels mit einer Schutzerde
verbunden ist.
