3.4.2 Rack Mount Slides (optional):
Ensure that the screws used to attach the slides to the unit do
not penetrate more than 6mm into the sides of the unit.
Use rack mount slides: General Devices P/N: CC3001-00-S160 (ordering P/N: C-300-S-116-RH-
LH) or equivalent to install the unit in a standard 19" equipment rack. Refer to Fig. 3-1 for slides
assembly instructions. Use three #10-32x0.38"(max.) screws at each side. To prevent internal
damage, use the specified screw length only.
3.5 LOCATION, MOUNTING AND COOLING
This power supply is fan cooled. The air intake is at the front panel and the exhaust is at the rear
panel. Upon installation allow cooling air to reach the front panel ventilation inlets. Allow minimum
10cm (4 Inch) of unrestricted air space at the front and the rear of the unit.
The power supply should be used in an area that the ambient temperature does not exceed +50 C.

3.6 AC SOURCE REQUIREMENTS

TM
The Genesys series can be operated from a nominal 100V to 240V, single phase, 47~63Hz. The
input voltage range and current required for each model is specified in Chapter 2. Ensure that under
heavy load, the AC voltage supplied to the power supply does not fall below the specifications
described in Chapter 2.

3.7 AC INPUT POWER CONNECTION

Connection of this power supply to an AC power source
should be made by an electrician or other qualified personnel.
There is a potential shock hazard if the power supply chassis
(with cover in place) is not connected to an electrical safety
ground via the safety ground in the AC input connector
CAUTION

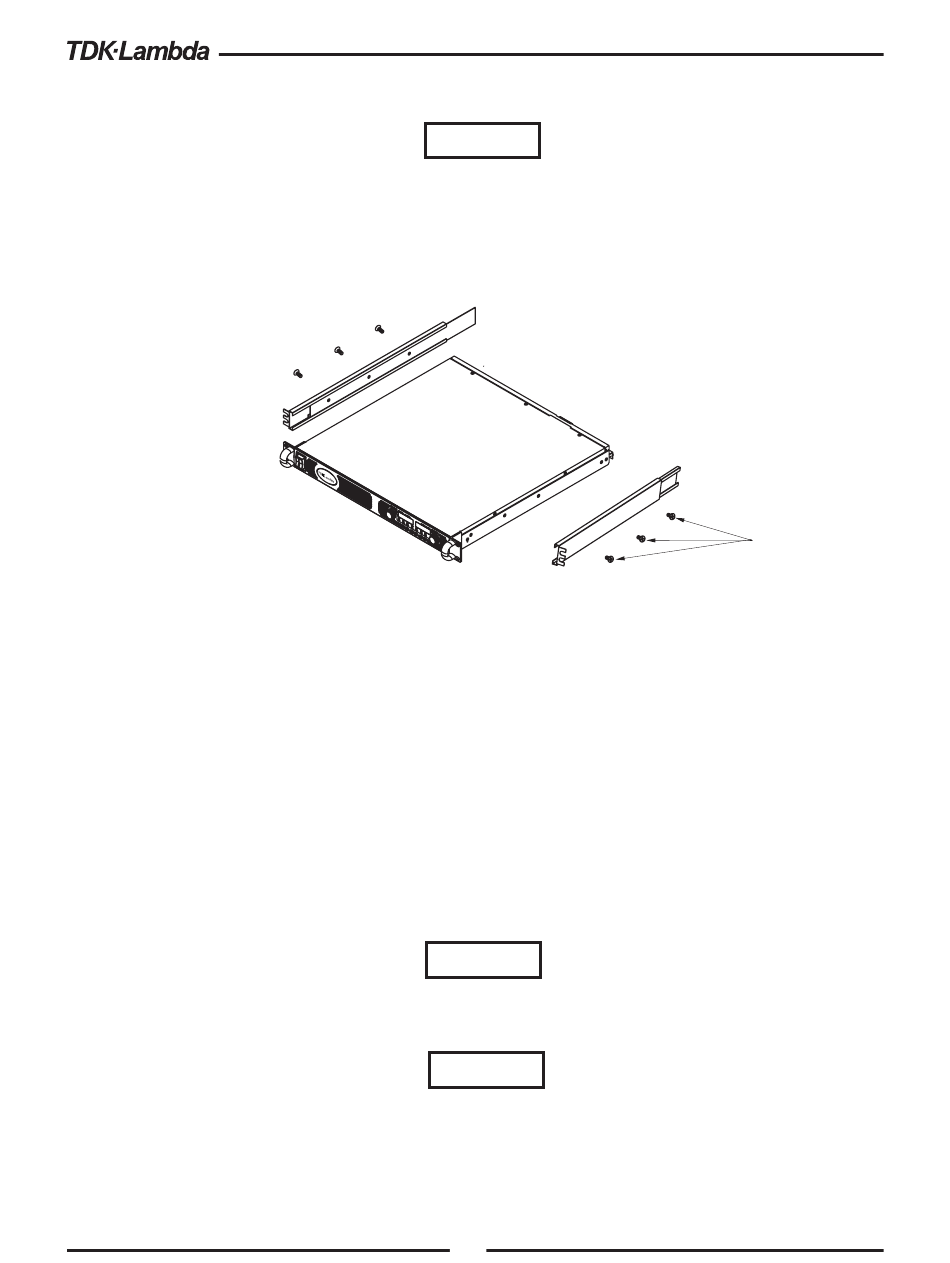

Fig.3-1: Rack-mount slides assembly
CAUTION
WARNING
14
14
#10-32x0.38"(max.)
screws
o
