FusionServer G5500 Server
User Guide

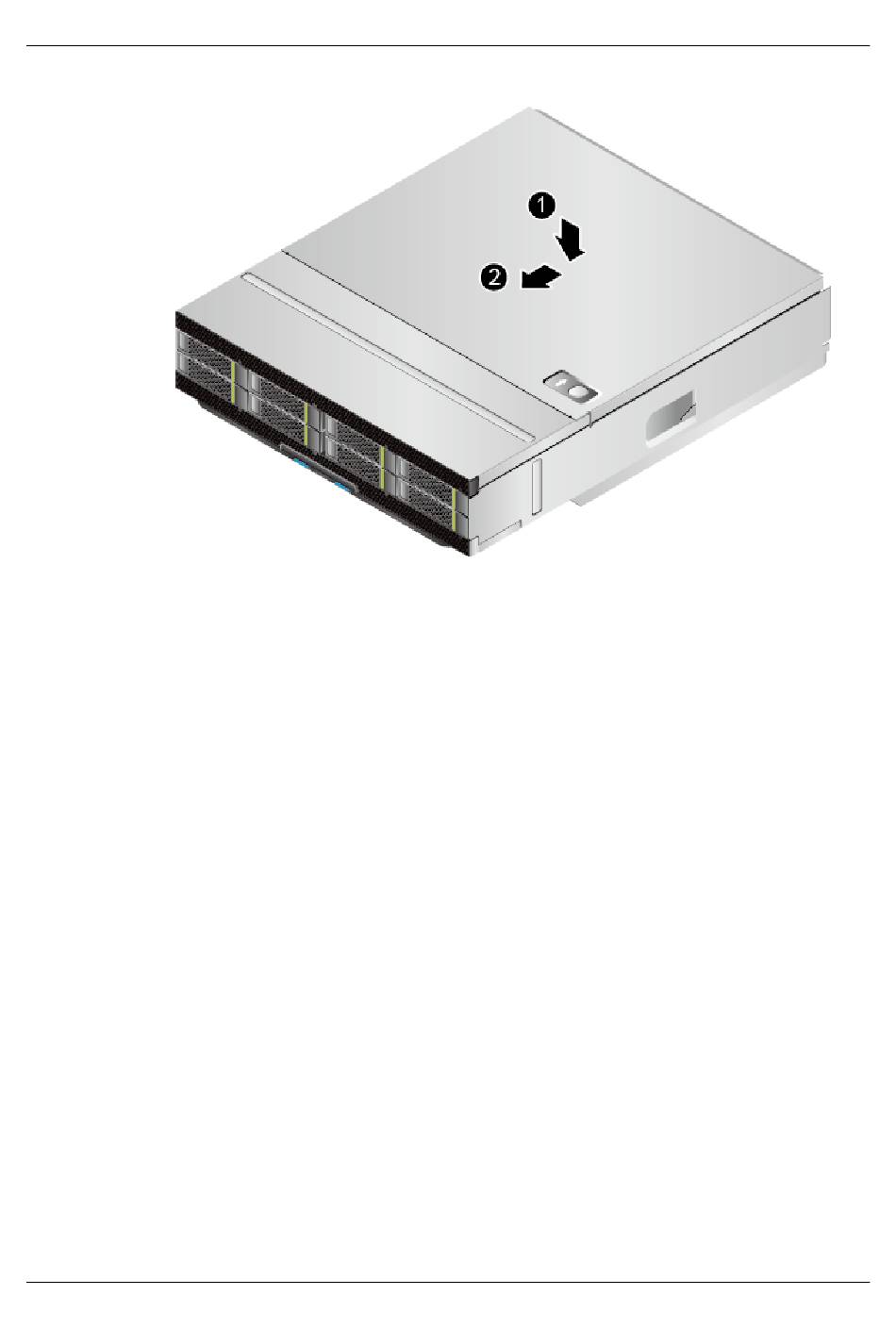

Figure 3-13 Installing the cover of the GP608
Step 3 Push the cover in the arrow direction until the cover clicks into place. See (2) in
----End
Removing the Cover of a G530 V2
Step 1 (Optional) Remove the G530 V2 from the G5500 chassis. For details, see
G530
Step 2 Place the G530 V2 on the ESD floor.
Step 3 Press the button on the cover and push the cover backwards until it cannot move. See (1) and
(2) in
Issue 02 (2017-12-15)
V2.
Figure 3-14.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3 Basic Operations
Figure 3-13.
3.5 Removing a
45
