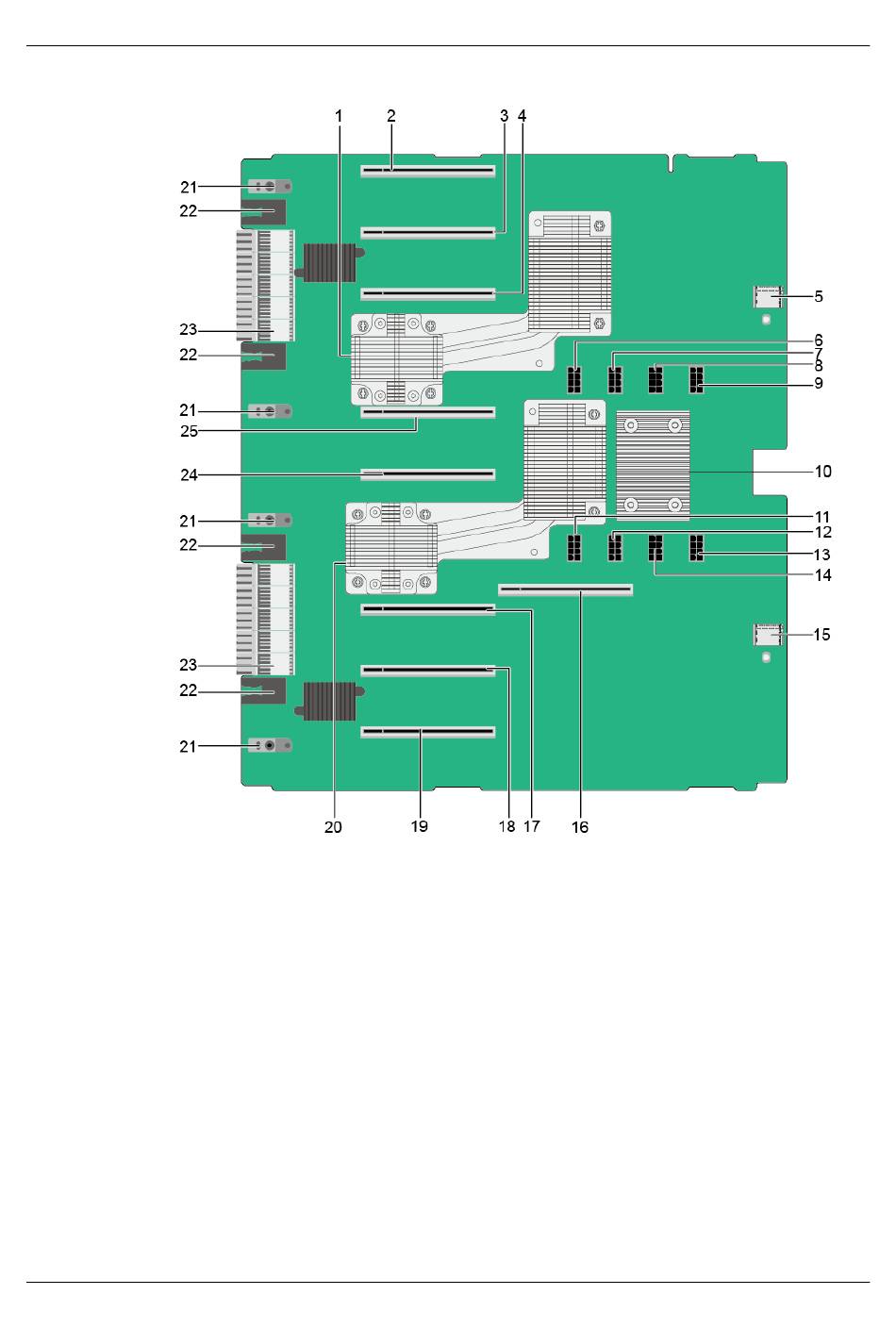

Figure 2-17 GP608 PCIe board components
1
3
5
7
9
11 PCIe slot 4 auxiliary power connector
13 PCIe slot 1 auxiliary power connector
15 Hard disk backplane connector 1
17 PCIe slot 3
19 PCIe slot 1
21 Backplane guide sleeve
23 Backplane signal connector
Issue 02 (2017-12-15)
PCIe switch 2
PCIe slot 7
Hard disk backplane connector 2
PCIe slot 6 auxiliary power connector
PCIe slot 8 auxiliary power connector
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2 PCIe slot 8
4 PCIe slot 6
6 PCIe slot 5 auxiliary power connector
8 PCIe slot 7 auxiliary power connector
10 SAS expander
12 PCIe slot 3 auxiliary power connector
14 PCIe slot 2 auxiliary power connector
16 PCIe slot 9 (reserved)
18 PCIe slot 2
20 PCIe switch 1
22 Backplane power connector
24 PCIe slot 4
