3-3.5 Remote Pull Stations
3-3.5.1

Electric Remote Pull Box, P/N 84-330001-001

The Electric Remote Pull Box is an electrically operated device. To actuate the HFC-227ea
system, pull the handle on the front of the box.
3-3.5.2

Cable Manual Pull Station, Surface, P/N 81-871403-000

The surface type remote Cable Manual Pull Station is a cable operated device. To actuate the
HFC-227ea system, break the glass plate on the box using the attached hammer and pull the
handle (see Figure 3-21).
5.87 in.
(149 mm)
BREAK GLASS
P/N 928103
06-236115-001
OPTIONAL
NAMEPLATE
(BY INSTALLER)
FOR FIRE
BREAK GLASS PULL HANDLE
R
PULL HARD
400 Main Street - Ashland, MA 01721-2150
Tel(508)881-3000 FAX(508)881-0020
5.00 in.
(127 mm)
3/8 in. NPT FEMALE
SECTION VIEW

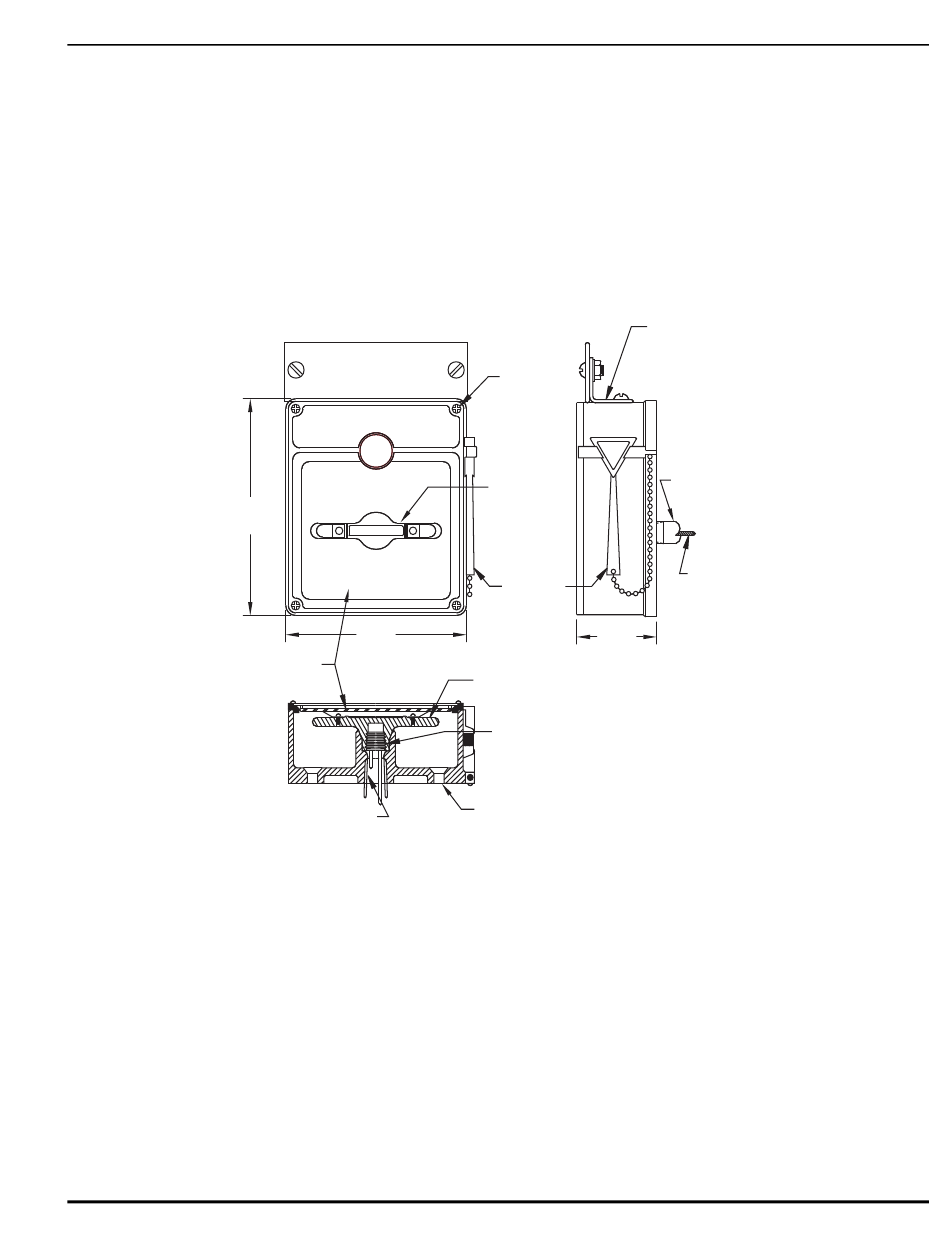

Figure 3-21. Cable Manual Pull Station
2 - NAMEPLATE
BRACKETS -
(SUPPLIED WITH
PULL BOX)
4-COVER
SCREWS
PULL
HANDLE
HAMMER
P/N 928103
2.25 in.
(57 mm)
PULL HANDLE
CABLE FASTENER FOR 1/16 in. CABLE
2 - HOLES FOR 1/4 in.
MOUNTING SCREWS
(SCREWS NOT SUPPLIED
WITH PULL BOX)
3-21
Component Description
3/8 in. PIPE
1/16 in. CABLE
