Component Description
3-3.4.4

Lever Operated Control Head, P/N WK-870652-000

The Lever Operated Control Head is equipped with an operating lever, secured in the closed
position by a safety pull pin. By removing the safety pin, the lever can be manually rotated to
the open position, thereby activating the cylinder or valve on which it is installed (see
Figure 3-17).
October 2014
LOCKING PIN
SEAL WIRE
LEVER
TO OPEN
1-1/4 in.-18 NF-3
FEMALE
3.00 in.
(76 mm)

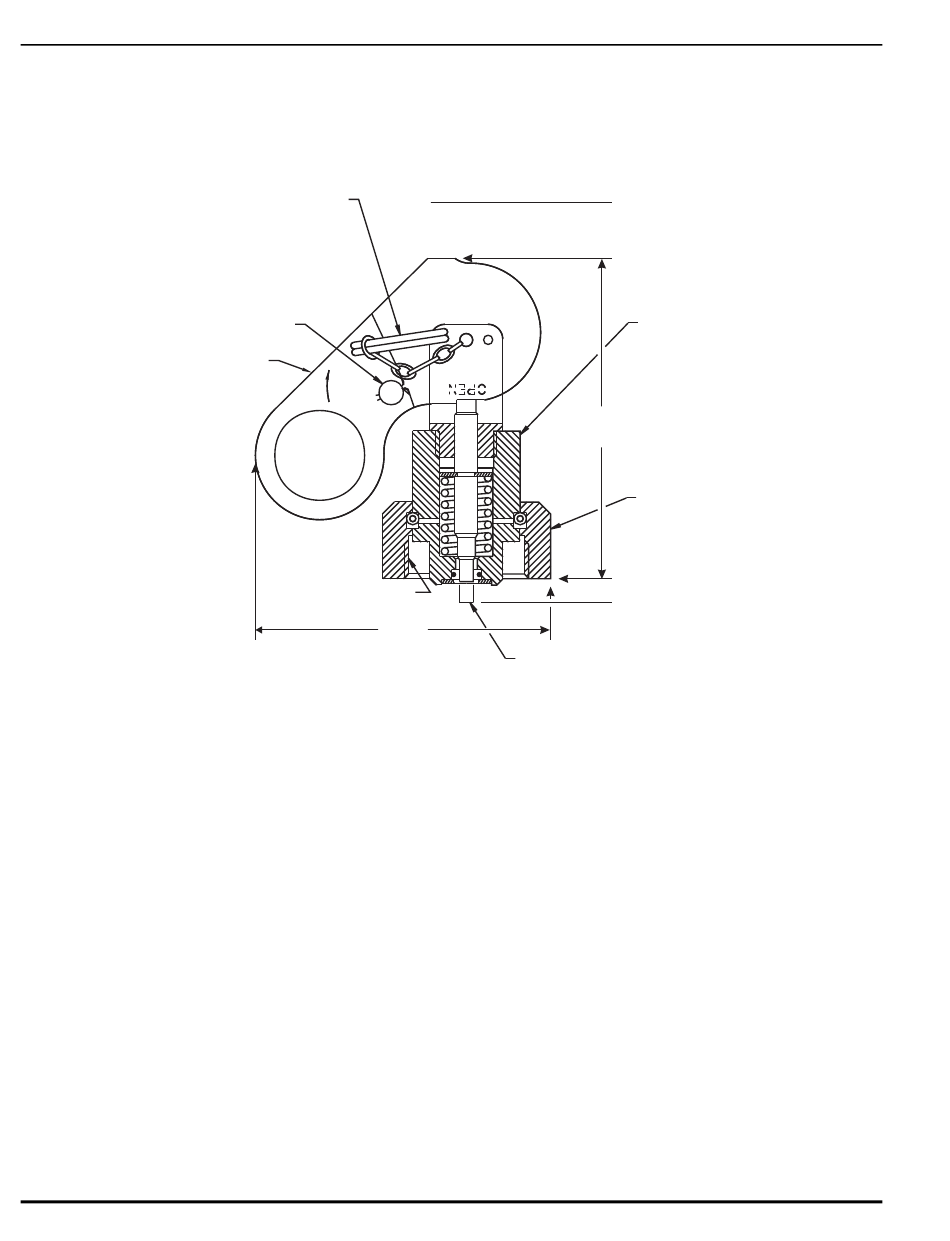

Figure 3-17. Lever Operated Control Head
ALLOW APPROX. 2 in. (50 mm)
CLEARANCE FOR
OPERATION OF LEVER
CLOSED
3.17 in.
(81 mm)
STEM
3-18
BODY
SWIVEL
NUT
1.50 in.
(38 mm)
SET
OPERATED
06-236115-001
