Component Description
3-3

COMPONENT DESCRIPTIONS

3-3.1 HFC-227ea Cylinder/Valve Assemblies
HFC-227ea is stored in steel cylinders as a liquid, superpressurized with nitrogen to 360 PSIG
at 70°F (25 bar gauge at 21°C). The cylinder valve assembly is equipped with a supervisory
pressure switch connection for monitoring cylinder pressure, a pressure gauge and a safety
burst disc in compliance with DOT requirements.
In addition, each cylinder/valve assembly is provided with a safety cap and a protection cap
which is a safety feature to prevent uncontrolled, accidental discharge.
The safety cap must be installed on the discharge outlet whenever a charged
cylinder/valve assembly is not connected to the system piping. Failure to install
the safety cap could result in violent movement of the container in the event of
WARNING
inadvertent actuation. Failure to follow these instructions could cause death,
personal injury and/or property damage.

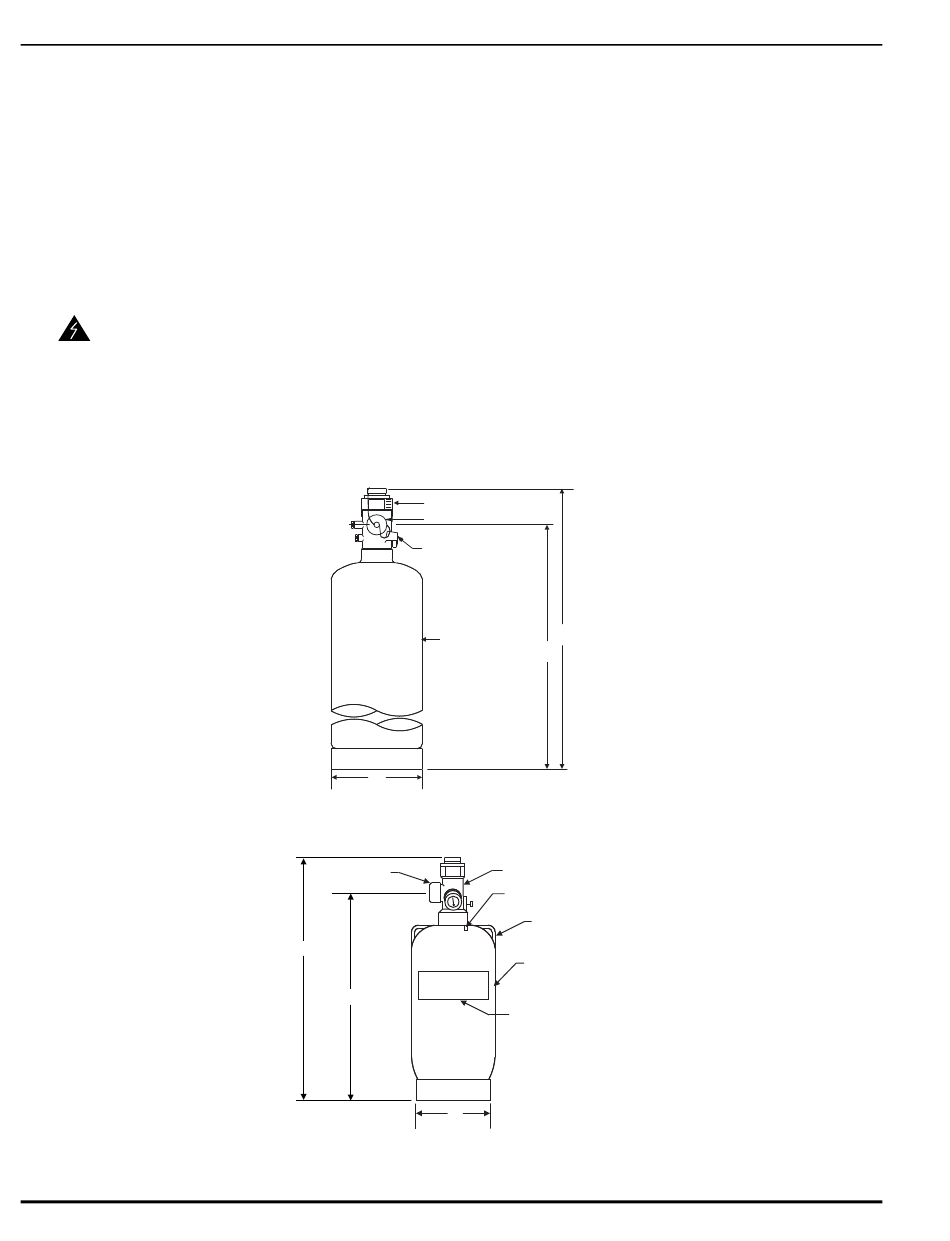

Figure 3-3 through Figure 3-6 represent typical cylinder assemblies. See Table 3-4 for cylinder
dimensions.
Figure 3-4. Typical Cylinder Assembly, 125 lb and 200 lb and 300 lb Manufactured through April 2014.
October 2014
A
Figure 3-3. Typical Cylinder Assembly, 10 to 70 lb.
SAFETY CAP
C
B
CYLINDER VALVE
SAFETY CAP
PRESSURE GAUGE
180 APART FROM SYPHON
TUBE OPEN END
C
CYLINDER
B
CYLINDER VALVE
LIQUID LEVEL
INDICATOR
LIFTING LUGS
CYLINDER
CYLINDER
NAMEPLATE
A
