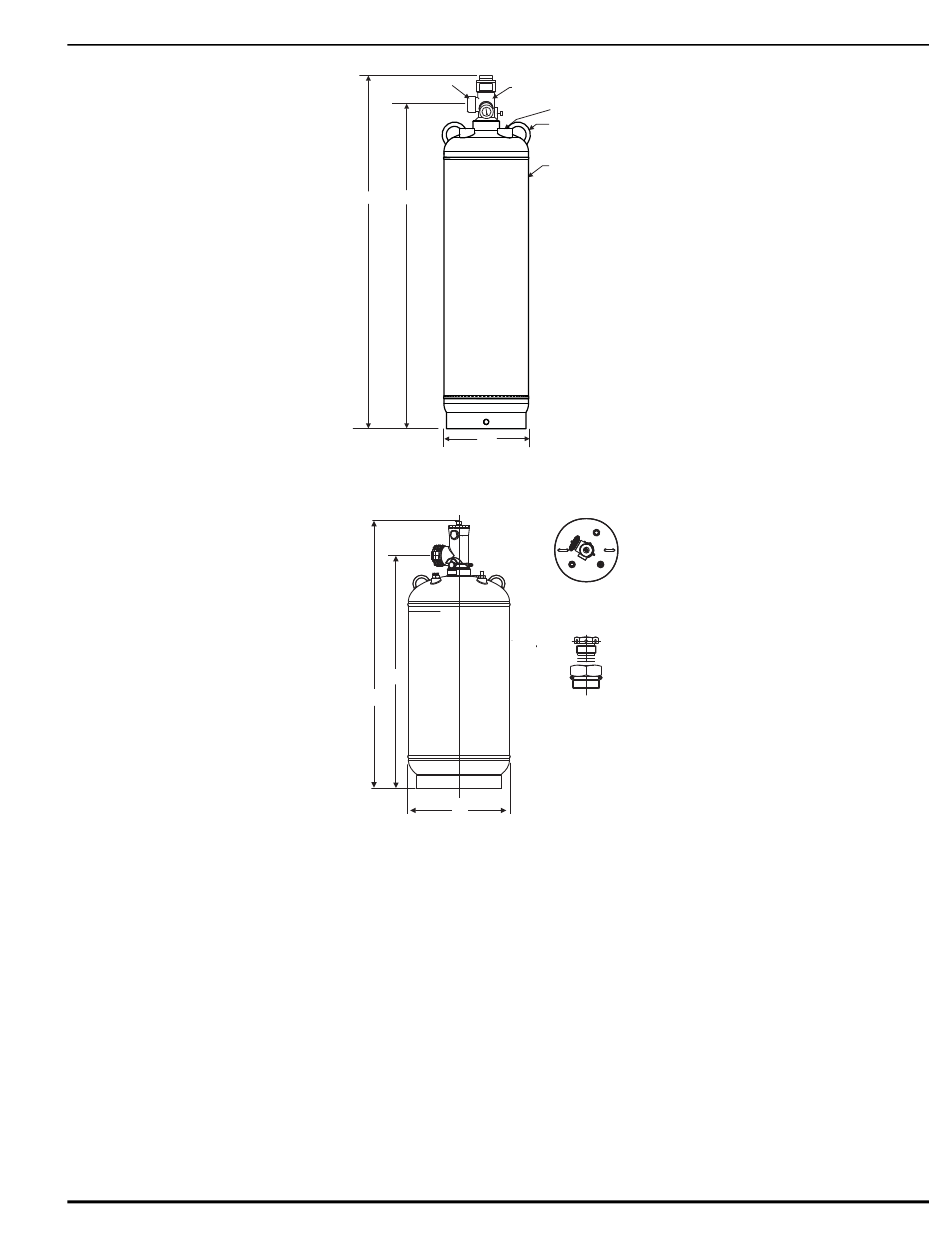

Figure 3-5. Typical Cylinder Assembly, 200 and 350 lb Manufactured After April 2014.
The Kidde ECS System equipment listed herein is designed for an operating temperature range
of 32°F to 130°F (0°C to 54°C). Table 3-1 shows the container temperature-pressure
relationship based on a maximum fill density of 70 lb./ft.
the Flow Calculation Software User's Guide 06-236271-001 is designed for a 70°F (21°C)
container operating/storage temperature. Therefore, the container operating and storage
temperature must be in the range of 60°F to 80°F (16°C to 27°C) for a single unbalanced
system protecting two or more separate hazards. If the container operating and storage
temperature is outside this range, an insufficient quantity of agent may be discharged from
one or more discharge nozzles.
06-236115-001
SAFETY CAP
C
B
B
C
A
Figure 3-6. 600 and 900 lb. Cylinder with 3" Valve
CYLINDER VAVLE
LIQUID LEVEL INDICATOR
LIFTING LUGS
CYLINDER
A
VALVE ORIENTATION
PLAN VIEW
SAFETY BURST
DISC ASSEMBLY
3
(1121 kg/m
3-5
Component Description
3
). The latest version of
