As a reference guide, Table 3-2 provides the equivalent lengths for all the Kidde ECS System
cylinder and valve assemblies. The numbers shown in the table represent the equivalent length
through the cylinder valve with the flex hose or without the flex hose, depending on the
application. This table can also be found in the latest version of the Flow Calculation Software
User's Guide 06-236271-001. Table 3-3 and Table 3-4 show the dimensions and fill range for
cylinder/valve assemblies in vertical installations.
Figure 3-7 and Figure 3-9 represent the 1½" through 3" valve arrangements.

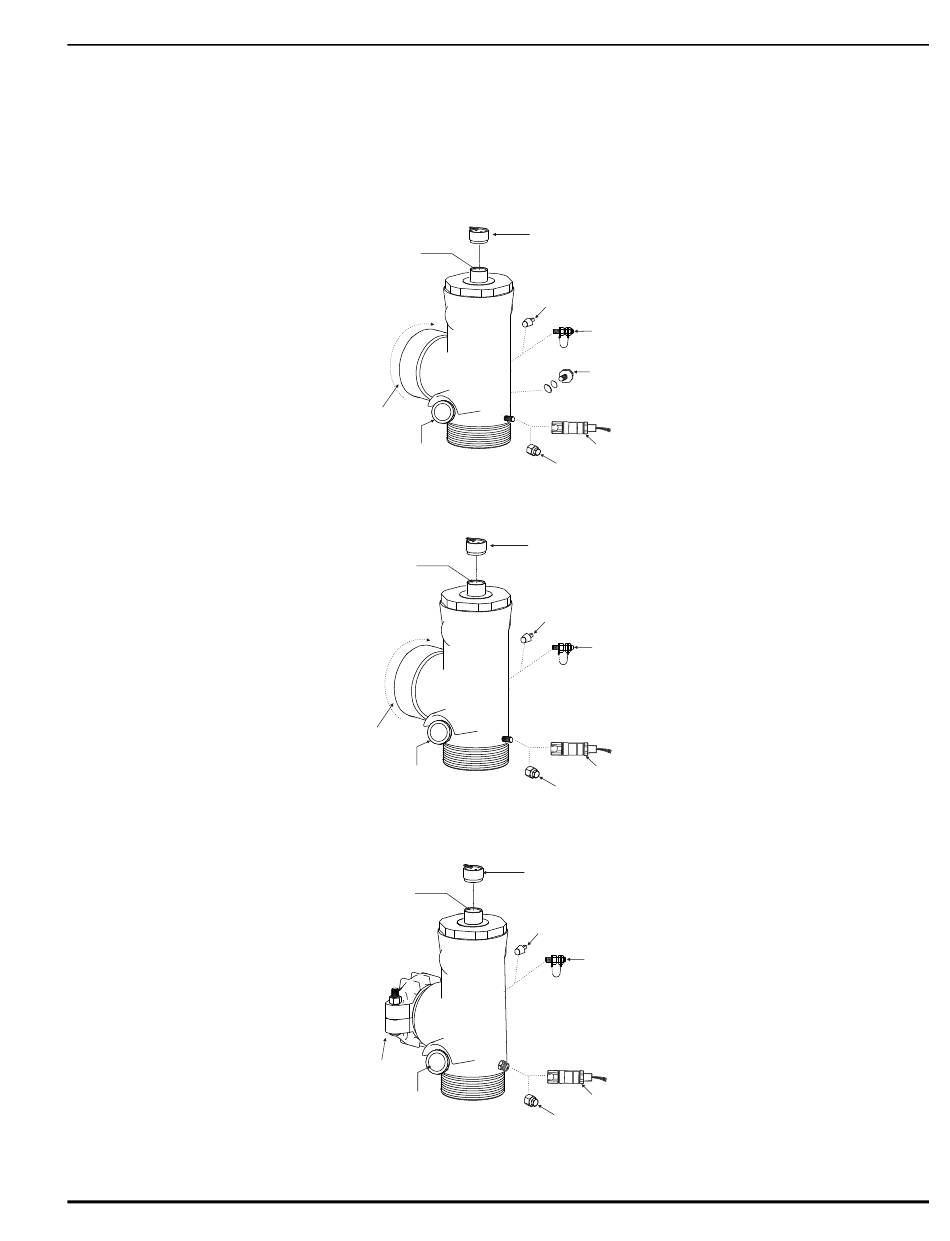

Figure 3-7. 1½", Older Style 2" and 2½" Valve General Arrangement
06-236115-001
ACTUATION
PORT
OUTLET
PROTECTION
CAP
PRESSURE
INDICATOR
ACTUATION
PORT
OUTLET
PROTECTION
CAP
PRESSURE
INDICATOR
Figure 3-8. Newer 2" Valve General Arrangement
ACTUATION
PORT
VICTAULIC
FITTING AND PLUG
PRESSURE
INDICATOR
Figure 3-9. 3" Valve General Arrangement
PRO CAP
PLUG
(PORT ON REAR)
MASTER CYLINDER
ADAPTER KIT
(PORT ON REAR)
USE PLUG OR
MASTER CYLINDER
ADAPTER KIT
SAFETY
DISC
(PORT ON REAR)
USE PRESSURE SWITCH
OR SAFETY CAP
PRESSURE
SWITCH
SAFETY
CAP
PRO CAP
PLUG
(PORT ON REAR)
MASTER CYLINDER
ADAPTER KIT
(PORT ON REAR)
USE PLUG OR
MASTER CYLINDER
ADAPTER KIT
USE PRESSURE SWITCH
OR SAFETY CAP
PRESSURE
SWITCH
SAFETY
CAP
PRO CAP
PLUG
(PORT ON REAR)
MASTER CYLINDER
ADAPTER KIT
(PORT ON REAR)
USE PLUG OR
MASTER CYLINDER
ADAPTER KIT
USE PRESSURE SWITCH
OR SAFETY CAP
PRESSURE
SWITCH
SAFETY
CAP
