Electric Control Head, Stackable (Explosion Proof) - Kidde Fire Systems ECS Manual

The Stackable Control Head (P/N 82-486500-010) is rated for use in hazardous (classified)
locations Class 1, Div 1, Groups C, D, and Class II, Div II, Groups E, F and G between -40°F
to 130°F (-40°C to 54°C). Use conduit seal within 18 in (457 mm) of this device.
Table 3-10. Electric Control Head, Stackable (Explosion Proof)
Electric Control Head, P/N 82-486500-010, is designed for installation directly
on Kidde ECS System cylinder valves only. This control head must not be
installed on any other type of HFC-227ea cylinder valve, nitrogen valve or
carbon dioxide cylinder valve. Installation of this control head on any other
CAUTION
device (for example, a pressure operated control head) will result in failure of
the device when the control head is actuated.
06-236115-001
2.90 in.
(73.66 mm)
SWIVEL NUT
1.25 - 18 UNEF - 2B
CONNECTION

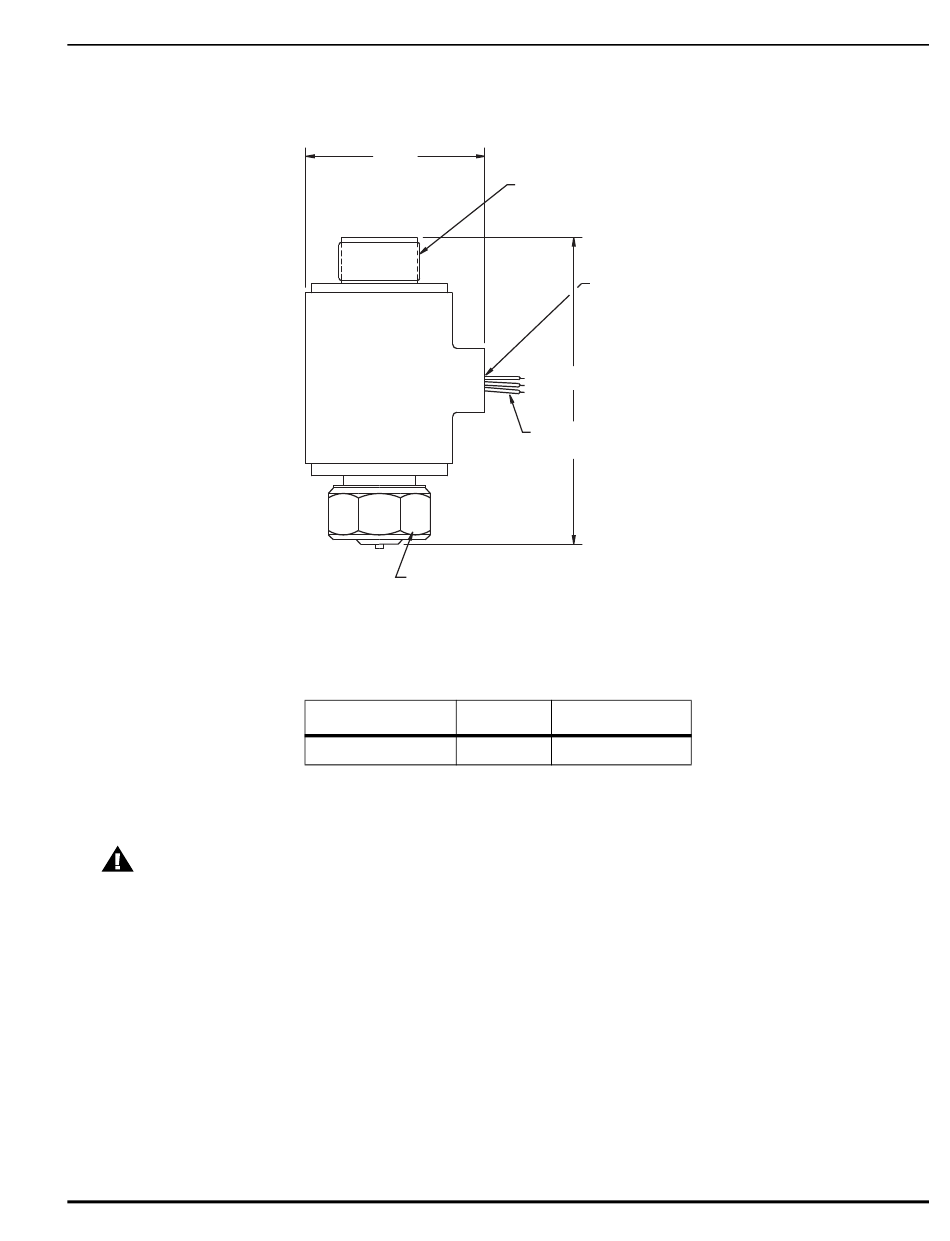

Figure 3-14. Electric Control Head, Stackable
Part Number Voltage
82-486500-010 24 Vdc
3-15
1.25-18 UNEF-2A
CONNECTION
½ in.-14 NPT
CONDUIT
CONNECTION
(134.11 mm)
5.28 in.
(3) 18 AWG-LEADS
18 in. (457.2 mm) LONG
Amps
0.2 continuous
Component Description
October 2014
