Component Description
3-3.4 Control Heads
A suitable control unit, specifically Listed and Approved for use with the following electric
control heads, shall be provided for supervision of the releasing circuits per NFPA
requirements. In addition, a 24-hour back-up power source shall be provided per NFPA
requirements.
3-3.4.1 Electric Control Heads, P/N WK-890181-000, P/N 81-890149-000, and P/N
WK-890165-000
The stackable control head (P/N 82-486500-010) cannot be used with 3 in
valve cylinders (P/Ns 90-100600-100, 90-100601-100, 90-100900-001 and
90-100901-001). The stackable control head does not have sufficient force to
activate the 3 in valve (P/N 90-17000-000) and may result in a system failure.
CAUTION
The electric/manual control heads (P/Ns WK-890181-000, 81-890149-000,
and WK-890165-000) may be used with the 3 in valve.
The Electric Control Head provides for electric actuation of the HFC-227ea cylinder valve. It is
operated electrically from a detection and control system, a remote manual station, or locally
with a manual lever on the electric control head (P/N WK-890181-000 only). See Figure 3-13.
October 2014
SEAL WIRE
CONTROL HEAD
6.18 in.
(157 mm)
PART NO.
INDICATOR AND
RESET STEM
Part Number
WK-890181-000
81-890149-000
WK-890165-000
(a) Not FM Approved for use with HFC-227ea Systems
(b) Not UL Listed for use with HFC-227ea Systems

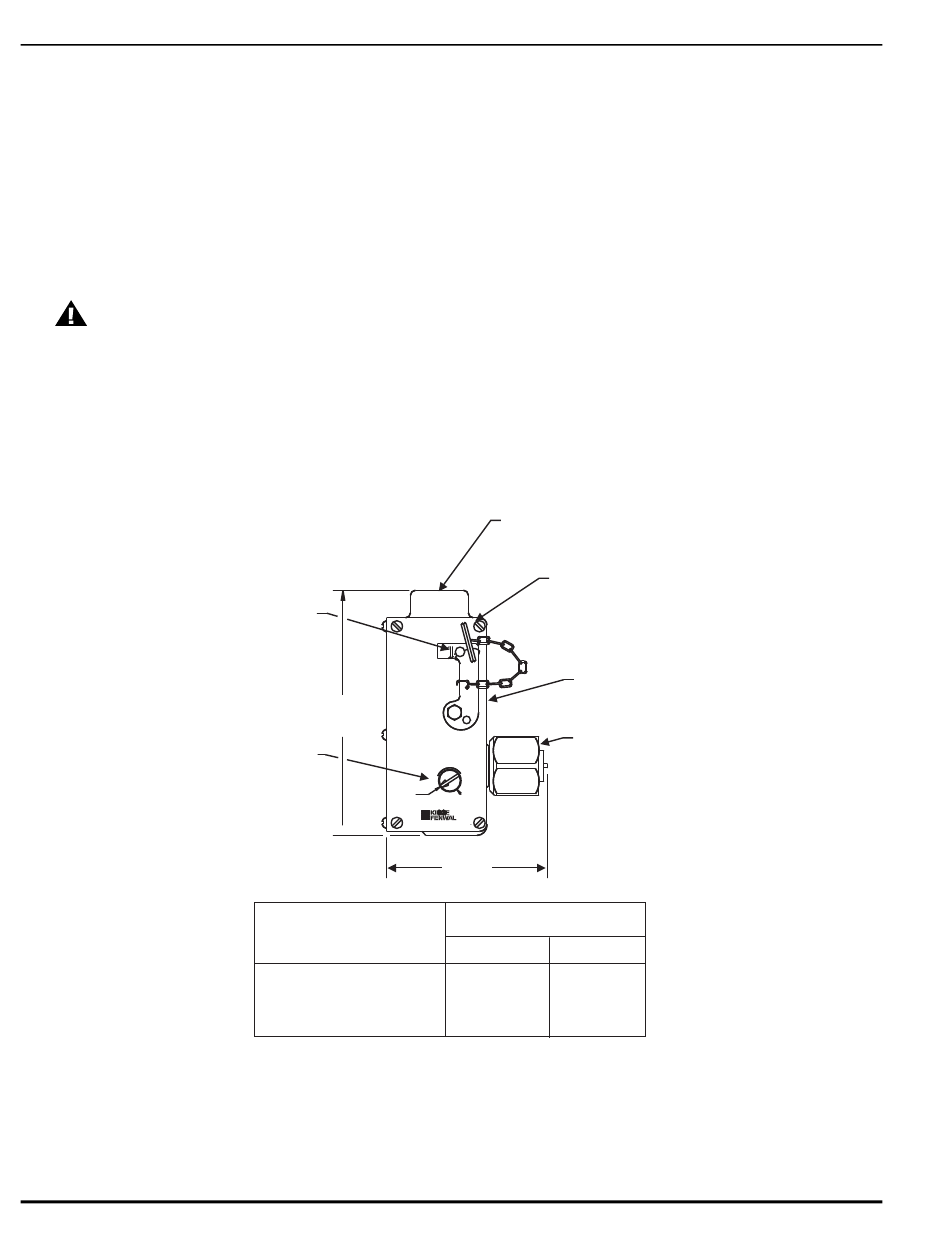

Figure 3-13. Electric Control Head
CONNECTION FOR FLEXIBLE
ELECTRIC CONDUIT -
3/4 in. NPT FEMALE
LOCKING PIN
ELECTRIC
VOLTS
AMPS
SWIVEL NUT
TO RESET
USE SCREWDRIVER
SET RELEASED
MADE IN U. S. A.
KIDDE-FENWAL, INC.
400 MAIN STREET
ASHLAND, MA 01721
4.00 in.
(102 mm)
Control Head
Voltage Current
24 Vdc 2.0A
(a)
125 Vdc 0.3A
(a),(b)
115 Vac 1.0A
3-14
LOCAL MANUAL
RELEASE LEVER
