Component Description
3-3.2

Liquid Level Indicator

The optional Liquid Level Indicator (LLI) consists of a hollow metal tube inserted into a special
fitting in the top of the 125, 200, 350, 600 or 900 lb HFC-227ea cylinder. See Table 3-5 for
part number information. The indicator is provided with a graduated tape which senses the
position of a toroidal magnet encased within an internal float riding on the liquid surface. The
graduations on the tape indicate the liquid level within the cylinder (see Figure 3-10).
October 2014
READING TAKEN AT TOP
EDGE OF FITTING
TAPE INSIDE
BRASS TUBE
HFC-227ea
LIQUID LEVEL
RETAINER - FLOAT RESTS
HERE WHEN CYLINDER
IS EMPTY.

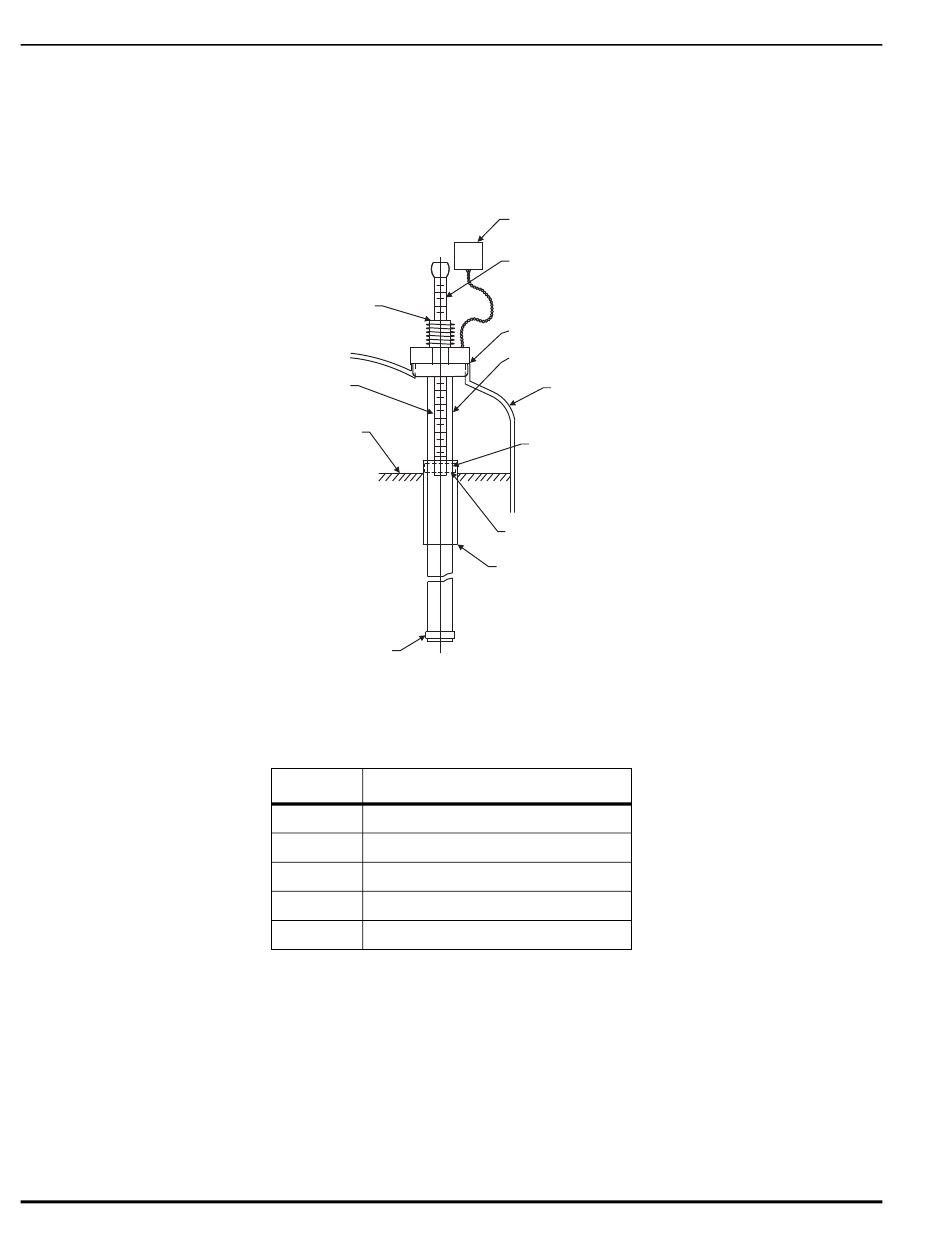

Figure 3-10. Liquid Level Indicator
Table 3-5. Liquid Level Indicator Part Numbers
Cylinder Liquid Level Tape Part Number
125
200
350
600
900
CAP
GRADUATED TAPE
SHOWN IN MAGNETIC
INTERLOCK POSITION
READY TO TAKE
READING.
O-RING
BRASS TUBE
HFC-227ea
CYLINDER
MAGNETIC END OF
TAPE ENGAGES
IN MAGNETIC FIELD
OF FLOAT WHEN
TAPE IS PULLED
UP TO TAKE READING.
MAGNET EMBEDDED
IN FLOAT.
FLOAT - FLOATS ON SURFACE
OF LIQUID HFC-227ea.
FREE TO MOVE UP OR DOWN
OUTSIDE OF BRASS TUBE.
.
06-400125-001
WK-400200-000
WK-400350-000
WK-400600-000
WK-400900-000
3-10 06-236115-001
