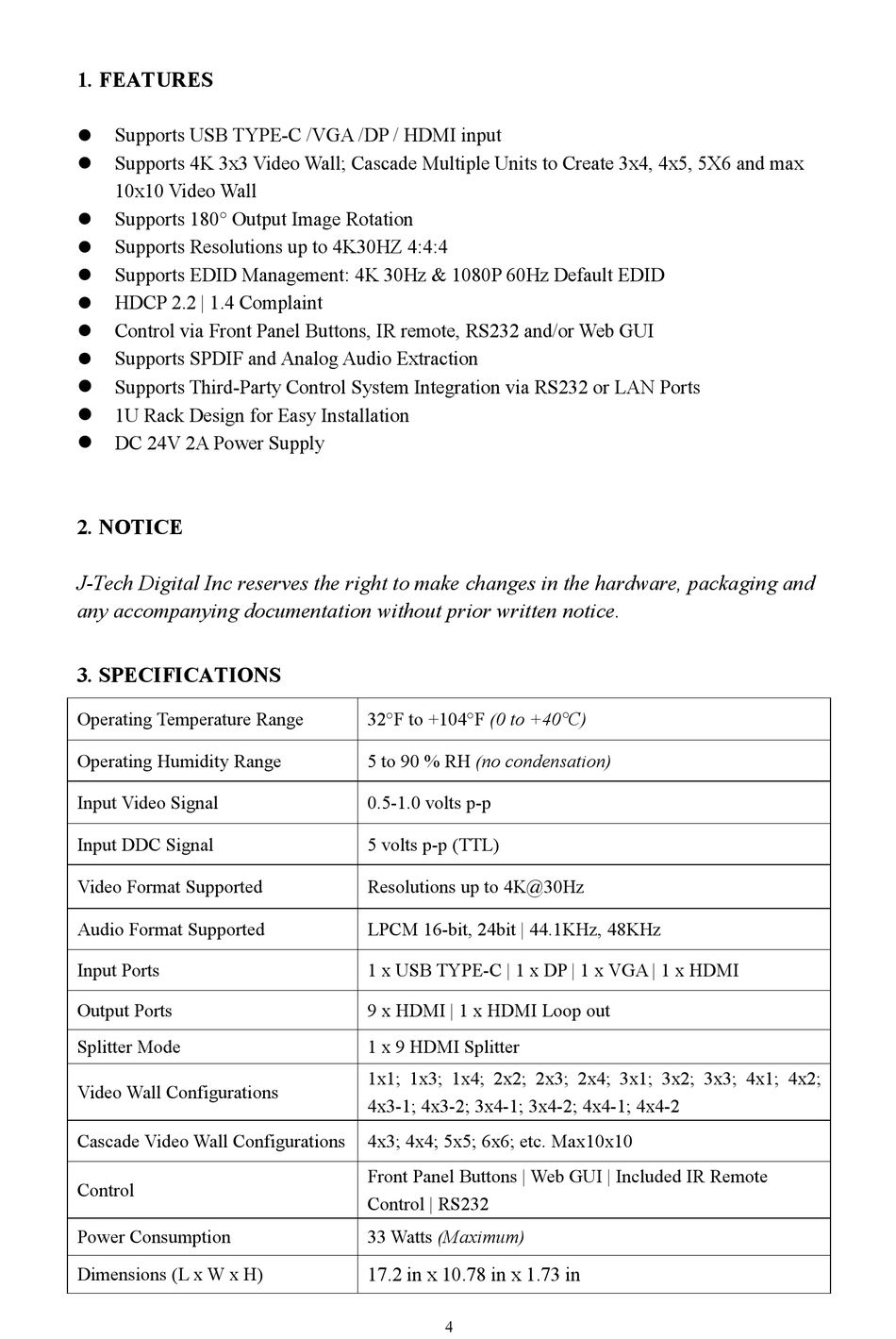

1. FEATURES

 Supports USB TYPE-C /VGA /DP / HDMI input
 Supports 4K 3x3 Video Wall; Cascade Multiple Units to Create 3x4, 4x5, 5X6 and max
10x10 Video Wall
 Supports 180° Output Image Rotation
 Supports Resolutions up to 4K30HZ 4:4:4
 Supports EDID Management: 4K 30Hz & 1080P 60Hz Default EDID
 HDCP 2.2 | 1.4 Complaint
 Control via Front Panel Buttons, IR remote, RS232 and/or Web GUI
Supports SPDIF and Analog Audio Extraction


Supports Third-Party Control System Integration via RS232 or LAN Ports

1U Rack Design for Easy Installation

DC 24V 2A Power Supply

2. NOTICE

J-Tech Digital Inc reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.

3. SPECIFICATIONS

Operating Temperature Range
Operating Humidity Range
Input Video Signal
Input DDC Signal
Video Format Supported
Audio Format Supported
Input Ports
Output Ports
Splitter Mode
Video Wall Configurations
Cascade Video Wall Configurations
Control
Power Consumption
Dimensions (L x W x H)
32°F to +104°F (0 to +40°C)
5 to 90 % RH (no condensation)
0.5-1.0 volts p-p
5 volts p-p (TTL)
Resolutions up to 4K@30Hz
LPCM 16-bit, 24bit | 44.1KHz, 48KHz
1 x USB TYPE-C | 1 x DP | 1 x VGA | 1 x HDMI
9 x HDMI | 1 x HDMI Loop out
1 x 9 HDMI Splitter
1x1; 1x3; 1x4; 2x2; 2x3; 2x4; 3x1; 3x2; 3x3; 4x1; 4x2;
4x3-1; 4x3-2; 3x4-1; 3x4-2; 4x4-1; 4x4-2
4x3; 4x4; 5x5; 6x6; etc. Max10x10
Front Panel Buttons | Web GUI | Included IR Remote
Control | RS232
33 Watts (Maximum)
17.2 in x 10.78 in x 1.73 in
