- Page 1 US ER MANUA L 4K60 Wall Plate Extender with HDMI/Type-C Inputs JTD-2987 I JTECH-EXW30 J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction........................2. Features........................... 3. Package Contents......................4. Specifications......................... 5. Product Dimensions..................... 6. Operation Controls and Functions................6.1 Transmitter Panel....................6.2 Receiver Panel......................7. Application Example..................... 8. Maintenance........................9. Warranty........................... 10. Mail-In Service......................11. Limited Warranty Limits and Exclusions.............. -
Page 3: Introduction

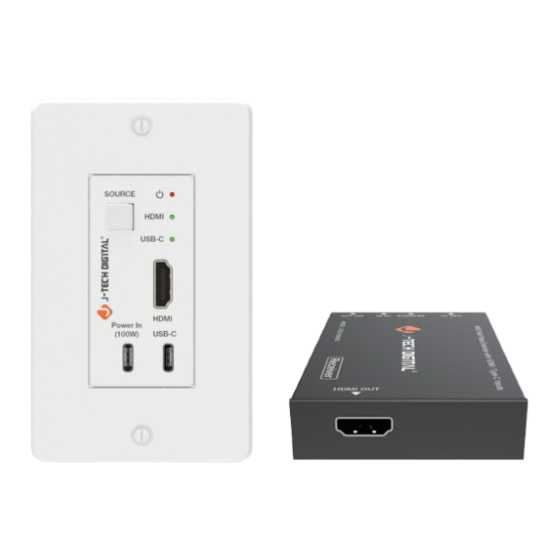

1. Introduction The wall plate is a 2x1 switcher and CAT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K@50/60Hz 4:4:4. CAT6 output can extend video transmission distance up to 164ft / 50m. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 DP Compliance Display Port 1.2a USB-C: 5.4 Gbps Video Bandwidth HDMI: 18 Gbps Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 8/10/12-bit (1080P@60Hz) Color Depth 8-bit (4K@60Hz) Support... -
Page 5: Product Dimensions
Mechanical Housing Metal Enclosure Color White / Black Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: Dimensions 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 88mm (W) × 61mm (D) × 18mm (H) Weight Wall plate: 195g, Receiver: 155g POC (only from Receiver to Transmitter) Power Supply Power Consumption Wall plate: 3W (Max), Receiver: 3.72W (Max) -
Page 6: Operation Controls And Functions
6. Operation Controls and Functions 6.1 Transmitter Panel HDMI SOURCE USB-C CAT6 OUT HDMI CHARGE USB-C Name Function Description The power LED indicator will illuminate in green when the product is powered on, and red when Power LED the product is on standby. When the HDMI input port is active and the HDMI HDMI LED signal is detected, the green LED will be on. -
Page 7: Receiver Panel
6.2 Receiver Panel CAT IN SERVICE IR IN DC 12V HDMI OUT Name Function Description HDMI output port, connect to HDMI display device HDMI OUT such as TV or Projector with an HDMI cable. Connect to the CAT6 OUT port on the transmitter CAT IN with a CAT cable. -
Page 8: Application Example
7. Application Example CAT5e/6 Cable Power Adapter Receiver HDMI SOURCE USB-C HDMI OUT CAT IN SERVICE IR IN DC 12V CAT6 OUT HDMI CHARGE USB-C Transmitter Apple Power Adapter Notebook TV or Monitor Apple The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -
Page 9: Maintenance
8. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 9. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (18) Months”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) -
Page 10: Limited Warranty Limits And Exclusions
11. Limited Warranty Limits and Exclusions This Limited Warranty ONLY COVERS failures due to defects in material or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, mis-adjustment of consumer controls, improper maintenance, power line... - Page 11 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM - 6 -...
