- Page 1 V1.0 USER MANUAL 18G HDMI Manager with EDID & HDCP Manage JTD-3074 | JTECH-EDIDM4K J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/3074 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel Description 6. System Diagram 7. Management 8. Upgrade 7. Maintenance 8. Warranty 9. Mail-In Services 10. Limited Warranty Limits and Exclusions... -
Page 5: Introduction
1. Introduction The JTECH-EDIDM4K is a 18G HDMI manager with EDID & HDCP manage. It supports up to 4K@60 4:4:4 and HDCP2.2. The product is power by HDMI or USB-C, and it contains CEC block switch and support auto-downscaling. 2. Features 18G HDMI 2.0 4K@60 444 HDCP2.2. -
Page 6: Panel Description

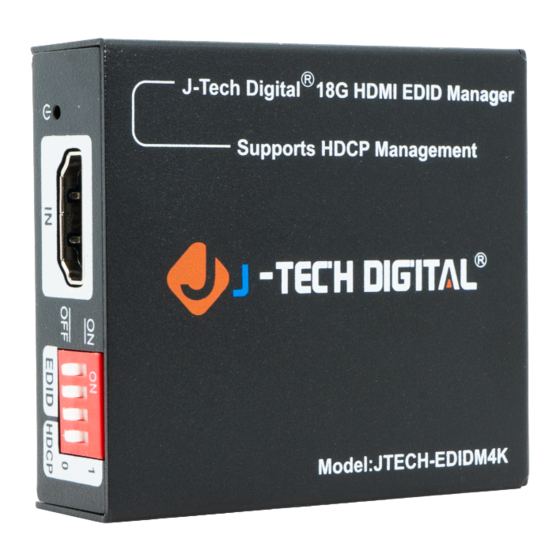

Power Consumption 2.4W (Max) Dimension (W*H*D) 54*18*60mm Net Weight 5. Panel Description Power LED: The LED indicates green when power is on. HDMI IN: HDMI 2.0 input, connect to source. DIP Switch: 4-pin dip switch for EDID and HDCP management. USB-C: USB-C is used to power the machine, upload EDID and firmware upgrade. -
Page 7: System Diagram
6. System Diagram EDID Update EDID Management HDCP Management CEC On/ Off Laptop Camera Monitor Projector Blu-Ray Player Playstation... -
Page 8: Management
7. Management Predefined EDID Settings Switch Status Video Resolution Audio Format Obtain the Display EDID 1080P LPCM 1080P DTS/Dolby 3840x2160@30Hz HDR LPCM 3840x2160@30Hz HDR DTS/Dolby 3840x2160@60Hz HDR LPCM 3840x2160@60Hz HDR DTS/Dolby User defined EDID User Defined EDID Settings 1) Rename the user defined EDID as follow: 0803C000.DAT 2) Connect the machine to the PC and the PC will detect a U-disk named “BOOTDISK”. -
Page 9: Upgrade
8. Upgrade 1) Rename the upgrade file as follow: 08009000.APP 2) Connect the JTECH-EDIDM4K to the PC with USB cable, the PC will detect a U-disk named “BOOTDISK“. 3) Copy the file into the U-disk, and then open the U-disk. If there is a SUCCESS.TXT file, it means upgrade is successful, and if there is an UNKNOW.TXT, it means that the upgrade failed. -
Page 10: Limited Warranty Limits And Exclusions
12. Limited Warranty Limits and Exclusions This Limited Warranty ONLY COVERS failures due to defects in material or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, mis- adjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by... - Page 11 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
