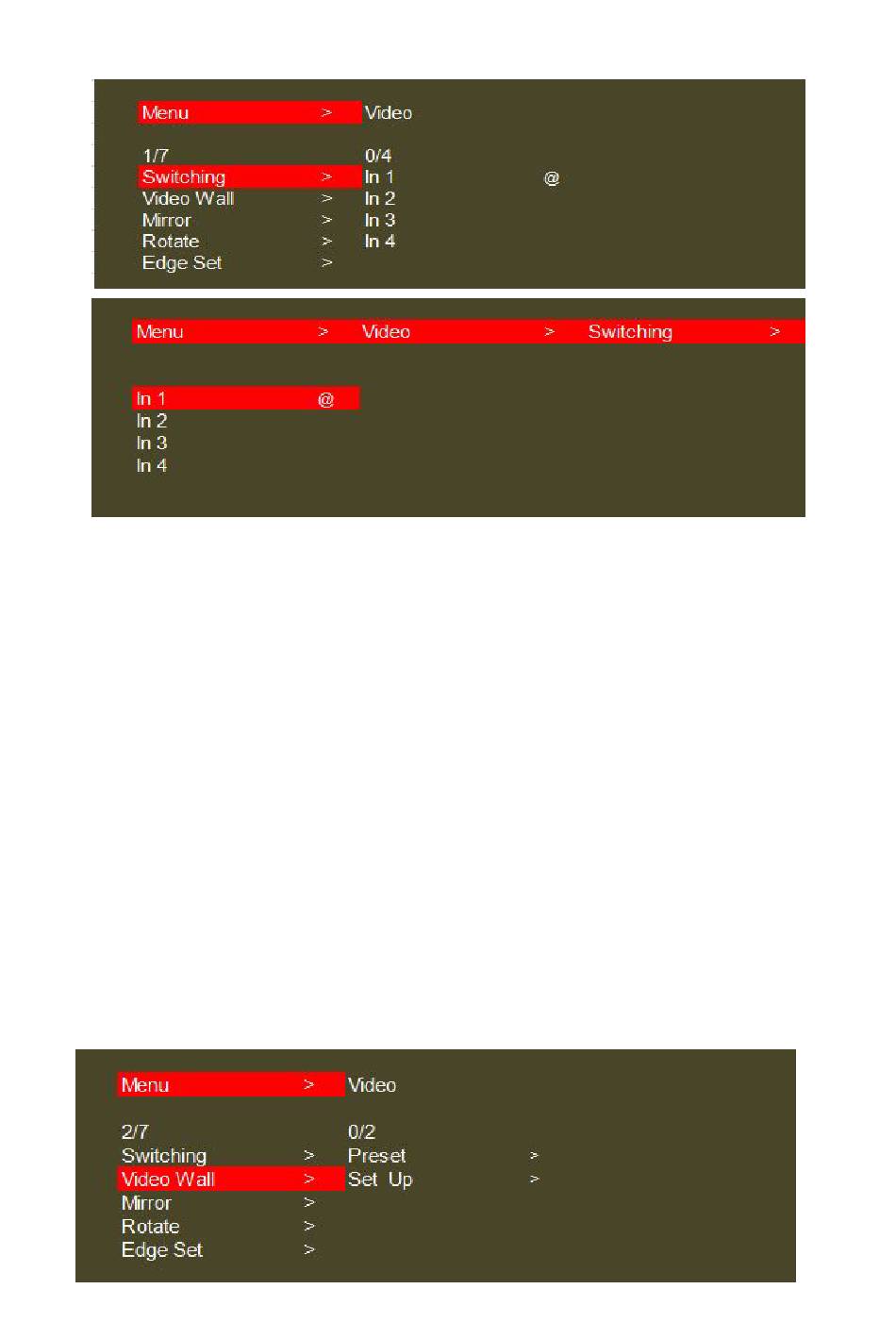

Video Switching Interface

7.2.2 Video Wall Setting

Press the "Left/Menu" button to enter menu. Press "Enter" to select "Video" >
"VideoWall" sub menu.
"Preset": Includes 17 common Video Wall formats, including 2x2, 1x4, 4x1 & 4x2.
The active video wall configuration is identified with the "@" ampersand icon.
"Set Up": Press the "Right/Enter" button to enter the "Set Up" submenu.
Press the "Up" or "Down" buttons to navigate & "Enter" button to confirm changes.
The active setting is indicated by the "@" ampersand icon.
"H_NUM " represents the total number of displays on the horizontal axis.
"V_NUM" represents the total numbers of display on the vertical axis.
"Cascade" represents which cascade layer the device is set to. (Supports 12 cascade
layers in total. In cascade mode, the input port of the second device should be
connected to the HDMI loop out of the first device.)
"Port Map" indicates which routing/map the HDMI output follows.
