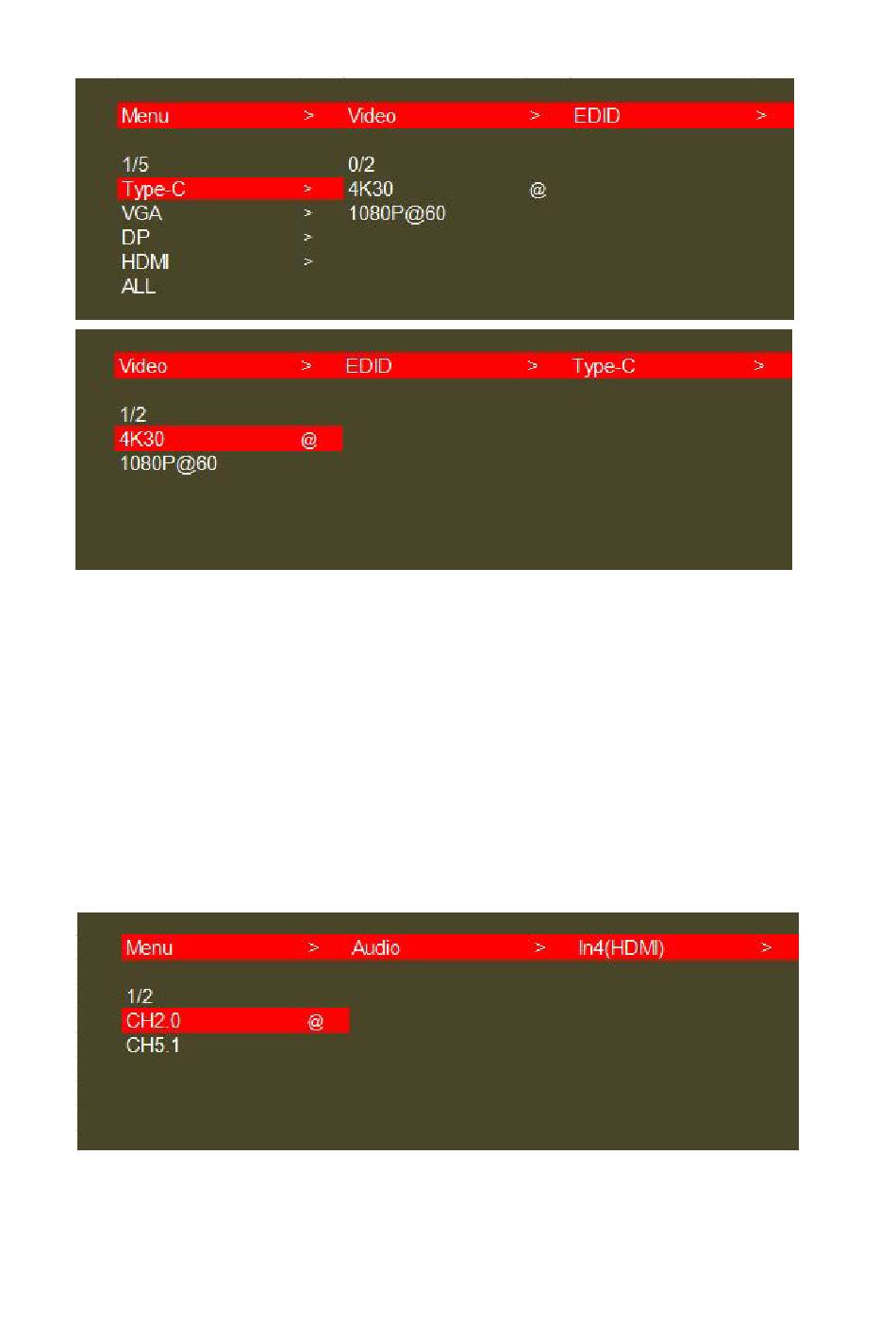

EDID Interface

7.3 Audio Setting via Front Panel Buttons

7.3.1 Audio Input Setting

Press the "Left/Menu" button to enter menu. Press "Down" & "Enter" to select
"Audio" > "In" sub menu.
Press the "Up" or "Down" buttons to select desired setting & press "Enter" to confirm.
The active setting is indicated by the "@" ampersand icon.
For HDMI input, 2 audio formats are available CH2.0 | CH5.1. Default is PCM2.0.
Audio Input Setting Interface

7.3.2 Audio Output Setting

Press the "Left/Menu" button to enter menu. Press "Down" & "Enter" to select
"Audio" > "Out" sub menu.
