- Page 1 V1.0 USER MANUAL HDMI Audio Embedder 18G JTD-3132 | JTECH-18GAEV2 J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/3132 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
- Page 4 Table of Contents What’s Included Ports and Interfaces Connection Diagram Introduction Features Specification Troubleshooting Maintenance Warranty Mail-In Serivce Limited Warranty Limits and Exclusions...
- Page 5 1. What’s Included...

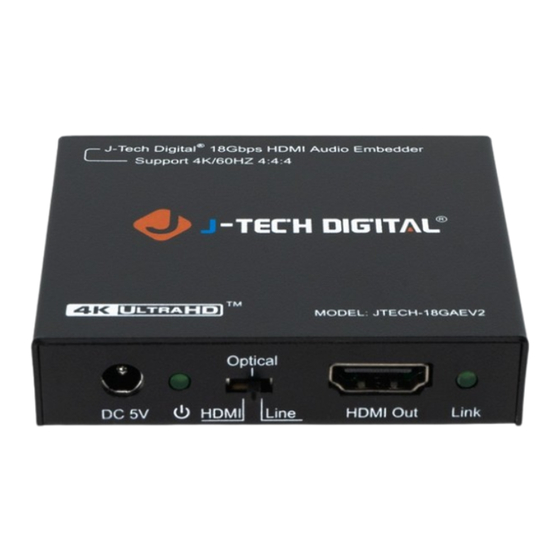

- Page 6 2. Ports and Interfaces 1. DC/5V: DC 5V IN port : Power LED Indicator 3. HDMI/Optical/Line: User can select input audio format according to HDMI, Optical, or Line HDMI: Select the HDMI audio to HDMI output Optical: Select the Optical audio to HDMI output Line: Select the line 3.5mm audio to HDMI output 4.
- Page 7 3. Connection Diagram...
- Page 8 4. Introduction The HDMI™ Audio Embedded Converter Supports 4K@60Hz 4:4:4 could embed audio signals from digital optical or analog stereo Line audio to HDMI™ output. Further, both input and output HDMI™ support video resolution up to 4K@60Hz 4:4:4. It supports High Dynamic Range (HDR) signal pass through and HDMI™...
- Page 9 Storage Humidity 5% to 90% RH non-condensing Power Supply DC 5V Power Consumption (Max) Splitter Unit Cert FCC, CE, RoHS Power Supply Cert FCC, CE, RoHS Power Adapter Standard US, EU, UK, AU Standard etc. Dimension (LxWxH) 88 x 59.5 x 23mm Net Weight 126g User Manual...
- Page 10 9. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 10. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product.
- Page 11 adjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage that is attributed to acts of God. There are no express warranties except as listed under “Limited Warranty Coverage”. The warrantor is not liable for incidental or consequential damages resulting from the use of this product or arising out of any breach of this warranty.
- Page 12 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
