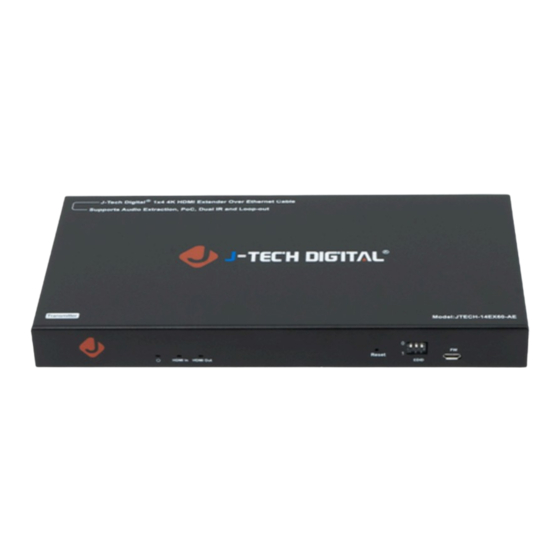

- Page 1 V1.0 USER MANUAL 4K 60Hz 1x4 HDMI Splitter Extender Up To 196ft JTD-3145 | JTECH-14EX60-AE J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/3145 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents Description Features Package Contents Specifications Product Requirements HDCP Upgrade Connection Maintenance Warranty Mail-In Serivce Limited Warranty Limits and Exclusions... -
Page 5: Description
1. Description JTECH-14EX60-AE is a 196ft. (60m) extender with 1 HDMI input, 1 HDMI loop out and 4 UTP output. It supports 4K 60Hz. The 1x4 extender has the ability to equalize and amplify to ensure that the HDMI signal is transmitter without loss of quality. This splitter can be used for digital entertainment centers, retail and display websites, set-top boxes, security rooms, data control centers, conference rooms, schools, and enterprise training environments. -
Page 6: Specifications
4. Specifications Operating Temperature Range -5°C ~ 40°C (+23°F ~ 140°F) Operating Humidity Range 5 to 90% RH (No Condensation) Input Video Signal 0.5 - 1.0 volts P-P (TTL) Input DDC Signal 5 volts p-p (TTL) Data Transfer Speed Rate 18Gbps (Maximum) Input Port 1 x HDMI... - Page 7 EDID 1080P60 2.0CH ~ 4K@60 2.0/5.1CH 1 x USB cable for upgrade Rear Panel: Type Function HDMI In HDMI A port. Supports up to 4K@60Hz HDMI Loop 1 x HDMI Loop output CAT5e/6 4 x UTP ports to transmit signal to the receivers IR IN 1 x 3.5mm Port.
-
Page 8: Hdcp
HDMI Output 1 x HDMI output to connect to the display SPDIF 1 x SPDIF output Audio Out 1 x Analog output 1 x USB cable for upgrade EDID Switch Settings This splitter supports EDID management through a 3-pin dip switch: Up dial stands for 0;... -
Page 9: Upgrade
7. Upgrade 1. Connect between PC and product by USB cable, and open upgrade tool “UART_ISP_V1.7.exe” 2. Click “Refresh”, and choose correct COM 3. Baud rate: 115200 4. Type “A1” into port, choose the firmware for upgrade 5. Click “UPDATA” until successful... -
Page 10: Connection
8. Connection 9. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 10. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. -
Page 11: Mail-In Serivce
products purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service. 11. Mail-In Service When shipping the u nit, carefully pack and send it prepaid, adequately insured, and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. - Page 12 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
