Instructions:
1. All instructions begin with "#".
Instruction header c% : d---operation parameter, I---operation lock,
2. "_" means underline, indispensable.
Primary parameter d% : 0---all outputs, 1-x---indicates outputs (1-9), secondary
parameters are the same as the first.
3. A space should be added between the instruction header, first-level parameters and
attribute parameters. Please check the instruction sheet for property parameters.
Note: "/" indicates that this parameter is not used.
 For RS232 command details, please refer to the document found on the CD.

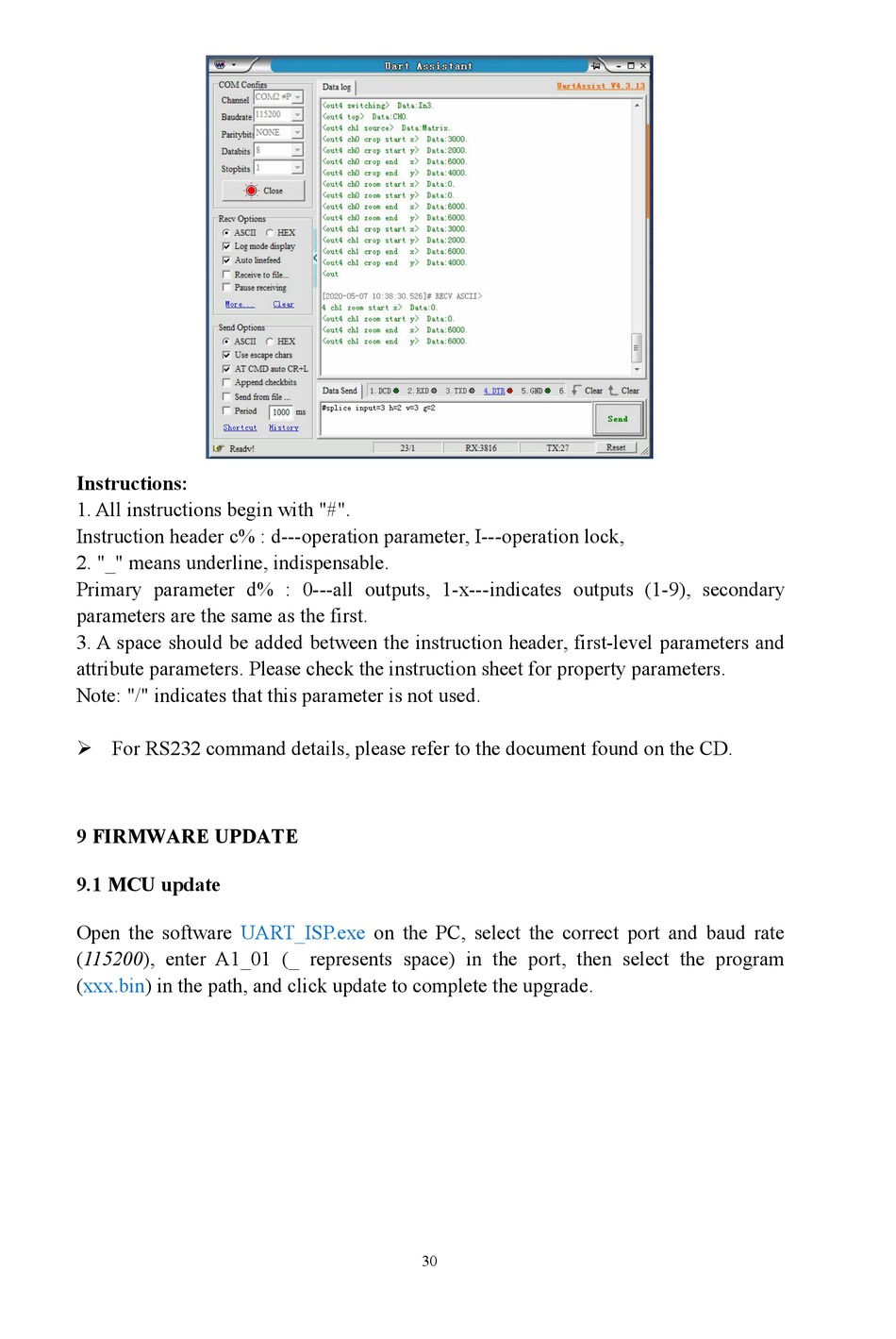

9 FIRMWARE UPDATE

9.1 MCU update

Open the software UART_ISP.exe on the PC, select the correct port and baud rate
(115200), enter A1_01 (_ represents space) in the port, then select the program
(xxx.bin) in the path, and click update to complete the upgrade.
30
