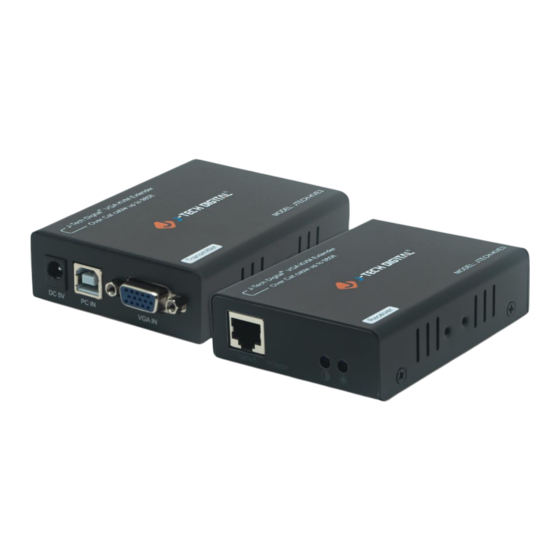

Ports and Interfaces Transmitter Receiver ① DC 5V: DC 5V Power Adapter In ② PC IN: Connect to PC Host in via USB-A to USB-B Cable ③ VGA IN: Connect to Input Source Device via VGA Male Cable ④ CAT5e/6: Connect to CAT5e/6 cable between transmitter and receiver ⑤...
Connection Diagram Specifications Input Ports VGA x 1 (DB15 Female) | USB-A x 2 Output Ports VGA x 2 (DB15 Female) | USB-B x 1 Extension Distance 985 Feet (VGA & USB) USB Transmission rate 480 Mbps USB Standard USB 2.0 Vertical Frequency Range 60 / 75 / 85Hz 640 x 480 | 800 x 600 | 1024 x 768 | 1280 x 720 | 1280 x...
Troubleshooting Problem Cause Solution Please check if the power adapter is connected properly A power adapter is not Power LED is off and product and securely on both properly connected or VGA is not working transmitter and receiver. source device is not on Ensure the VGA source device is powered on Please use standardized VGA...
Extended Warranty With the registration of supported J-Tech Digital products, you extend the current warranty by 6 months. This extension is added to the warranty that starts at the purchase date of the device supported. Total product warranty with the extended period will equate to a total of 18 months of warranty from the date of purchase.
