Summary of Contents for J-Tech Digital JTD-3033

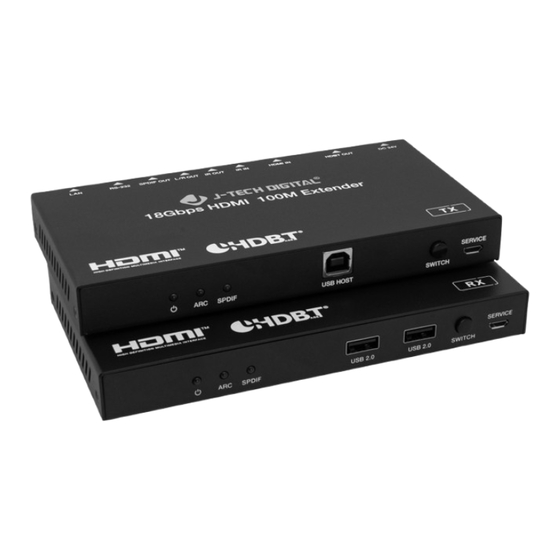

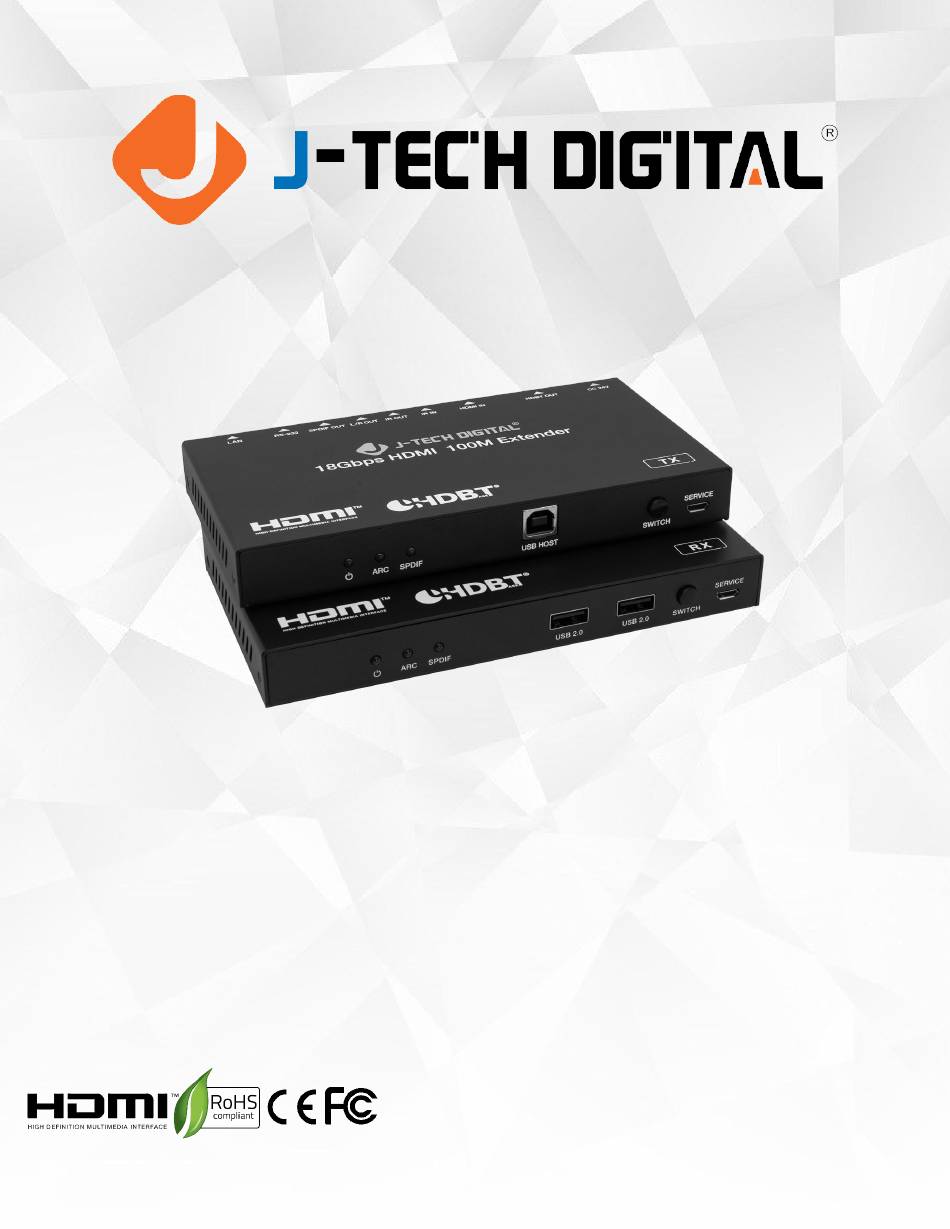

- Page 1 V1.0 USER MANUAL 4K60Hz HDMI KVM Extender 70M w/ ARC, Ethernet, USB JTD-3033 | JTECH-4KEX-AUE J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/3033 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Operation Control and Functions 5.1 Front Panel 5.2 Rear Panel 5.3 Audio Signal Output Switching 5.4 IR Pin Definitions 6. Application Example 7. Maintenance 8. Warranty 9. Mail-In Services 10. -
Page 5: Introduction
1. Introduction This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft / 100m between transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. The Transmitter supports ARC function and local audio extract. -
Page 6: Specifications
4. Specifications Technical HDCP Compliant HDCP 2.2 / 1.4 Video Bandwidth 18Gbps Video Resolution 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K 2K 50/60Hz 4:2:0 4K 2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p. 480i All PC resolutions including 1920 x 1200 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4) - Page 7 Receiver Inputs: 1 × HDBT IN [RJ45, 8-pin female] 1 × SPDIF IN [S/PDIF] Outputs: 1 × HDMI Type A [19-pin female] 1 × LAN [RJ45] Control: 1 × IR IN [3.5mm Stereo Mini-jack] 1 × IR OUT [3.5mm Stereo Mini-jack] 1 ×...
-
Page 8: Operation Control And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description POWER LED Red LED is on when the Transmitter is working. LED is off when the Transmitter is on standby ARC LED Green LED is on when ARC function is turned on SPDIF LED Green LED is on when SPDIF OUT port outputs the audio signal returned from SPDIF IN on the Receiver. -
Page 9: Rear Panel
Name Function Description Data Signal Indicator Illuminate: HDMI signal with HDCP. (on the right side of the Flash: HDMI signal without HDCP. HDBT OUT port) Dark: No HDMI signal. HDMI IN HDMI source input. IR IN IR input port for receiving the signal of IR remote. IR OUT IR output port for control of source device. -
Page 10: Audio Signal Output Switching
Name Function Description SWITCH Press the button to switch the output audio signal source for SPDIF OUT and L/R OUT port. SERVICE Port Firmware update port. DC 24V input for 24V 1A power adapter. DC 24V Note that the extender supports PoC function, it means that either transmitter or receiver is connected to 24V/1A power supply, the other doesn’t need power supply. -
Page 11: Ir Pin Definitions
ARC LED SPDIF LED Audio Output Logic The SPDIF OUT, L/R OUT and HDMI IN ports of the Transmitter simultaneously output the audio signal returned from HDMI (display device) on Receiver. The SPDIF OUT and L/R OUT ports output the audio signal returned from SPDIF IN on Receiver. -
Page 12: Application Example
6. Application Example... -
Page 13: Maintenance
7. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 8. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 14 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
