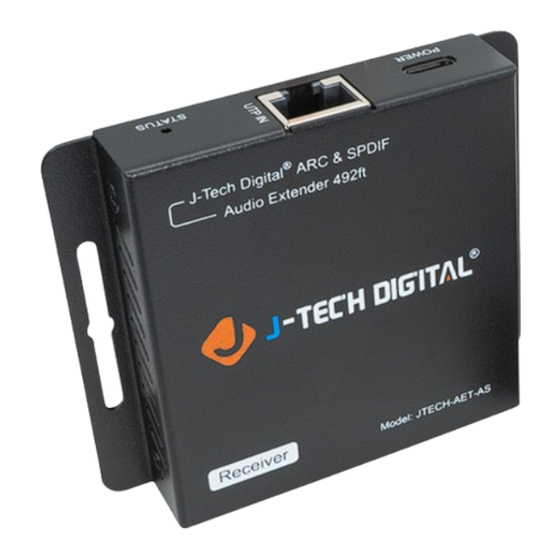

- Page 1 V1.0 USER MANUAL ARC & SPDIF Audio Extender 492ft. JTD-3081 | JTECH-AET-AS J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/3081 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents What’s Included Ports and Interfaces Connection Diagram Introduction Features Specifications Troubleshooting Maintenance Warranty Mail-In Services Limited Warranty Limits and Exclusions... -
Page 5: What's Included
1. What’s Included Main Unit TX & RX USB Power Adapter USB-A to USB-C Power x 2pcs Cable x 2pcs 2. Ports and Interfaces... - Page 6 Transmitter Receiver Power: USB-C DC 5V Power In UTP Out: Connect to RJ45 OUT via CAT5e/5 cable Status: Status LED Indicator On: The transmitter is working properly but the connection between the transmitter and receiver is not successful Blinking: The transmitter is working properly, and the connection between the transmitter and receiver is successful Off: The transmitter is not working properly SPDIF In: Connect to Input Audio Sources via Optical cable...
-
Page 7: Connection Diagram
3. Connection Diagram 1. ARC Mode 2. SPDIF Mode... -
Page 8: Introduction
4. Introduction The product is an extender for both HDMI ARC and SPDIF audio pass-through. It supports CEC pass-through between HDMI ARC input port and ARC output port for creating handshake for ARC, for TV‘s that don‘t support HDMI ARC capabilities. This extender provides and independent SPDIF audio pass-through channel, and SPDIF audio can be transmitted from the SPDIF In port of the transmitter to the SPDIF Out port of the receiver. -
Page 9: Troubleshooting
Storage Humidity 5% to 90% RH non-condensation Power Supply DC 5V 1A Power Consumption (Max) TX / RX: 0.4W Extender Unit Cert FCC, CE, RoHS Dimensions (L x W x H) TX / RX: 83.5 * 69.5 * 15.8mm Net Weight TX / RX: 110g Material Metal... -
Page 10: Mail-In Services
period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor. During the “Labor” limited warranty period, there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. - Page 11 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
