NetWay2ESWPN

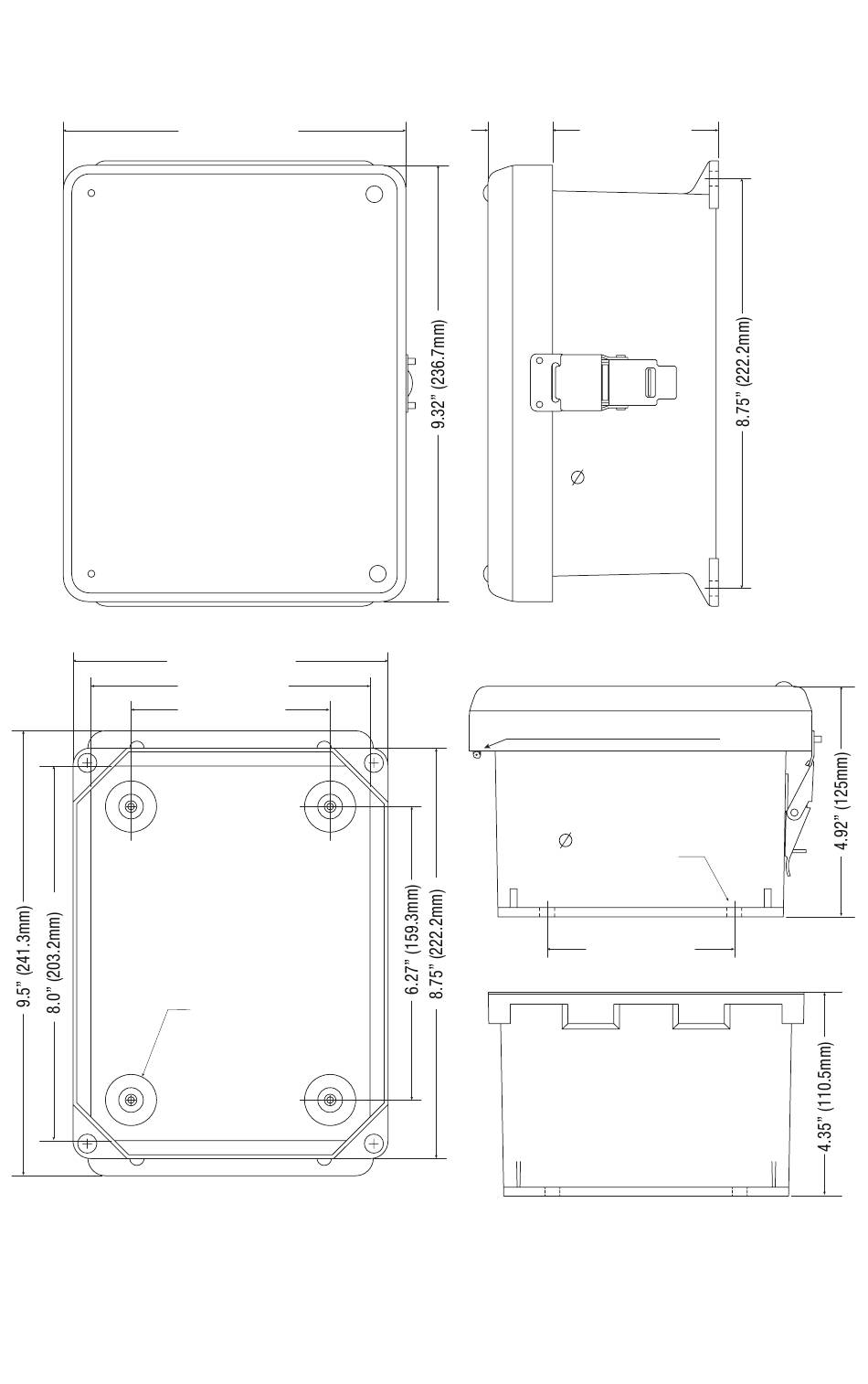

Mechanical Drawing and Dimensions (H x W x D approx.):
9 .5" x 7 .32" x 4 .92" (241 .3mm x 185 .9mm x 125mm)
1.38"
7.32" (185.9mm)
3.54" (89.9mm)
(35.1mm)
316 Stainless Steel
Padlock Latch Attached
0.375" (9.5mm)
Padlock Eye
6.75" (171.5mm)
6.0" (152.4mm)
4.25" (108mm)
304 Stainless Steel Piano Hinge
0.312" (7.9mm) TYP
4 Places
4.0" (101.6mm)
10-32 X 0.25" (6.4mm)
4 Places
NetWay2ES Series
- 7 -
