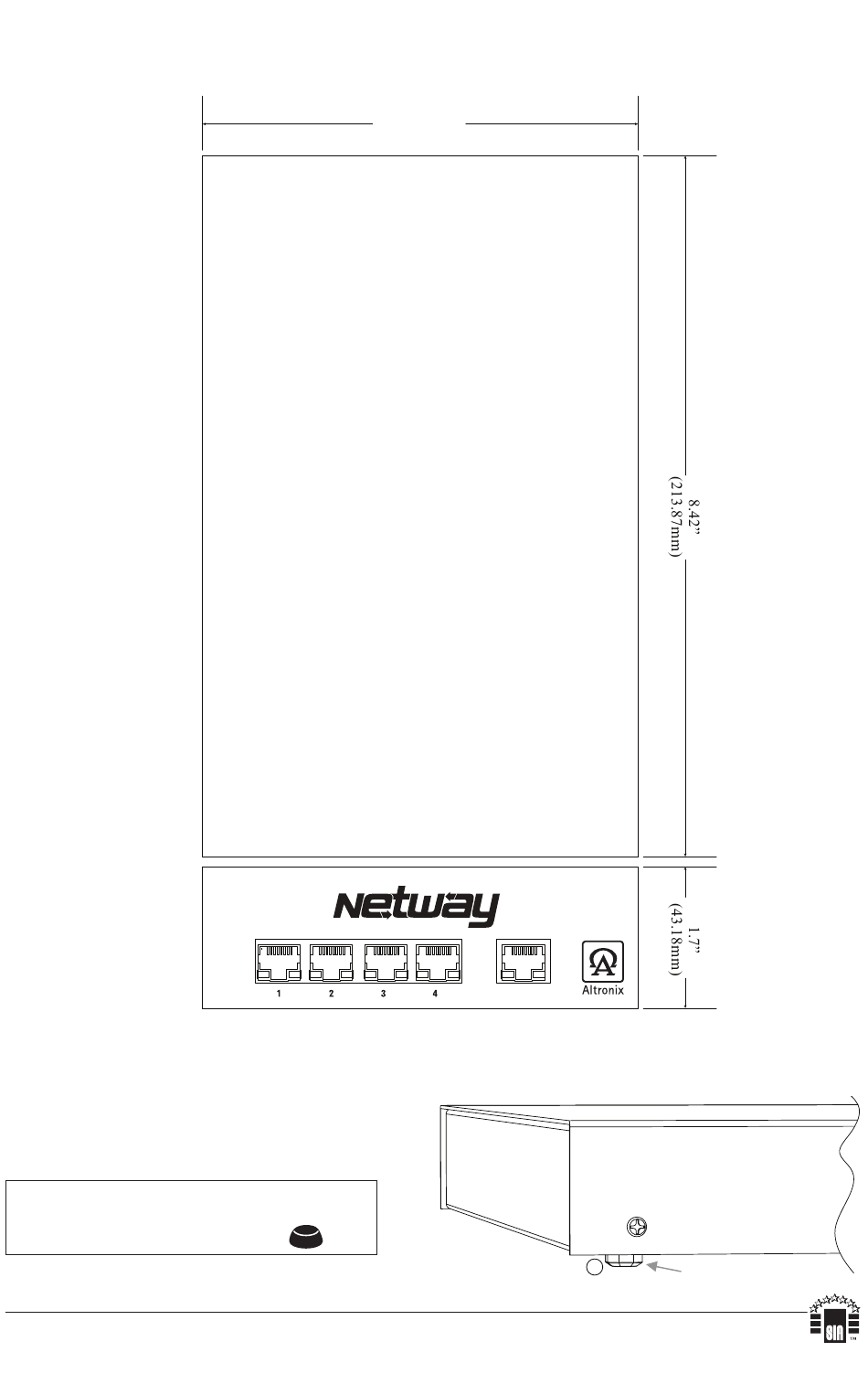

NetWay4ES Chassis Mechanical Drawing & Dimensions
Fig. 3
Shelf Installation
1-
Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 4) .
2-
Place unit in desired location .
Mounting Hardware (Included):
Four (4) rubber pads
Altronix is not responsible for any typographical errors .
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www .altronix .com | e-mail: info@altronix .com | Lifetime Warranty | Made in U .S .A .
IINetWay4ES
- 8 -
(H x W x D approx.):
1 .7" x 5 .23" x 8 .42" (43 .2mm x 132 .8mm x 213 .9mm)
(132.84mm)
PoE
Output
10/100
Base-T
A
Fig. 4
B
C
5.23"
INPUT
D27R
Left side
C
Rubber Feet
NetWay4ES / NetWay4ESK
