Simulate process widget
The Simulate Process can be used in manual and auto mode. It can be used to
test the welding program. The power source simulates a real welding process by
using the welding simulation signal.

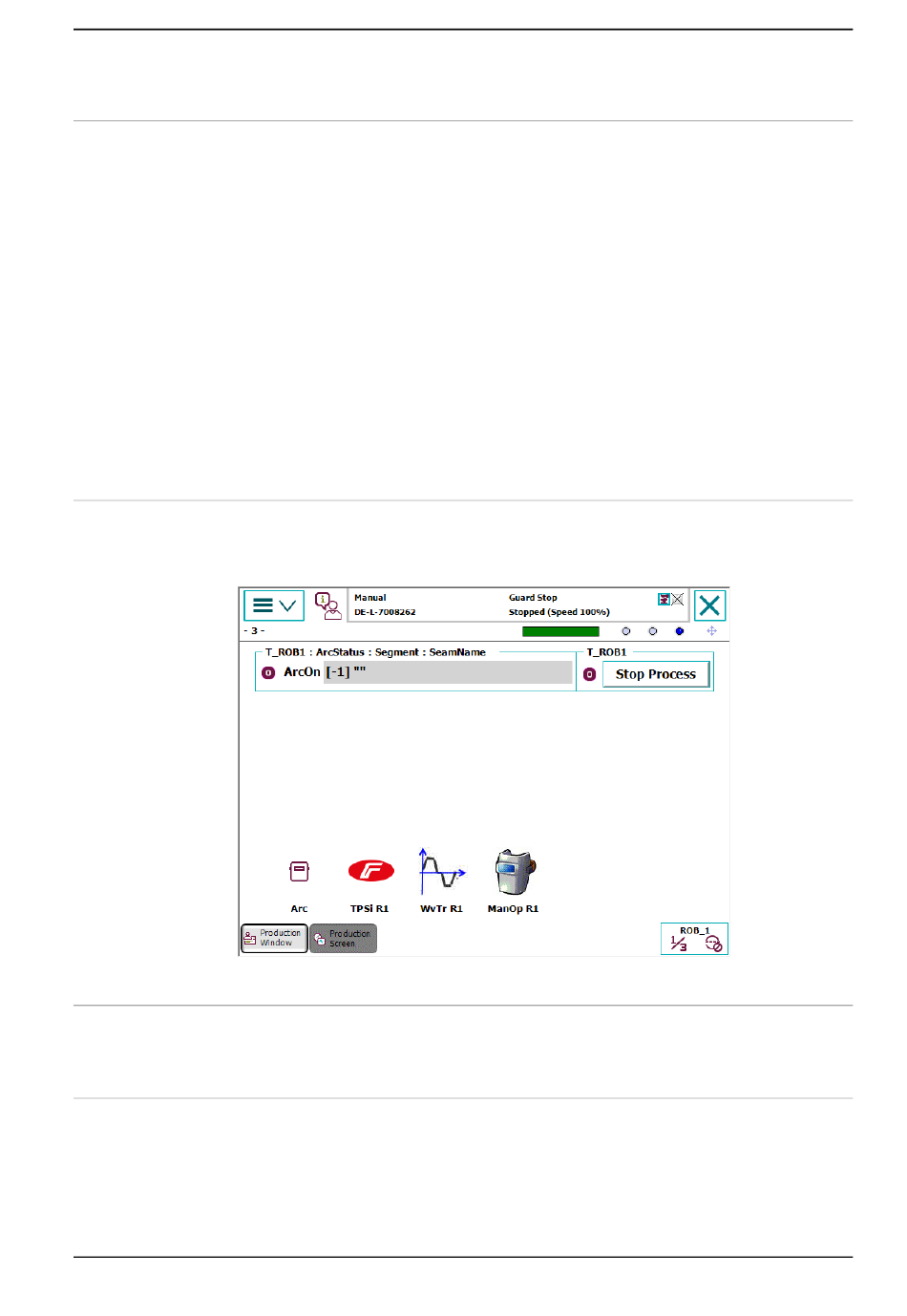

ArcStatus widget
The ArcStatus widget has a status LED to indicate active welding process. Also,
the current seam name and segment is shown in the widget.
xx1900002437
Stop Process Widget
The Stop Process widget can be used to stop the current welding process. This
is mainly used for testing and should not be used in real production.
The widget area on the FlexPendant
The widget area is a 10 x 4 grid of cells. Each cell is 60 x 60 pixels. The smallest
space a widget can occupy is one cell.
Application manual - Fronius TPS 320i/400i/500i/600i with RI-FB inside/i interface
3HAC065012-001 Revision: C
• A programmed welding path can therefore be travelled without any welding
taking place.
• All signals are set, just like the real thing (with no timing interdependencies
or actual values).
- Arc stable
- Process active
- Main current signal
- No arcs are ignited
- No wire electrode is fed
- The gas solenoid valve is not activated
© Copyright 2004-2021 ABB. All rights reserved.
6 Customize widget screen
