End parameters

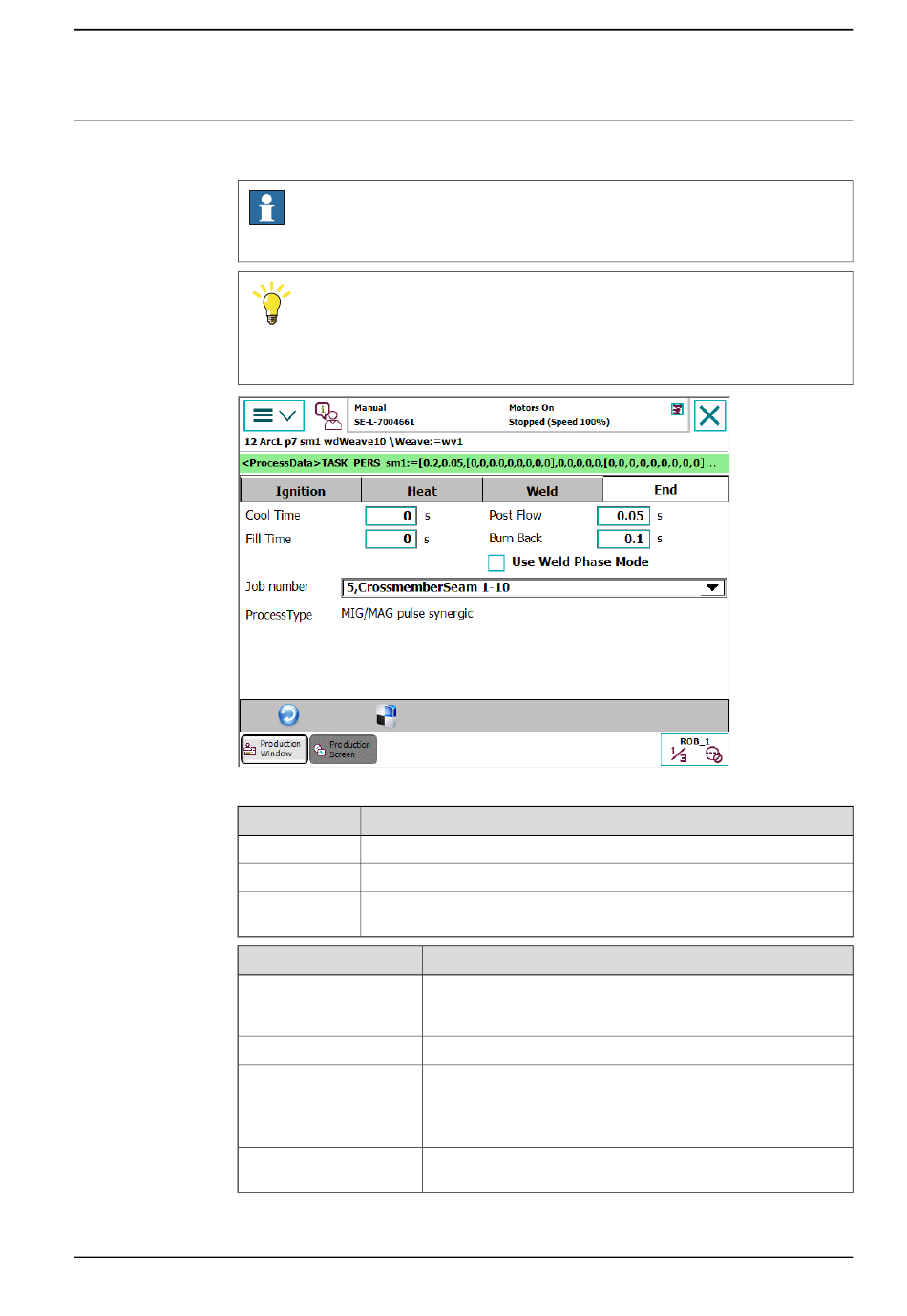

Tap the End tab to view or modify the end phase parameters.
xx1900002408
Button
Refresh
Confirm
Cancel
Parameter
Cool Time
Fill Time
Burn Back (Wire Retract
correction)
Post Flow
Application manual - Fronius TPS 320i/400i/500i/600i with RI-FB inside/i interface
3HAC065012-001 Revision: C
Note
The end phase parameters can only be modified in manual mode.
Tip
To copy the current weld phase mode settings, toggle Use Weld Phase Mode
off, on, and then off again.
Description
The blue refresh button is used to return to the Weld Phase tab.
The green check button is used to confirm any changes made.
The red cancel button is used to cancel any changes made and return
to the previous values.
© Copyright 2004-2021 ABB. All rights reserved.
Description
The time (in seconds) during which the process is stopped, al-
lowing the weld to cool before other end activities such as crater
fill and burn back take place.
The crater-filling time (in seconds) at the end phase of the weld.
The values apply to the MIG/MAG standard synergic, MIG/MAG
pulse synergic, MIG/MAG PMC and MIG/MAG LSC welding
processes
The value can be applied between 0 – 10 mm.
The time (in seconds) for purging with protective gas after the
end of the process.
4 Weld editor interface
4.3 Weld editor in Job mode
Continued
Continues on next page
49
