Jumper Settings

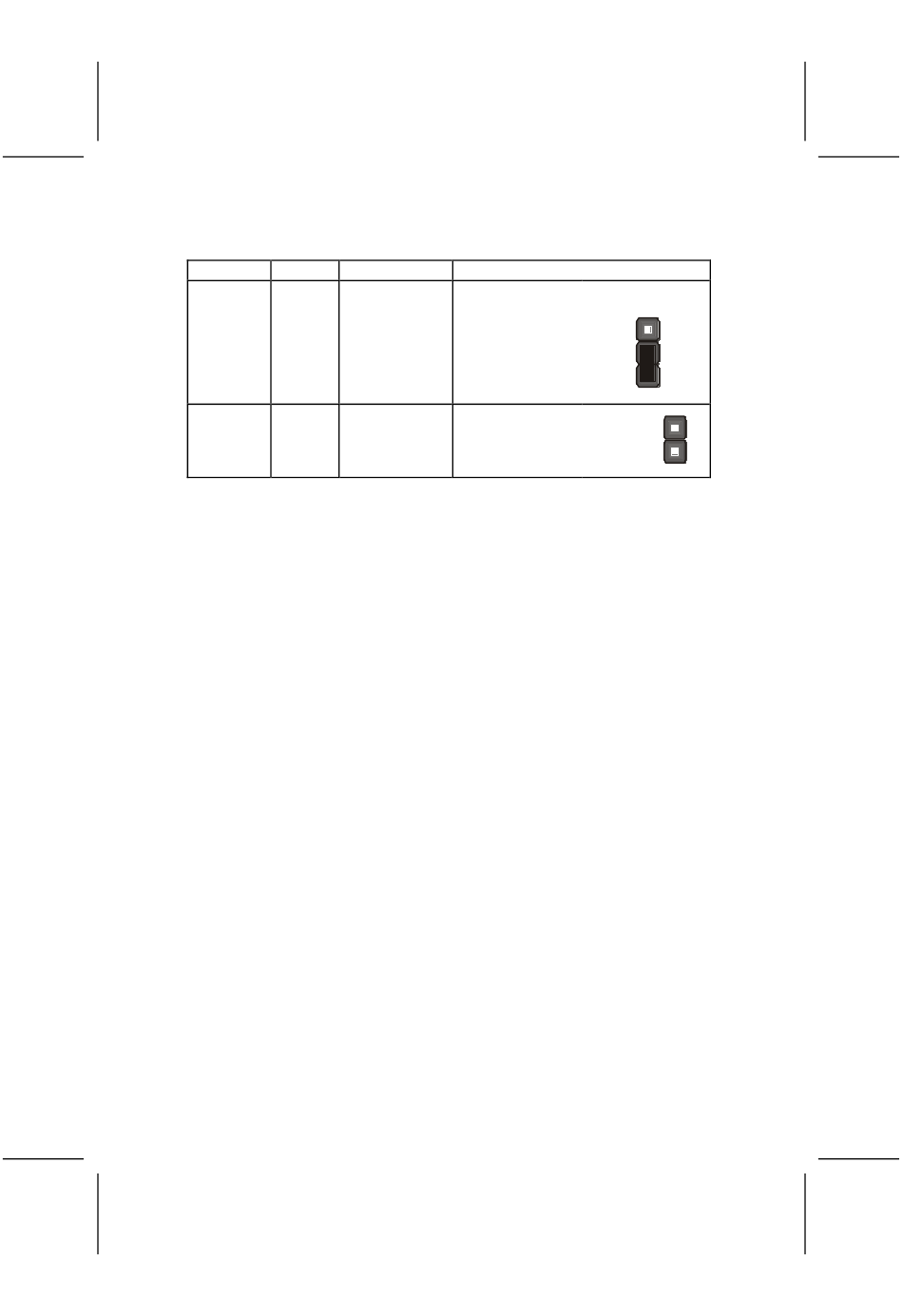

Jumper Type Description
JP1 3-pin Clear CMOS
JP2 2-pin BIOS flash
protection
Jumper 1 – enables you to clear the BIOS:
1. Turn the system off.
2. Short pins 1 and 2 on jumper 1.
3. Return the jumper to the normal setting.
4. Turn the system on. The BIOS is returned to the de-
fault settings.
Jumper 2 – enables you to prevent the BIOS from being up-
dated (flashed). Short the jumper to disable if you are going to
update your BIOS. After updating the BIOS, return it to the
enabled setting (open). For instructions on updating the BIOS
refer to Chapter 3.
Setting (default)
1-2: Normal
JP1
2-3: Clear
1
Short: Disable
JP2
Open: Enable
11
