The Panel Connectors

The panel connectors provide a standard set of switch and
LED connectors commonly found on ATX or Micro ATX cases.
Refer to the following tables for information:
Panel1
Device Pins
Empty 10
N/C 9
Power
6, 8
ON/OFF
Reset
5, 7
Switch
Green LED
2, 4
Indicator
HDD LED +1, -3
LPANEL
Device Pins
Reset
13, 14
Switch
Case
+9 ~ 12
Speaker
Power
5, 6
Switch
Power LED +4
Green
-3
Power LED
Yellow
-2
Power LED
HDD LED +1, -8
Note: The plus sign (+) indicates a pin which must be con-
nected to a positive voltage.

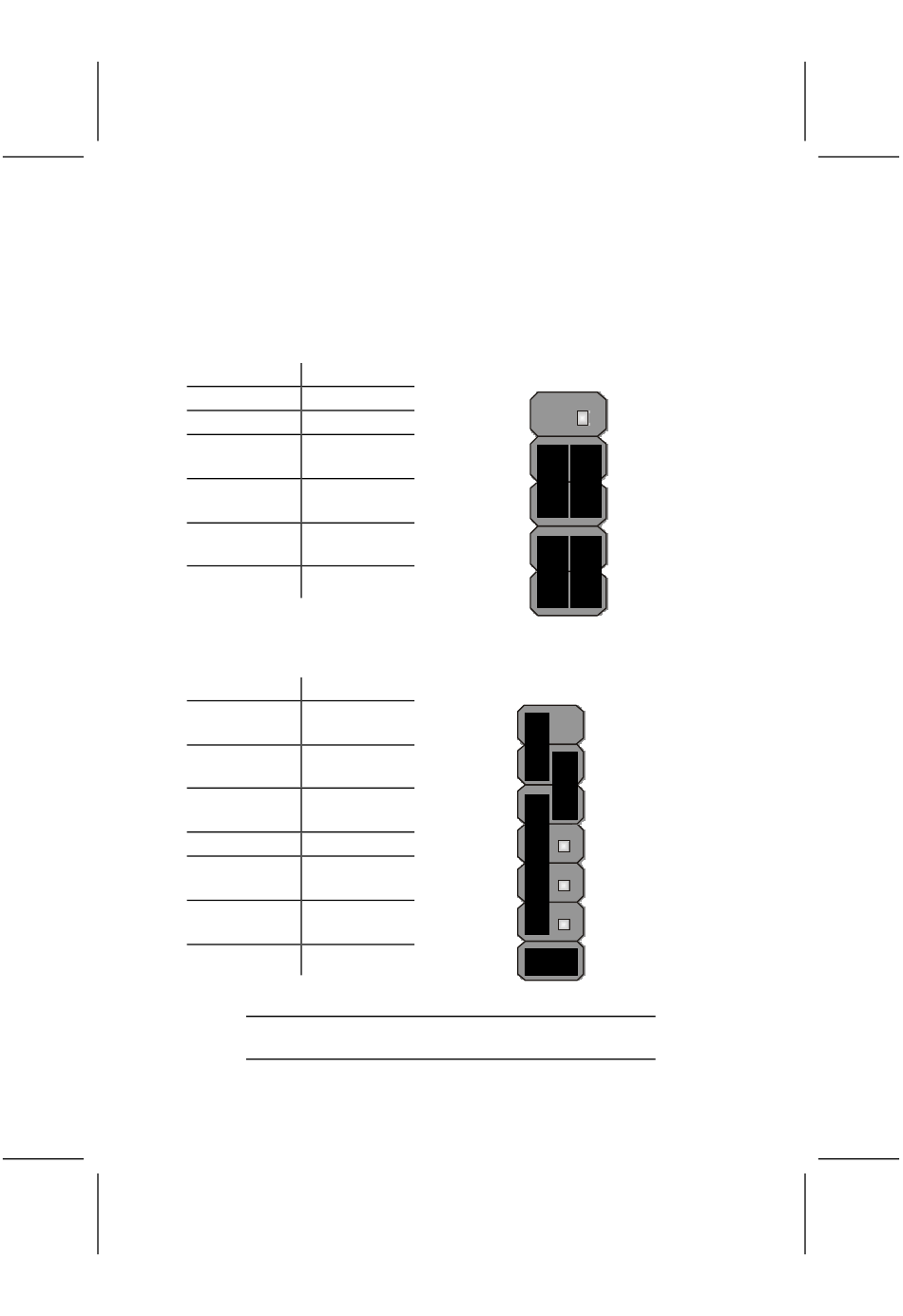

10 9
Empty N/C
(Pin 10) (Pin 9)
Reset Switch
Power Switch
(Pins 5, 7)
(Pins 6, 8)
Green LED HDD LED
(Pins 2, 4) (Pins 1, 3)
2 1
14 7
Empty
(Pin 7)
Reset Switch
(Pins 13, 14)
Power Switch
(Pin 5, 6)
Power LED
(Pin 4)
Case Speaker
(Pins 9 ~ 12)
Green Power LED
(Pin 3)
Yellow Power LED
(Pin 2)
HDD LED
(Pins 1, 8)
8 1
