Checking Jumper Settings; Jumper Settings - Elitegroup Computer Systems K7AMA3 Manual

Checking Jumper Settings

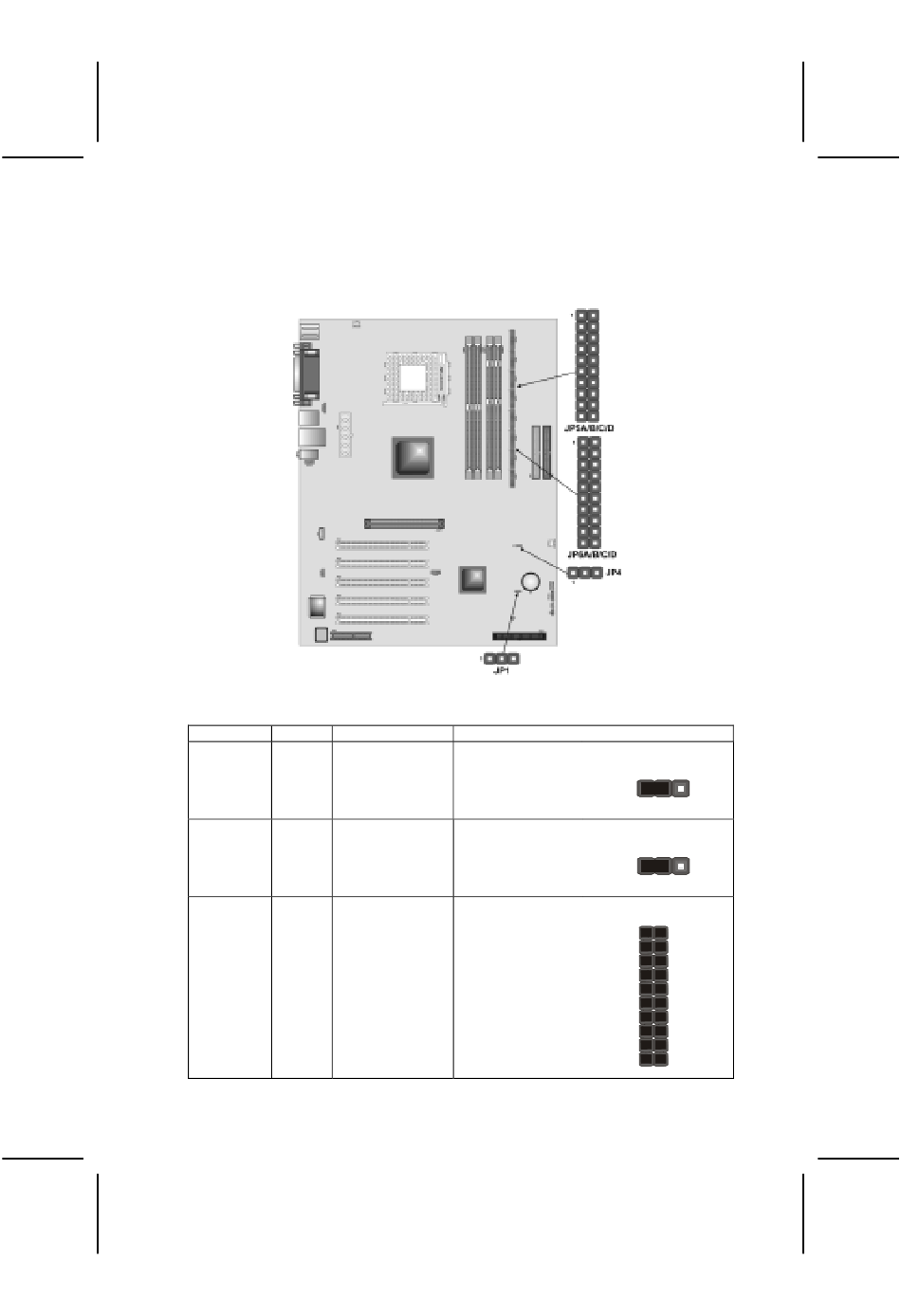

The following illustration shows the location of the mainboard jumpers. Pin 1 is
labeled.

Jumper Settings

Jumper Type Description
JP1 3 pin Clear CMOS
JP4 3 pin CPU frequency
select
JP5A 80 pin DDR/SDR
JP5B DRAM Type
JP5C Selector
JP5D
Setting (default)
1-2: Normal
2-3: Clear
1-2: 100MHz
2-3: 133 MHz
Short all
JP5A/B/C/D
JP5A/B/C/D: DDR
memory
Open all
JP5A/B/C/D: SDR
memory
8
JP1
1
JP4
1
