Eurotrac W11E Operation Manual page 25

TECHNICAL PERFORMANCE PARAMETER
R To protect device top height
S Angle of max lifting height
T Max tilting angle
U Turning corner of level position surface
V Departure angle
W Turning corner
X Maximum turning radius
Y Out edge radius
Z Inner turn radius

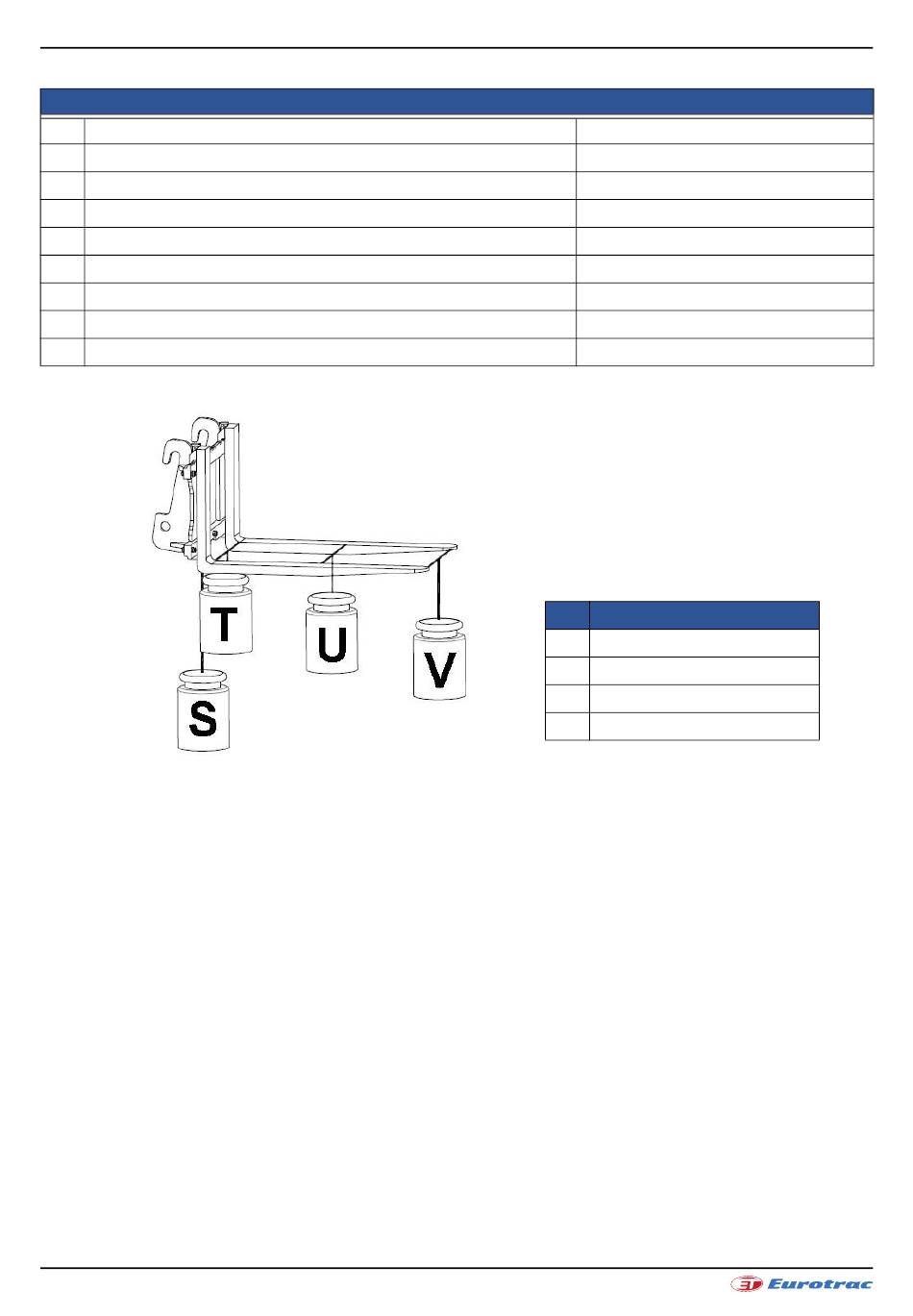

Load center distance = 400, load capacity of W11E cargo fork:
Page 25/72
W11E | Operation manual
2268
48°
45°
48°
23°
45°
2530
2220
1110
W11E
S 860kg
T 800kg
U 600kg
V 480kg
