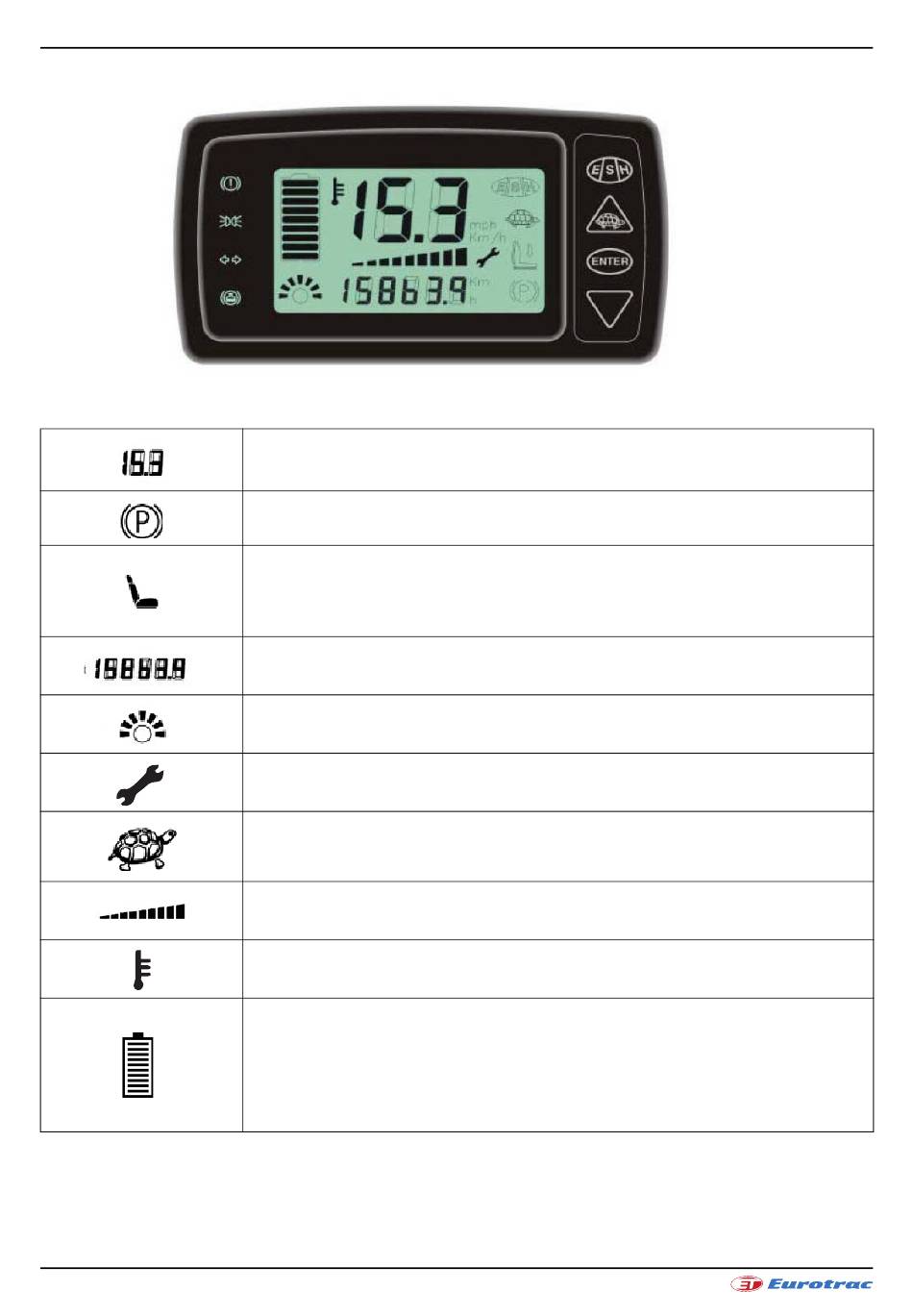

SME Dashboard
Wheel loader travel speed (km/h)
Hand brake switch.
This indicator lights when the hand brake is pulled up.
Safety seat switch.
If the seat switch is not closed, the dashboard will display the seat icon.
The seat switch does not pull in and the wheel loader cannot work until the seat
switch is closed.
Working hour meter (odometer).
Steering angle showing the position of the rear wheel.
Maintenance time prompt.
Prompt the user to the maintenance time.
Slow operation.
This light is on, indicating that the vehicle is operating in the slow mode, and the
speed and lifting speed are reduced.
Accelerator pedal position (0 to 9 grids).
Motor temperature overheat alarm.
Battery power is indicated by 9 stripes:
9 = Fully charged
0= Empty
If the battery is completely discharged there is no stripe showed and the
meter will display fault code 12.
The battery must be charged when the display shows one stripe.
