Joystick For Auxiliary Hydraulics - Eurotrac W11E Operation Manual

2.1.2

Joystick for auxiliary hydraulics

WARNING
Hazard due to hydraulic system overheating! Ensure that the auxiliary hydraulics joystick is always in the "zero
position" when the auxiliary hydraulics are not required. Lock the auxiliary hydraulics joystick when it is not
required. (To do this, press the joystick down firmly until it locks into place. To unlock, you must pull the joystick
back up firmly.) Avoid soiling. Ensure that the hydraulic connections are clean!

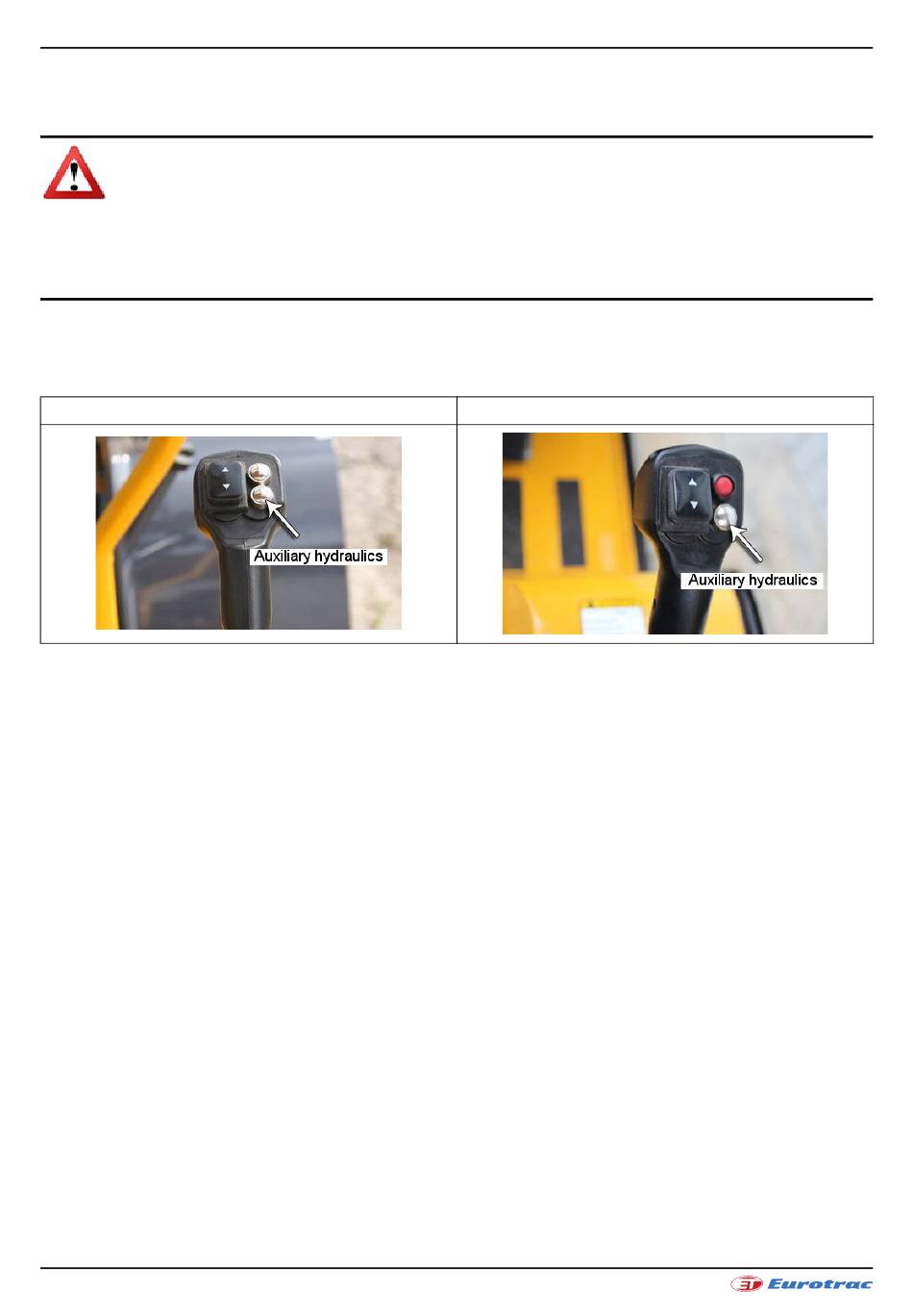

The additional hydraulics on the front arm: press the auxiliary hydraulics button and move the joystick to the left
and right. The auxiliary hydraulics can be very precisely controlled. Take care to use the joystick carefully.
Eurotrac W11
• Push the joystick to the left (and simultaneously press the auxiliary hydraulics button):
The left connection is the pressure side, the right is the return.
• Push the joystick to the right (and simultaneously press the auxiliary hydraulics button):
The right connection is the pressure side, the left is the return.
This may vary from model to model. Please always check this before using the wheel loader with optional
equipment.
Auxiliary hydraulics
This can be operated using an additional lever with switching valve. Let yourself be instructed by qualified personnel
and complete this manual here.
Replace attachment
1. Push the small handle of multi-way valve to the left to retract the locking lever.
2. Lower the working device and tilt it forward to the appropriate position.
3. Connect the hook in the attachment.
4. Hoist and tilt working device.
5. Push the small handle of the multi-way valve to the right to make the locking lever extend and insert the
mounting hole under the fitting.
6. The two three-way valve rotates 90°, cut off the lock cylinder oil.
